FRONT WHEEL (MODEL L/M/N/P/R/S)
RM80X 1992 (N)

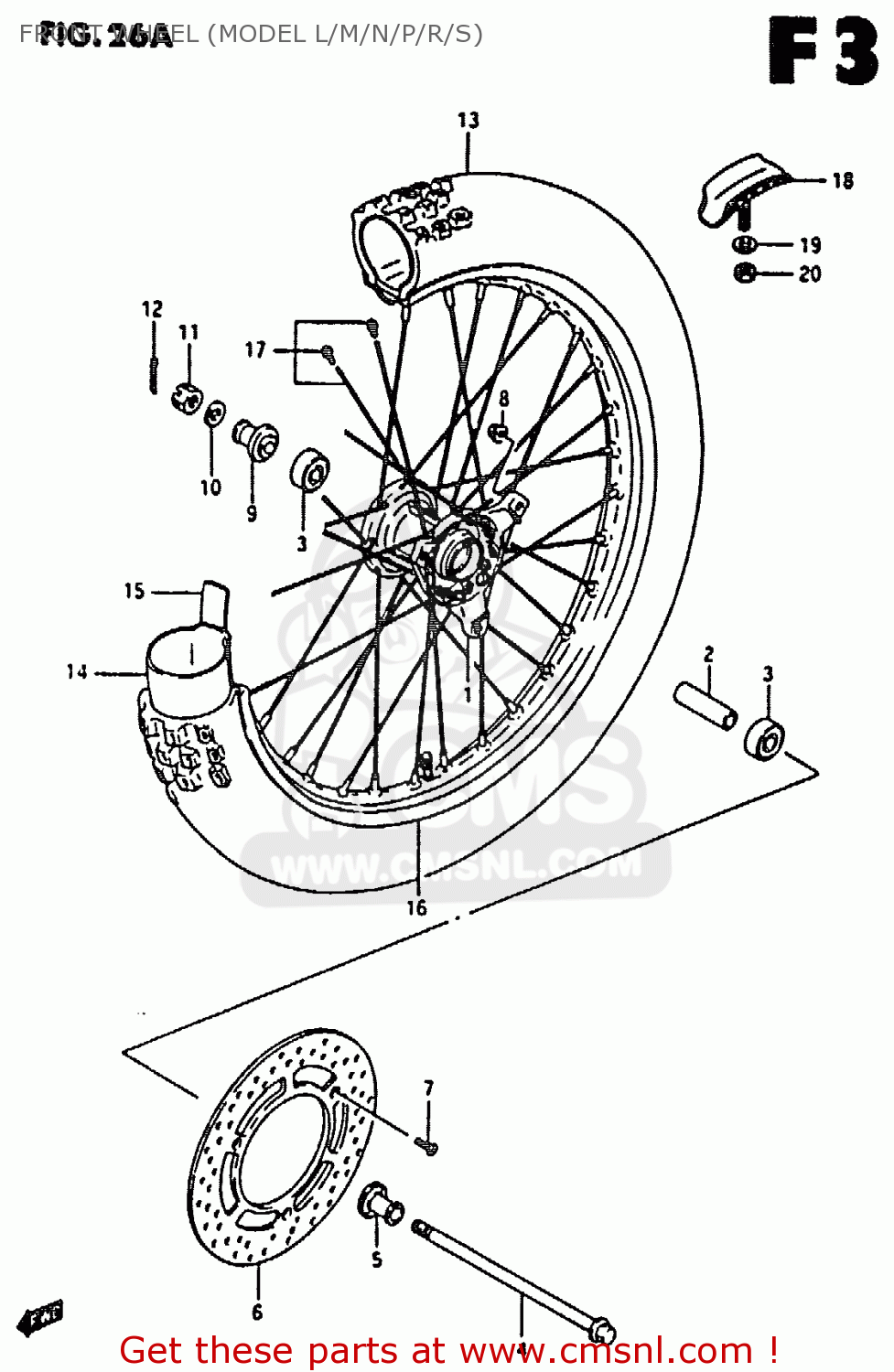

Front wheel (model l/m/n/p/r/s) diagram RM80X 1992 (N)
FRONT WHEEL (MODEL L/M/N/P/R/S) RM80X 1992 (N)
×
prices are in EUR
ref
part #
description
quantity
1-1
5411102B41
ref: 1-1
MODEL L/M/N/P/R
HUB,FRONT WHEEL
€ 151.00
1-2
5411102B42
ref: 1-2
MODEL S
HUB,FR WHEEL
€ 151.00
2
5473102B40
ref: 2
SPACER,FR HUB BEARING
€ 7.00
3
0813362017
ref: 3
BEARING (12X32X10)
€ 15.00
4
5471102B40
ref: 4
AXLE,FR
€ 32.50
5
5474002B40
ref: 5
SPACER,FR AXLE
€ 9.50
6
5922102B20
ref: 6
DISC,FRONT BRAKE
€ 107.50
7
0912606009
ref: 7
SCREW(6X22)
€ 2.00
8
0831931067
ref: 8
NUT
€ 2.50
9
0821112204
ref: 9
WASHER
€ 3.50
10-1
0831441128
ref: 10-1
MODEL L/M/N/P
NUT, REAR AXLE
€ 2.50
10-2
0831440123
ref: 10-2
MODEL R/S
NUT,M12X1.25X1
€ 2.50
11
0411120208
ref: 11
PIN 20X20
€ 1.50
12
5511002B40
ref: 12
TIRE,FRONT
€ 68.00
13-1
5520002B40
ref: 13-1
@r55200-47C00
TUBE,INNER
€ 21.00
13-2
5520047C00
ref: 13-2
TUBE ASSEMBLY,WHEEL,INNER
€ 21.00
14
5526102B40
ref: 14
PROTECTOR,WHL INR TUBE
€ 3.50
15
5531102B00
ref: 15
RIM,FR WHEEL(1.40X17)
€ 183.50
16
5532002B00
ref: 16
SPOKE SET,FR WHEEL
€ 26.50
17
6527028600
ref: 17
STOPPER,BEAD
€ 26.50
18-1
0832211088
ref: 18-1
MODEL L/M/N/P
WASHER
€ 2.00
18-2
0832201083
ref: 18-2
MODEL R/S
WASHER
€ 1.50
19-1
0831012088
ref: 19-1
MODEL L/M/N/P
NUT
€ 2.00
19-2
0831000083
ref: 19-2
MODEL R/S
NUT
€ 1.50
19
0832211088
ref: 19
WASHER
€ 2.00
20
0831012088
ref: 20
NUT
€ 2.00
