REAR SHOCK ABSORBER (MODEL G)

RM80X 1992 (N)

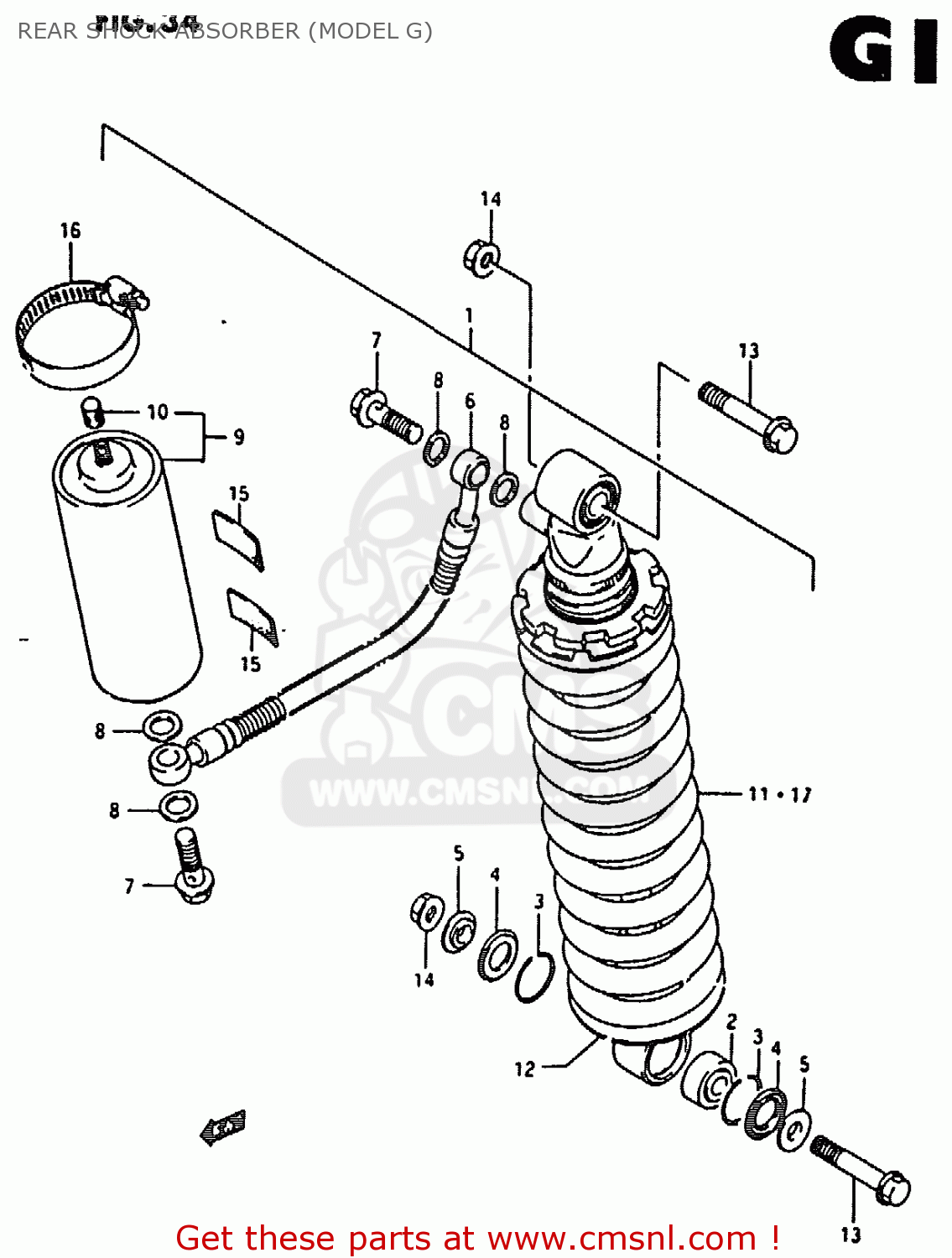

Rear shock absorber (model g) diagram RM80X 1992 (N)

REAR SHOCK ABSORBER (MODEL G) RM80X 1992 (N)

REAR SHOCK ABSORBER (MODEL G) RM80X 1992 (N)

prices are in EUR

ref

part #

description

quantity

1

6210002B00163
ref: 1
YELLOW

ABSORBER ASSEMBLY,REAR SHOCK

€ 686.50

2

6217520920
ref: 2

BEARING,REAR SHOCK ABSORBER

€ 66.00

3

6227720900
ref: 3

RING

€ 1.50

4

6222602B00
ref: 4

DUST SEAL,RR SHOCK

€ 8.00

5

6268431300
ref: 5

COLLAR

€ 8.00

6

6228002B00
ref: 6

HOSE

€ 52.00

7

6228120900
ref: 7

BOLT,REAR SHOCK ABSORBER

€ 0.00

8

0916110009
ref: 8

WASHER(10X15X1.5)

€ 2.00

9

6227002B00
ref: 9

RESERVE TANK,REAR SHOCK

€ 73.00

10

5129440400
ref: 10

CAP,VALVE AIR

€ 4.00

11

6221102B00
ref: 11

SPRING

€ 0.00

12

6222520400
ref: 12

SEAT, SPRING

€ 0.00

13

6264814500
ref: 13

BOLT,RR CUSHION ROD UPR

€ 3.00

14

0831931107
ref: 14

NUT

€ 3.00

15

6242302B00
ref: 15

CUSHION,REAR SHOCK ABSORBER

€ 3.00

16

0940270501
ref: 16

CLAMP

€ 10.50

17

6221102B20
ref: 17
OPT

SPRING,REAR SHOCK ABSORBER

€ 138.00
