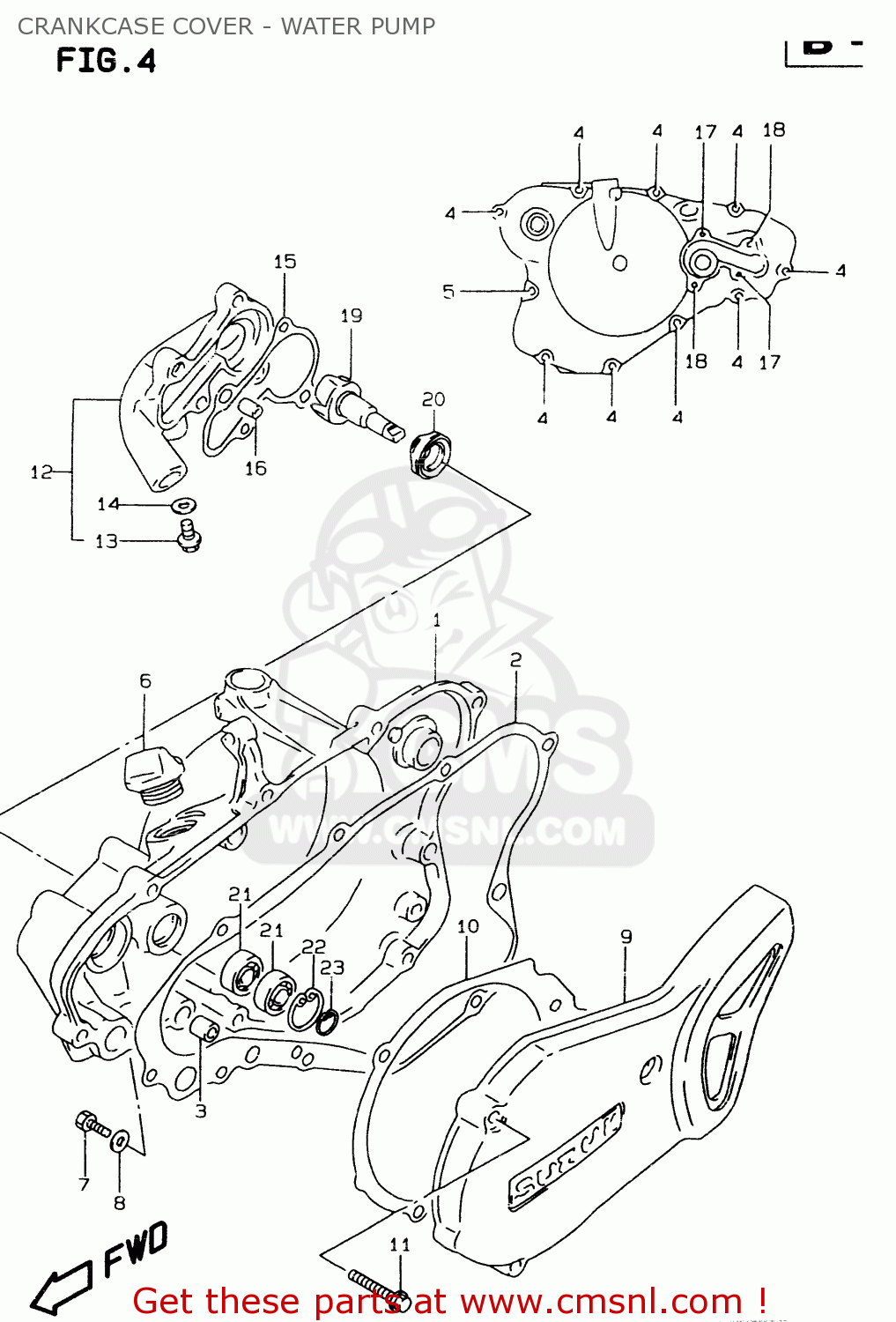

CRANKCASE COVER - WATER PUMP - RM80X 1997 (V) (E02 E04 E24)

ref

part #

description

quantity

1

1134102B42
ref: 1

COVER,CLUTCH

€ 142.00

2

1148227C00
ref: 2

GASKET,CLUTCH COVER (NAS)

€ 12.00

3

0421109129
ref: 3

PIN

€ 2.00

4

0154706253
ref: 4

SCREW

€ 2.50

5

0154706353
ref: 5

BOLT

€ 3.00

6

0920020810
ref: 6

PLUG SET

€ 8.00

7

0912806004
ref: 7

SCREW(6X10)

€ 1.50

8

0916806004
ref: 8

GASKET(6.2X11X1).2 (NAS)

€ 1.50

9

1135102B41
ref: 9

COVER,MAGNETO

€ 60.00

10

1148302B50
ref: 10

GASKET,MAGNETO COVER (NAS)

€ 5.00

11

0154706253
ref: 11

SCREW

€ 2.50

12

1741002B44
ref: 12

CASE,WATER PUMP

€ 59.00

13

1741543D00
ref: 13

BOLT

€ 3.00

14

1741328C10
ref: 14

WASHER

€ 1.50

15

1743102B41
ref: 15

GASKET,WATER PUMP CASE (NAS)

€ 5.00

16

0421109129
ref: 16

PIN

€ 2.00

17

0154706203
ref: 17

SCREW

€ 2.50

18

0154706303
ref: 18

BOLT,G/S SWITC

€ 3.00

19

1749102B40
ref: 19

IMPELLER,WATER PUMP

€ 17.50

20

1746128C10
ref: 20

SEAL,WATER PUMP OIL

€ 7.00

21

0811306980
ref: 21

BEARING

€ 14.00

22

0938119003
ref: 22

CIRCLIP

€ 2.00

23

0833131086
ref: 23

CIRCLIP

€ 2.00

CRANKCASE COVER - WATER PUMP

all assemblies
