REAR BRAKE

RM80X 1997 (V) (E02 E04 E24)

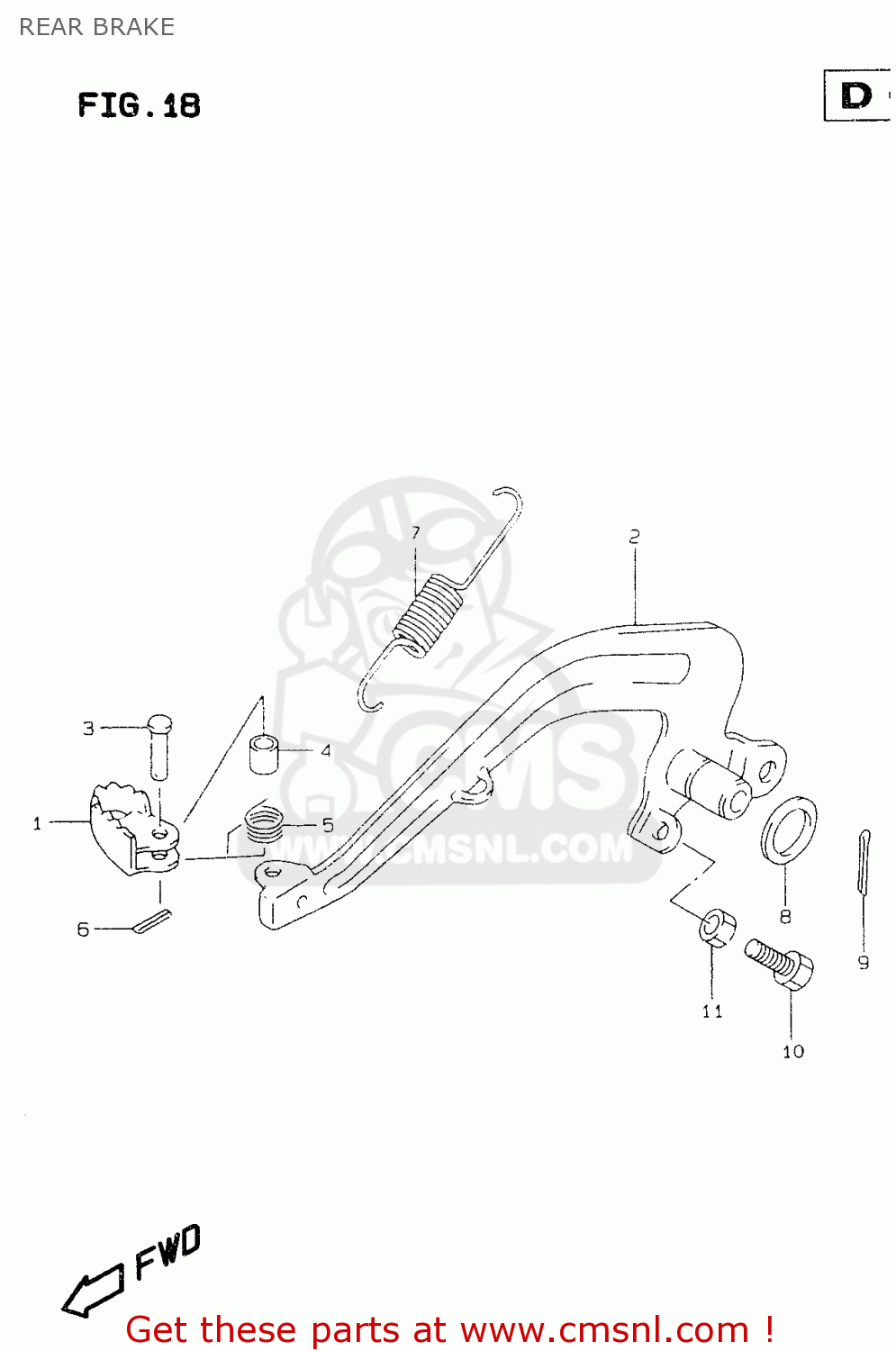

Rear brake diagram RM80X 1997 (V) (E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

4311001B10
ref: 1

PEDAL,BRAKE

€ 10.00

4312002B30
ref: 2

ARM,BRAKE PEDAL

€ 36.50

0920006060
ref: 3

PIN

€ 5.50

4-1

0918006165
ref: 4-1
MODEL T

SPACER (6.6X9X6.5)

€ 2.50

4-2

0918006257
ref: 4-2
MODEL V/W

SPACER(6.5X9X6.5)

€ 2.50

0944411005
ref: 5

SPRING

€ 3.00

0411120158
ref: 6

PIN

€ 1.50

0944313024
ref: 7

SPRING

€ 6.00

8-1

0916015002
ref: 8-1
MODEL T/V

WASHER(15.5X26X2.3)

€ 2.00

8-2

0916015049
ref: 8-2
MODEL W

WASHER(15.5X24X2.3)

€ 2.50

0411125308
ref: 9

PIN, COTTER

€ 1.50

0912806028
ref: 10

SCREW(6X23)

€ 2.00

0831000063
ref: 11

NUT 6MM

€ 2.00
