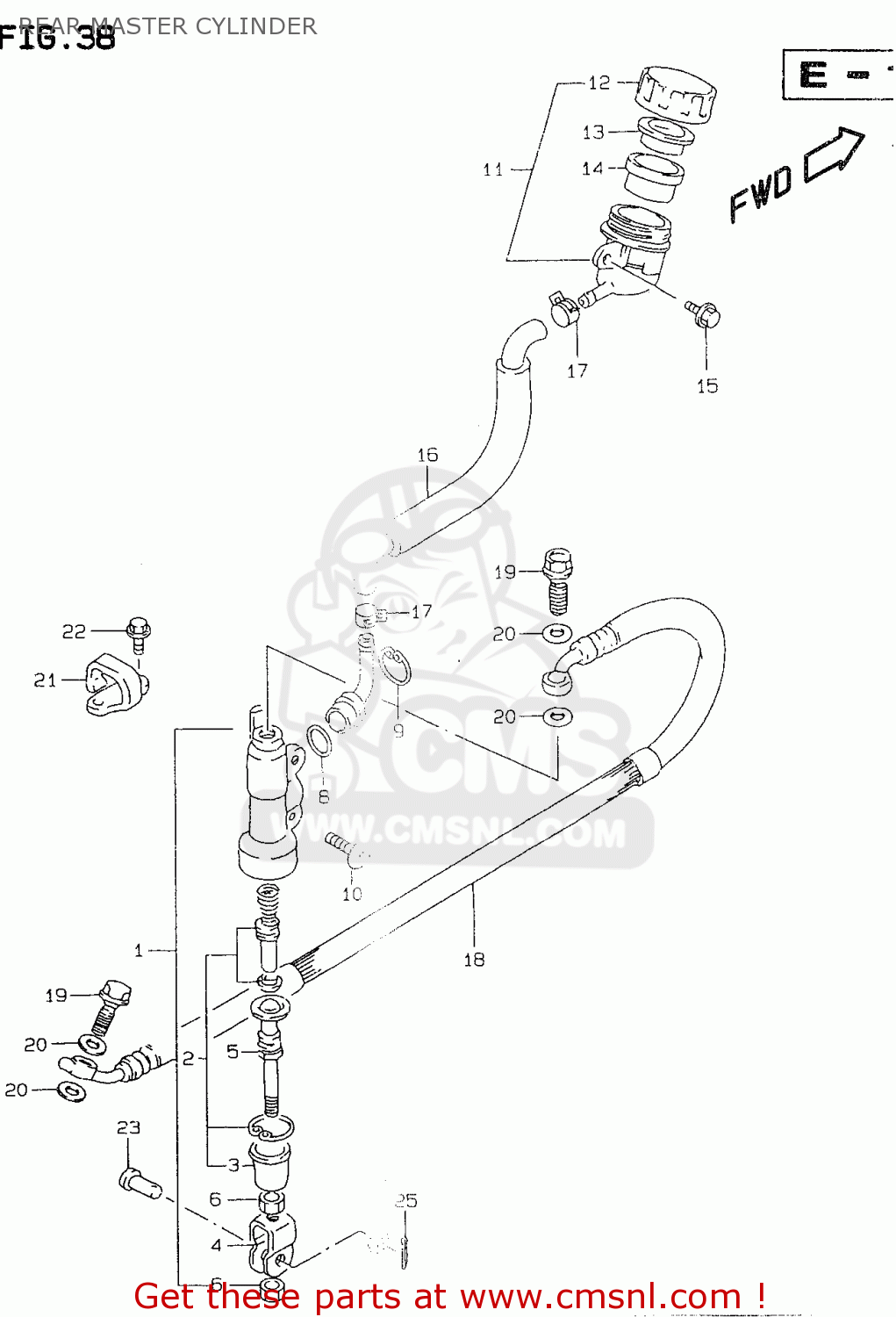

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960002B40
ref: 1

CYLINDER ASSY,RR MASTER

€ 198.00

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969200B21
ref: 4

YOKE

€ 13.50

5

6967027A30
ref: 5

ROD,PUSH

€ 13.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967200B20
ref: 7

CONNECTOR

€ 5.00

8

6968634200
ref: 8

O RING

€ 3.50

9

6967400B20
ref: 9

CIRCLIP

€ 3.00

10

0913906030
ref: 10

SCREW(6X16)

€ 3.50

11

6974003D10
ref: 11

TANK ASSY,RR BRAKE RESERVOIR

€ 72.50

12

6966903D10
ref: 12

CAP

€ 11.00

13

6966800B20
ref: 13

PLATE

€ 4.00

14

6966700B20
ref: 14

DIAPHRAGM

€ 9.50

15

0154706123
ref: 15

BOLT

€ 2.00

16

6973102B50
ref: 16

HOSE,RESERVOIR TANK

€ 17.00

17

6973500B20
ref: 17

CLAMP,RESERVOIR HOSE

€ 3.00

18

6948002B41
ref: 18

HOSE,RR BRAKE

€ 70.00

19-1

0936010017
ref: 19-1
MODEL T

BOLT UNION

€ 6.50

19-2

0936010039
ref: 19-2
MODEL V/W

BOLT UNION

€ 6.50

20

0916110009
ref: 20

WASHER(10X15X1.5)

€ 2.00

21

6119600B21
ref: 21

GUIDE,RR BRAKE HOSE

€ 6.00

22

0214205103
ref: 22

SCREW

€ 2.50

23

0920008048
ref: 23

PIN(8X20)

€ 3.00

24-1

0916008074
ref: 24-1
MODEL T/V

WASHER(8.5X13X1.6)

€ 2.50

24-2

0916008119
ref: 24-2
MODEL W

WASHER (8.5X14X1.6)

€ 2.50

25

0411120158
ref: 25

PIN

€ 1.50
