CRANKCASE COVER
RMX250 1990 (L) GENERAL (E01)

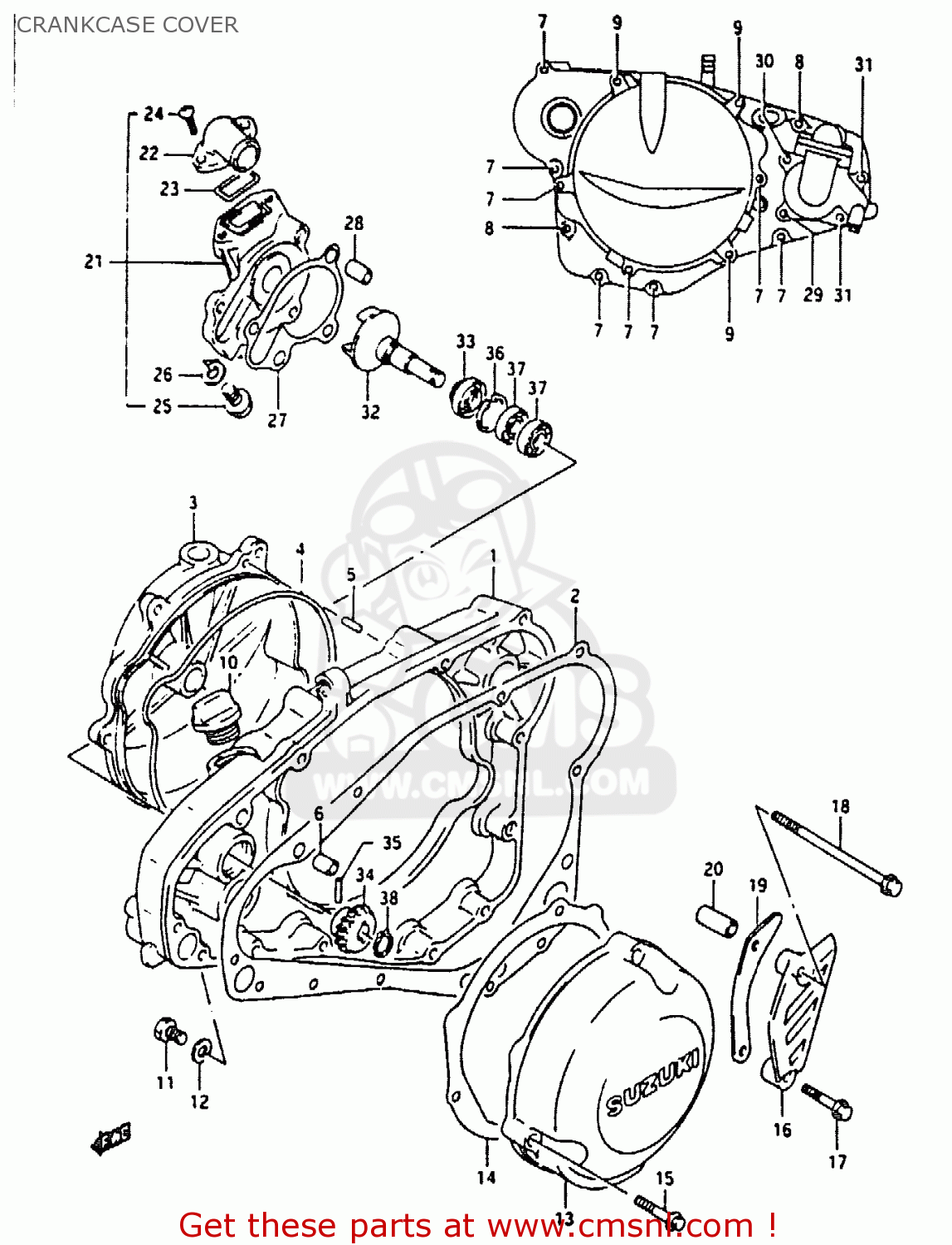

Crankcase cover diagram RMX250 1990 (L) GENERAL (E01)
CRANKCASE COVER RMX250 1990 (L) GENERAL (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134128C10
ref: 1-1
MODEL L/M
COVER,CLUTCH
€ 129.50
1-2
1134128C30
ref: 1-2
MODEL N
COVER,CLUTCH
€ 175.50
1-3
1134028811
ref: 1-3
MODEL S/T
COVER,CLUTCH
€ 175.50
2
1148228C01
ref: 2
GASKET,CLUTCH COVER (NAS)
€ 15.00
3-1
1137128C11
ref: 3-1
MODEL L/M/N
COVER,CLUTCH,OUTER
€ 339.50
3-2
1132128E02
ref: 3-2
MODEL S/T
COVER, CLUTCH OUTER
€ 0.00
4
1148428C10
ref: 4
O RING,CLUTCH COVER OUTER
€ 18.50
5
0422104089
ref: 5
PIN
€ 1.50
6
0421109129
ref: 6
PIN
€ 2.00
7-1
0154706257
ref: 7-1
MODEL L/M/N
BOLT
€ 2.50
7-2
0154706253
ref: 7-2
MODEL S/T
SCREW
€ 2.50
8-1
0154706357
ref: 8-1
MODEL L/M/N
BOLT
€ 2.50
8-2
0154706353
ref: 8-2
MODEL S/T
BOLT
€ 3.00
9-1
0154706657
ref: 9-1
MODEL L/M
BOLT
€ 2.00
9-2
0154706707
ref: 9-2
MODEL N
BOLT
€ 2.50
9-3
0154706703
ref: 9-3
MODEL S/T
BOLT
€ 3.00
10
0920020810
ref: 10
PLUG SET
€ 8.00
11
0912806004
ref: 11
SCREW(6X10)
€ 1.50
12
0916806004
ref: 12
GASKET(6.2X11X1).2 (NAS)
€ 1.50
13-1
1138105D00
ref: 13-1
MODEL L/M/N
COVER, MAGNETO
€ 0.00
13-2
1135105D10
ref: 13-2
MODEL S/T
COVER,MAGNETO
€ 184.50
14
1148328C01
ref: 14
GASKET,MAGNETO COVER (NAS)
€ 7.00
15-1
0154706257
ref: 15-1
MODEL L/M/N
BOLT
€ 2.50
15-2
0154706253
ref: 15-2
MODEL S/T
SCREW
€ 2.50
16-1
1136027C00
ref: 16-1
MODEL L/M/N
COVER,SPROCKET
€ 28.00
16-2
1136028E00
ref: 16-2
MODEL S/T
COVER,ENGINE SPROCKET
€ 28.00
17-1
0154706257
ref: 17-1
MODEL L/M/N
BOLT
€ 2.50
17-2
0154706253
ref: 17-2
MODEL S/T
SCREW
€ 2.50
18-1
0154706958
ref: 18-1
MODEL L/M/N
BOLT 6X95
€ 4.00
18-2
0154704953
ref: 18-2
MODEL S/T
BOLT
€ 0.00
19-1
2764128C10
ref: 19-1
PLATE,FR CHAIN GUIDE(13T)
€ 8.50
19-2
2764128C20
ref: 19-2
OPT, FOR NT:15
PLATE,FR CHAIN GUIDE(15T)
€ 8.00
20
0918006203
ref: 20
SPACER(6.5X10.5X25)
€ 3.50
21-1
1741028C10
ref: 21-1
MODEL L/M/N
CASE,WATER PUMP
€ 93.50
21-2
1741028E00
ref: 21-2
MODEL S/T
CASE ASSY,WATER PUMP
€ 93.50
22-1
1741228C10
ref: 22-1
MODEL L/M/N
CONNECTOR
€ 23.50
22-2
1741228E00
ref: 22-2
MODEL S/T
CONNECTOR
€ 23.50
23
1741414300
ref: 23
O RING,WATER PUMP CONNECTOR
€ 3.00
24
0211206164
ref: 24
SCREW
€ 2.00
25-1
1741500B00
ref: 25-1
MODEL L/M/N
BOLT,BLEEDER
€ 3.00
25-2
1741543D00
ref: 25-2
MODEL S/T
BOLT
€ 3.00
26
1741328C10
ref: 26
WASHER
€ 1.50
27
1743128C10
ref: 27
GASKET,WATER PUMP CASE (NAS)
€ 10.00
28
0421109129
ref: 28
PIN
€ 2.00
29-1
0154706207
ref: 29-1
MODEL L/M/N
BOLT
€ 2.50
29-2
0154706203
ref: 29-2
MODEL S/T
SCREW
€ 2.50
30-1
0154706307
ref: 30-1
MODEL L/M/N
BOLT
€ 2.50
30-2
0154706303
ref: 30-2
MODEL S/T
BOLT,G/S SWITC
€ 3.00
31-1
0154706807
ref: 31-1
MODEL L/M/N
BOLT
€ 3.50
31-2
0154706803
ref: 31-2
MODEL S/T
BOLT
€ 3.50
32
1749128C10
ref: 32
IMPELLER,WATER PUMP
€ 39.00
33
1746128C10
ref: 33
SEAL,WATER PUMP OIL
€ 7.00
34
1744128C10
ref: 34
GEAR,WATER PUMP DRIVEN
€ 25.00
35
0926103010
ref: 35
PIN(3X13.8)
€ 3.00
36
0833141246
ref: 36
CIRCLIP
€ 2.50
37
0811369000
ref: 37
BEARING
€ 23.50
38
0833131106
ref: 38
CIRCLIP,10MM
€ 2.00
