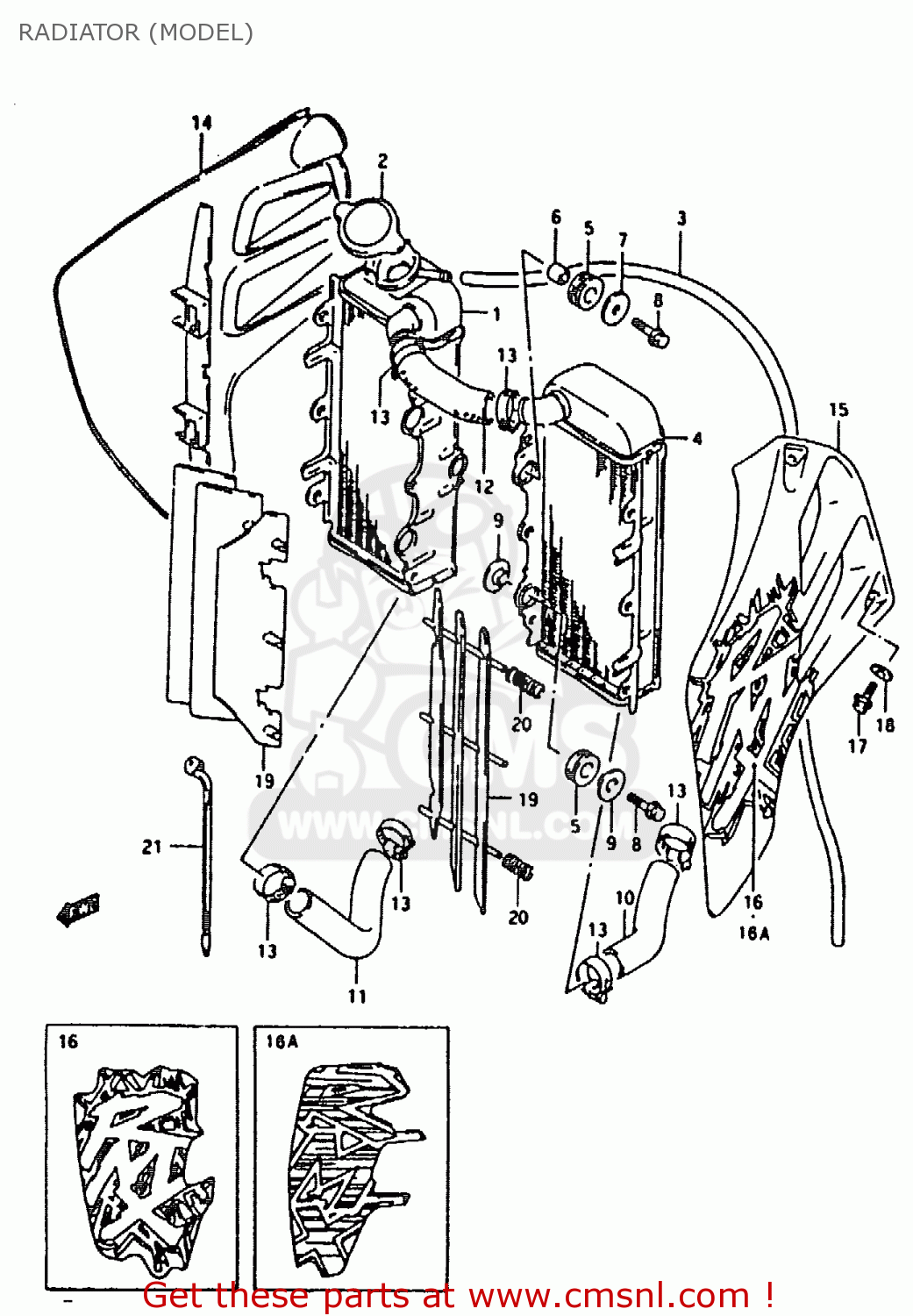

RADIATOR (MODEL)

ref

part #

description

quantity

1

1771005D00
ref: 1

RADIATOR,WATER,R

€ 268.00

2

1773012C01
ref: 2

CAP,RADIATOR

€ 40.00

3

093515080300B
ref: 3
L:2000)650

HOSE(5X8X2000)

€ 10.00

4

1772005D00
ref: 4

RADIATOR COMP,WATER,LEFT

€ 289.50

5

1778719A00
ref: 5

CUSHION,RADIATOR LWR

€ 3.50

6

0918006221
ref: 6

SPACER(6.5X10.5X12)

€ 5.50

7

0916006002
ref: 7

WASHER (6.5X24X1.2)

€ 2.00

8

0154706253
ref: 8

SCREW

€ 2.50

9

1778126C00
ref: 9

WASHER,RDTR SPRT

€ 2.50

10

1783128C00
ref: 10

HOSE, INLET

€ 0.00

11

1785228C10
ref: 11

HOSE,RADIATOR OUTLET

€ 14.50

12

1785328C20
ref: 12

HOSE,RADIATOR JOINT NO.1

€ 17.50

13

0940228511
ref: 13

CLAMP

€ 8.50

14-1

1776128C0025V
ref: 14-1
MODEL S

COVER, RADIATOR RH

€ 0.00

14-2

1776128C00262
ref: 14-2
MODEL T

COVER, RADIATOR RH

€ 0.00

15-1

1776228C0025V
ref: 15-1
MODEL S

COVER, RADIATOR LH

€ 0.00

15-2

1776228C00262
ref: 15-2
MODEL T

COVER, RADIATOR LH

€ 0.00

16-1

6866105D40DOJ
ref: 16-1
MODEL S

EMBLEM, RADIATOR COVER, RH

€ 0.00

16-2

6867105D40DOJ
ref: 16-2
MODEL S

EMBLEM, RADIATOR COVER, LH

€ 0.00

16A-1

6866505D10E8S
ref: 16A-1
MODEL T

TAPE,RADIATOR COVER,RIGHT

€ 0.00

16A-2

6867505D10E8S
ref: 16A-2
MODEL T

TAPE,RADIATOR COVER,L

€ 0.00

17

0154706123
ref: 17

BOLT

€ 2.00

18-1

0916006028
ref: 18-1
MODEL S

WASHER(6.5X18X1)

€ 1.50

18-2

0916906054
ref: 18-2
MODEL T

WASHER

€ 2.00

19

1783126C00
ref: 19

LOUVER,RADIATOR

€ 17.00

20

0944011024
ref: 20

SPRING

€ 5.00

21

0940718403
ref: 21

CLAMP L:165

€ 2.50

18

0154706127
ref: 18

BOLT

€ 2.00

19

0916806027
ref: 19

GASKET(6.5X20X1.5) (NAS)

€ 3.50

20

1783126C00
ref: 20

LOUVER,RADIATOR

€ 17.00

21-1

0944011024
ref: 21-1
MODEL K

SPRING

€ 5.00

21-2

0944011024
ref: 21-2
MODEL L/M/N

SPRING

€ 5.00

22

0940718403
ref: 22

CLAMP L:165

€ 2.50

all assemblies
