RIGHT KNUCKLE (COVER)
RMX250 1990 (L) GENERAL (E01)

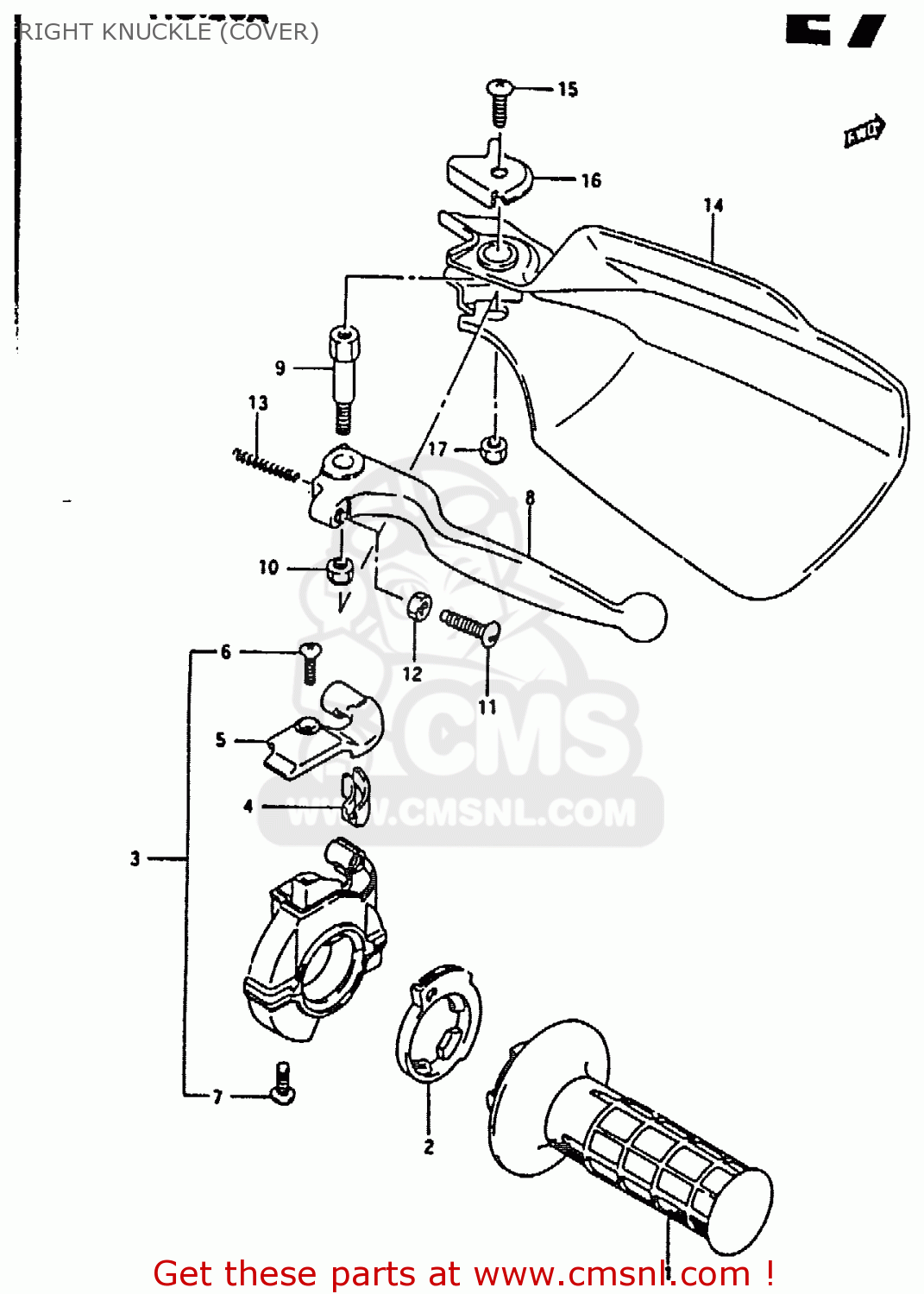

Right knuckle (cover) diagram RMX250 1990 (L) GENERAL (E01)
RIGHT KNUCKLE (COVER) RMX250 1990 (L) GENERAL (E01)
×
prices are in EUR
ref
part #
description
quantity
1
5711027C00
ref: 1
GRIP,THROTTLE
€ 25.00
2
5711414301
ref: 2
ROTOR,THROTTLE GRIP
€ 6.50
3
5710014302
ref: 3
CASE ASSY,THROTTLE
€ 57.50
4
5712214301
ref: 4
GUIDE PIECE,THROTTLE
€ 4.00
5
5712914302
ref: 5
COVER,THROTTLE CASE
€ 8.50
6
0212204103
ref: 6
SCREW,UPPER
€ 2.50
7
0211205167
ref: 7
SCREW
€ 2.50
8
5742127C00
ref: 8
LEVER,BRAKE
€ 11.00
9
5743105D00
ref: 9
BOLT,BRAKE LEVER PIVOT
€ 9.00
10
0831921068
ref: 10
NUT 6MM
€ 2.00
11
5743114511
ref: 11
BOLT,ADJUST
€ 3.50
12
0831012055
ref: 12
NUT ,5MM
€ 2.50
13
5731814502
ref: 13
SPRING,RETURN
€ 3.00
14-1
5734105D0025Y
ref: 14-1
MODEL N
COVER,KNUCKLE,R
€ 24.50
14-2
5734105D0030H
ref: 14-2
MODEL S/T
COVER,KNUCKLE,RIGHT
€ 18.00
15-1
0912505042
ref: 15-1
MODEL N
SCREW(5X10)
€ 2.50
15-2
0214205107
ref: 15-2
MODEL S/T
SCREW
€ 2.50
16
5735514D00
ref: 16
PLATE,KNUCKLE COVER,R UPR
€ 5.00
17
0831921068
ref: 17
NUT 6MM
€ 2.00
