REAR MASTER CYLINDER (MODEL K)
RMX250 1992 (N) USA (E03)

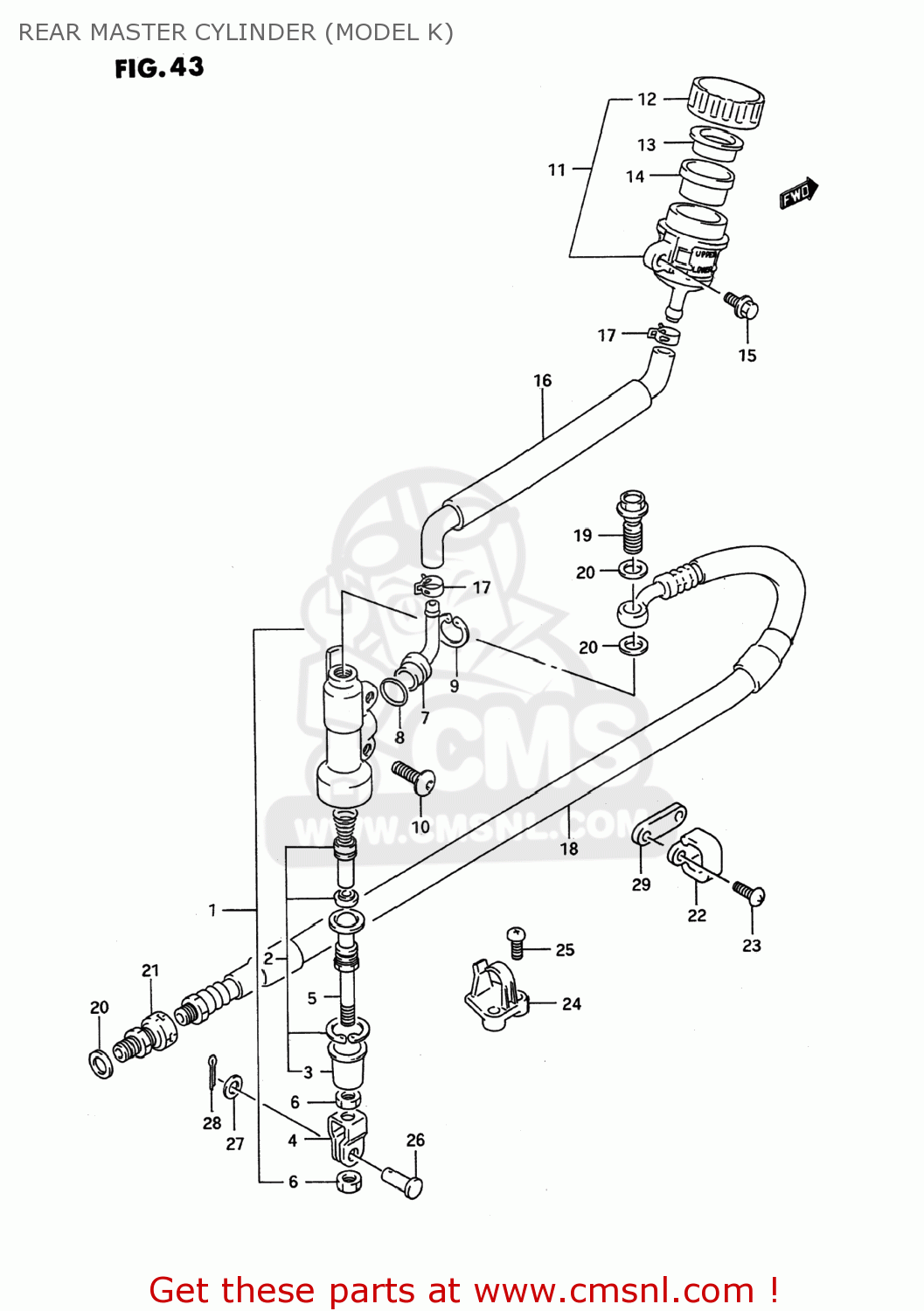

Rear master cylinder (model k) diagram RMX250 1992 (N) USA (E03)
REAR MASTER CYLINDER (MODEL K) RMX250 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960000B23
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
€ 190.50
2
6960034820
ref: 2
PISTON/CUP SET
€ 37.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969200B21
ref: 4
YOKE
€ 13.50
5
6967000B21
ref: 5
ROD,PUSH
€ 24.00
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
€ 5.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
€ 3.00
10
0910606064
ref: 10
BOLT(6X18)
€ 6.00
11
6974005D00
ref: 11
TANK ASSY,RESERVOIR
€ 42.50
12
6966903D10
ref: 12
CAP
€ 11.00
13
6966800B20
ref: 13
PLATE
€ 4.00
14
6966700B20
ref: 14
DIAPHRAGM
€ 9.50
15
0151706128
ref: 15
01550-06127
BOLT
€ 2.50
16
6973100B23
ref: 16
HOSE,RESERVOIR
€ 20.50
17
6973500B20
ref: 17
CLAMP,RESERVOIR HOSE
€ 3.00
18
6948005D00
ref: 18
HOSE COMP,REAR BRAKE
€ 88.50
19
0936010017
ref: 19
BOLT UNION
€ 6.50
20
0916110009
ref: 20
WASHER(10X15X1.5)
€ 2.00
21
5929014501
ref: 21
ADAPTOR,BRAKE HOSE
€ 18.50
22
6119600B21
ref: 22
GUIDE,RR BRAKE HOSE
€ 6.00
23
0214205167
ref: 23
SCREW
€ 1.50
24
6119603D00
ref: 24
GUIDE,RR BRAKE HOSE
€ 3.00
25
0211235168
ref: 25
02112-35167
SCREW
€ 2.50
26
0920008048
ref: 26
PIN(8X20)
€ 3.00
27
0916008074
ref: 27
WASHER(8.5X13X1.6)
€ 2.50
28
0411120158
ref: 28
04111-2015A
PIN
€ 1.50
29
6119727C00
ref: 29
SEAT,RR BRAKE HOSE GUIDE
€ 5.00
