REAR MASTER CYLINDER (MODEL M/N/P/R/S/T)
RMX250 1992 (N) USA (E03)

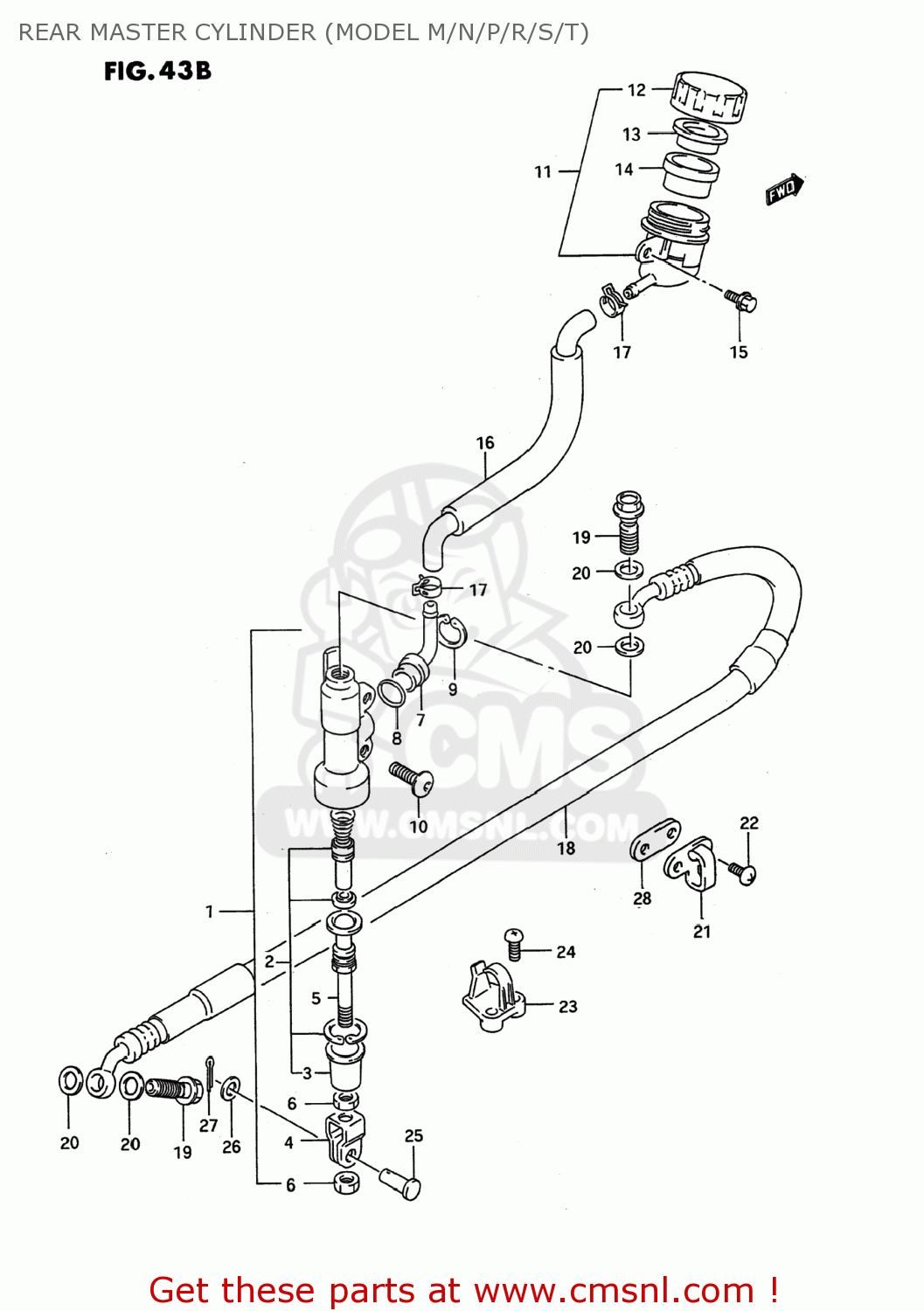

Rear master cylinder (model m/n/p/r/s/t) diagram RMX250 1992 (N) USA (E03)
REAR MASTER CYLINDER (MODEL M/N/P/R/S/T) RMX250 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960028C00
ref: 1
CYLINDER ASSY,RR MASTER
€ 155.50
2
6960034820
ref: 2
PISTON/CUP SET
€ 37.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969200B21
ref: 4
YOKE
€ 13.50
5
6967000B21
ref: 5
ROD,PUSH
€ 24.00
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
€ 5.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
€ 3.00
10-1
0913906030
ref: 10-1
SCREW(6X16)
€ 3.50
10-2
0913906067
ref: 10-2
SCREW(6X16)
€ 3.00
11
6974003D10
ref: 11
TANK ASSY,RR BRAKE RESERVOIR
€ 72.50
12
6966903D10
ref: 12
CAP
€ 11.00
13
6966800B20
ref: 13
PLATE
€ 4.00
14
6966700B20
ref: 14
DIAPHRAGM
€ 9.50
15-1
0151706128
ref: 15-1
01550-06127
BOLT
€ 2.50
15-2
0154706127
ref: 15-2
BOLT
€ 2.00
15-3
0154706123
ref: 15-3
01547-0612B
BOLT
€ 2.00
16
6973127C00
ref: 16
HOSE,TANK
€ 12.00
17
6973500B20
ref: 17
CLAMP,RESERVOIR HOSE
€ 3.00
18
6948005D10
ref: 18
HOSE,RR BRAKE
€ 58.00
19-1
0936010034
ref: 19-1
09360-10062
BOLT UNION
€ 5.00
19-2
0936010040
ref: 19-2
09360-10062
BOLT UNION
€ 5.00
19-3
0936010042
ref: 19-3
09360-10062
BOLT UNION
€ 5.00
20
0916110009
ref: 20
WASHER(10X15X1.5)
€ 2.00
21
6119627C20
ref: 21
GUIDE,RR BRAKE HOSE
€ 9.00
22-1
0214205167
ref: 22-1
SCREW
€ 1.50
22-2
0214205163
ref: 22-2
02142-0516A
SCREW
€ 2.50
23
6119603D00
ref: 23
GUIDE,RR BRAKE HOSE
€ 3.00
24-1
0211235168
ref: 24-1
02112-35167
SCREW
€ 2.50
24-2
0211235163
ref: 24-2
02112-3516A
SCREW
€ 2.50
25
0920008048
ref: 25
PIN(8X20)
€ 3.00
26
0916008074
ref: 26
WASHER(8.5X13X1.6)
€ 2.50
27
0411120158
ref: 27
04111-2015A
PIN
€ 1.50
28
6119727C00
ref: 28
SEAT,RR BRAKE HOSE GUIDE
€ 5.00
