STAND - FOOTREST (MODEL P/R/S/T)
RMX250 1992 (N) USA (E03)

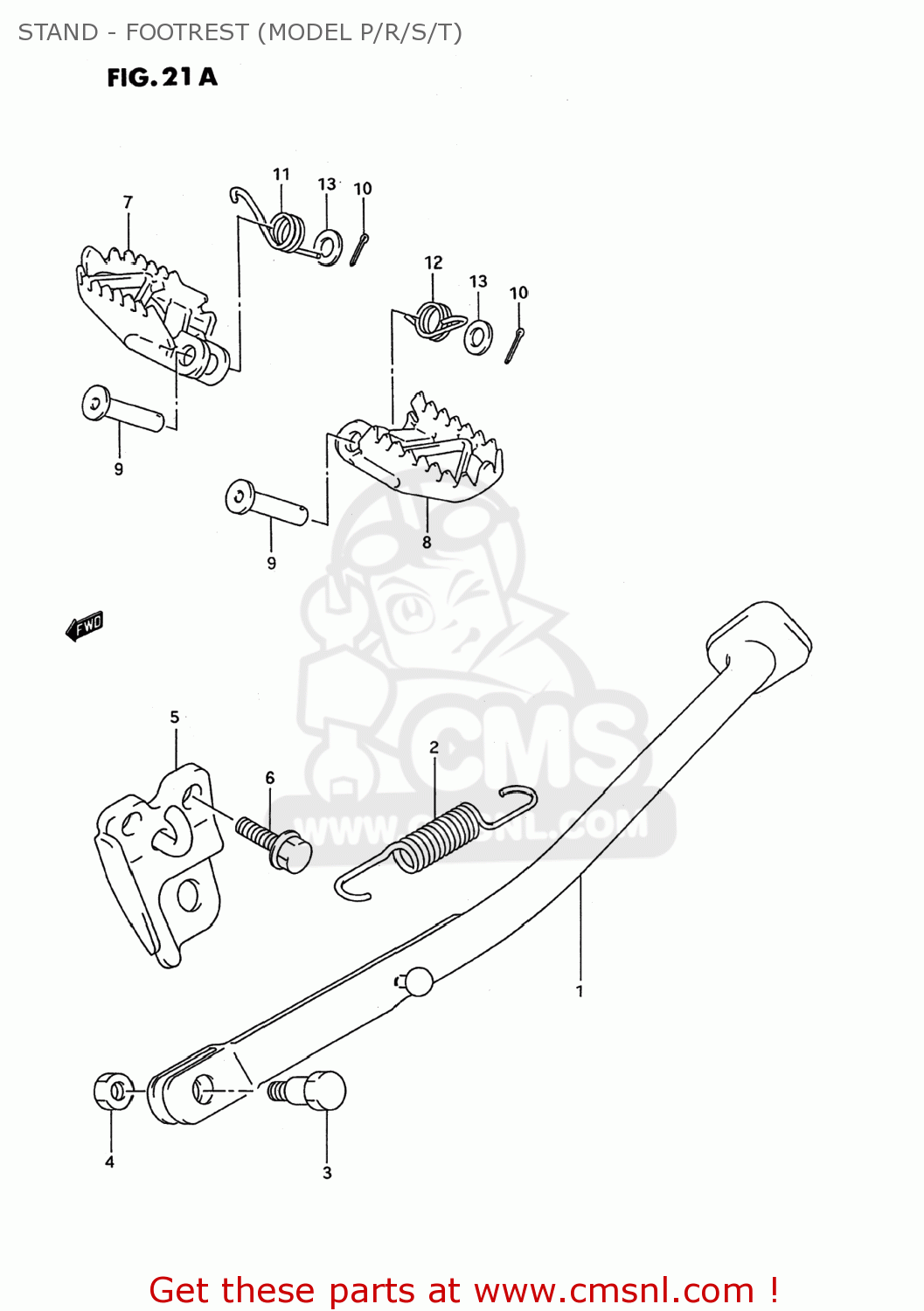

Stand - footrest (model p/r/s/t) diagram RMX250 1992 (N) USA (E03)
STAND - FOOTREST (MODEL P/R/S/T) RMX250 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231029E1013L
ref: 1
STAND,PROP(SILVER)
€ 295.00
2
0944317015
ref: 2
09443-17015-XC0
SPRING
€ 7.00
3-1
0911110047
ref: 3-1
BOLT(10X30)
€ 4.50
3-2
0911110046
ref: 3-2
09111-10046-XC0
BOLT(10X30)
€ 2.50
4-1
0831000107
ref: 4-1
NUT
€ 2.50
4-2
0831921103
ref: 4-2
08319-2110A
NUT
€ 2.00
5
4233029E0113L
ref: 5
BRACKET,PROP STAND
€ 50.50
6
0910310275
ref: 6
BOLT(10X25)
€ 5.00
7-1
4355028C30019
ref: 7-1
43550-29E01
FOOTREST COMP,RIGHT
€ 46.50
7-2
4355128E10
ref: 7-2
FOOTREST,R
€ 63.00
8-1
4356028C30019
ref: 8-1
43560-29E01
FOOTREST COMP,LEFT
€ 46.50
8-2
4356128E10
ref: 8-2
FOOTREST,L
€ 47.00
9
0920010019
ref: 9
PIN(10X41.5)
€ 6.00
10
0411125208
ref: 10
04111-2520A
PIN 25X20
€ 2.00
11
0944818030
ref: 11
SPRING
€ 5.00
12
0944818029
ref: 12
SPRING
€ 5.00
13-1
0832201107
ref: 13-1
WASHER
€ 2.50
13-2
0832201103
ref: 13-2
08322-0110A
WASHER
€ 2.50
