CYLINDER
RMX250 1993 (N) USA (E03)

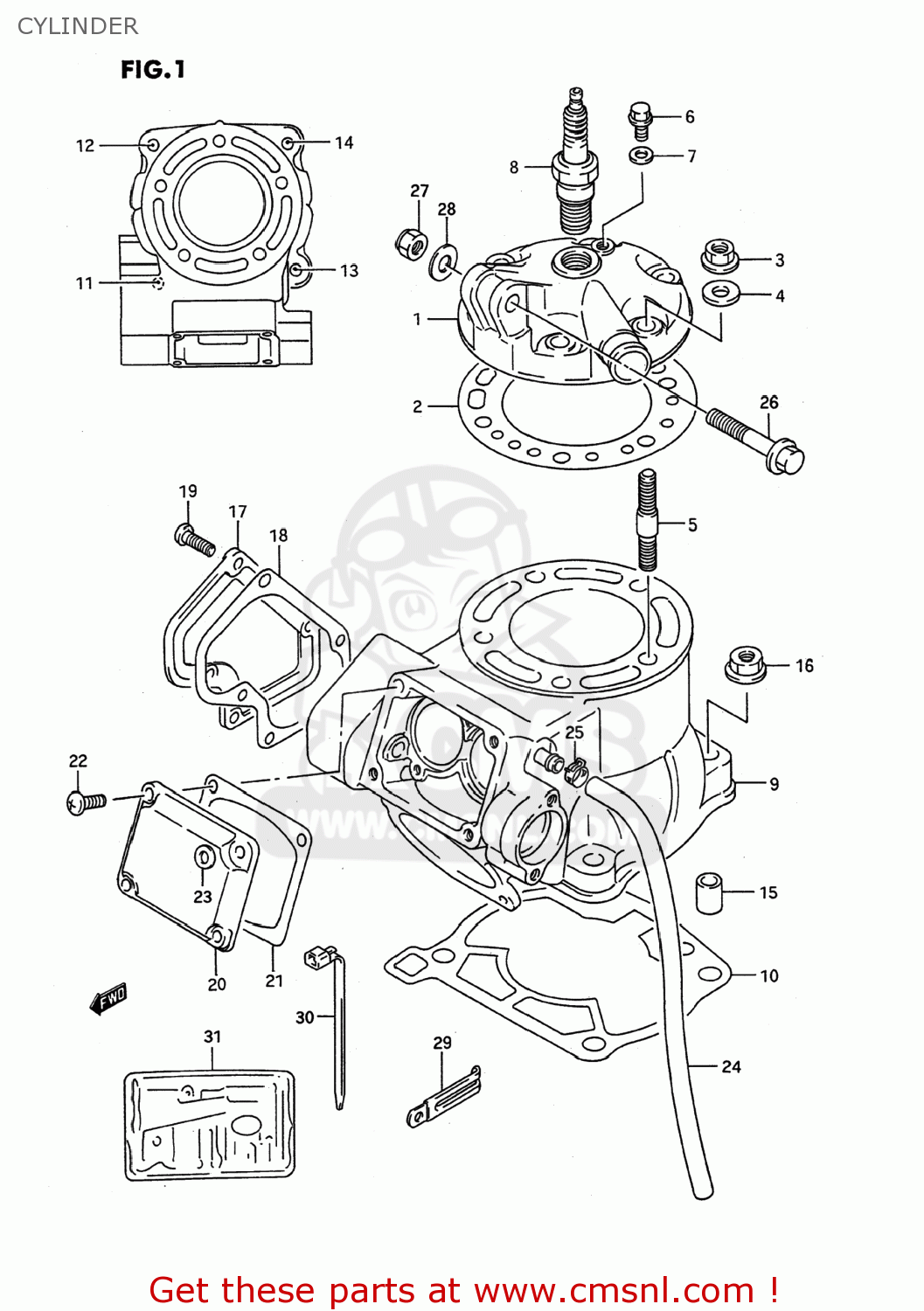

Cylinder diagram RMX250 1993 (N) USA (E03)
CYLINDER RMX250 1993 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111128C00
ref: 1-1
11111-28C10
HEAD,CYLINDER
€ 478.00
1-2
1111128C10
ref: 1-2
HEAD,CYLINDER
€ 478.00
2-1
1114105D00
ref: 2-1
11141-05D01
GASKET,CYLINDER HEAD (NAS)
€ 40.00
2-2
1114129E10
ref: 2-2
GASKET,CYLINDER HEAD
€ 115.00
2-3
1114105D20
ref: 2-3
GASKET,CYLINDER HEAD(T:1.2) (NAS)
€ 48.00
3-1
0831616088
ref: 3-1
08316-10087
NUT
€ 2.50
3-2
0831610083
ref: 3-2
08316-1008B
NUT
€ 3.00
4-1
0916008095
ref: 4-1
09160-08039
WASHER
€ 2.00
4-2
0916008039
ref: 4-2
WASHER(8.5X19X2.3)
€ 2.00
5
0910808224
ref: 5
BOLT,STUD
€ 6.00
6
0936006007
ref: 6
UNION
€ 3.00
7
0916806004
ref: 7
GASKET(6.2X11X1).2 (NAS)
€ 1.50
8-1
0948200208
ref: 8-1
PLUG,SPARK(NGK B-8EN)
€ 16.00
8-2
0948200115
ref: 8-2
09482-00509
SPARK PLUG BR9EV
€ 81.50
9-1
1120028811
ref: 9-1
11200-28821
CYLINDER
€ 546.00
9-2
1120028820
ref: 9-2
11200-28821
CYLINDER
€ 546.00
9-3
1120029821
ref: 9-3
CYLINDER SET
€ 805.00
10-1
1124128C01
ref: 10-1
11241-28C11
GASKET,CYLINDER (NAS)
€ 11.50
10-2
1124128C11
ref: 10-2
GASKET,CYLINDER (NAS)
€ 11.50
11
0142110308
ref: 11
01421-1030A
STUD 10X30
€ 2.50
12
0142110358
ref: 12
01421-1035A
STUD BOLT
€ 2.00
13
0142110408
ref: 13
01421-1040A
STUD BOLT (L:40)
€ 2.00
14
0142110457
ref: 14
BOLT,STUD
€ 2.50
15-1
0920613001
ref: 15-1
04211-13189
PIN
€ 2.50
15-2
0920613006
ref: 15-2
09206-13017
PIN
€ 9.00
16-1
0831616108
ref: 16-1
08316-10107
NUT
€ 2.00
16-2
0831610103
ref: 16-2
08316-1010B
NUT
€ 2.00
17-1
1123105D00
ref: 17-1
11231-29E01
COVER,CYLINDER NO.1
€ 23.50
17-2
1123129E00
ref: 17-2
11231-29E01
COVER,CYLINDER NO.1
€ 23.50
17-3
1123129E01
ref: 17-3
COVER,CYLINDER NO.1
€ 23.50
18-1
1123328C01
ref: 18-1
11233-29E00
GASKET,CYLINDER COVER (NAS)
€ 4.50
18-2
1123329E00
ref: 18-2
GASKET,CYL COVER NO.1 (NAS)
€ 4.50
19-1
0211205168
ref: 19-1
02112-05167
SCREW
€ 2.50
19-2
0117706168
ref: 19-2
01580-06167
BOLT
€ 3.00
19-3
0158006163
ref: 19-3
01580-0616A
BOLT
€ 2.50
20-1
1124005D00
ref: 20-1
COVER COMP,CYLINDER NO
€ 24.00
20-2
1124805D10
ref: 20-2
11248-28C20
COVER,CYLINDER
€ 24.00
20-3
1124828C20
ref: 20-3
COVER,CYLINDER NO.2
€ 24.00
21-1
1123828C00
ref: 21-1
11238-05D01
GASKET,CYLINDER COVER (NAS)
€ 2.50
21-2
1123805D00
ref: 21-2
11238-05D01
GASKET,CYLINDER COVER (NAS)
€ 2.50
21-3
1123805D01
ref: 21-3
GASKET,CYLINDER COVER NO.2 (NAS)
€ 2.50
22-1
0211205168
ref: 22-1
02112-05167
SCREW
€ 2.50
22-2
0211205163
ref: 22-2
02112-0516A
SCREW
€ 2.00
23
0916805010
ref: 23
GASKET(5.3X9.3X1.2) (NAS)
€ 2.00
24-1
0935465113300
ref: 24-1
09354-65113-600
HOSE (6.5X11.5X300)
€ 26.00
24-2
0934309501
ref: 24-2
HOSE
€ 13.50
25
0940112405
ref: 25
CLIP
€ 3.00
26-1
0151708457
ref: 26-1
01550-08457
BOLT 8X45
€ 4.00
26-2
0910308043
ref: 26-2
BOLT(8X45)
€ 4.50
27-1
0831921088
ref: 27-1
08319-2108A
NUT
€ 1.50
27-2
0915908067
ref: 27-2
NUT
€ 5.50
28
0832211088
ref: 28
08322-01087
WASHER
€ 2.00
29-1
0940405401
ref: 29-1
09404-06429
CLAMP
€ 2.50
29-2
0940406402
ref: 29-2
09404-06432
CLAMP
€ 2.50
29-3
0940406429
ref: 29-3
CLAMP(L:45)
€ 2.50
30
0940714403
ref: 30
CLAMP(L:125)
€ 2.50
31-1
1140105820
ref: 31-1
11401-05827
GASKET SET (NAS)
€ 63.00
31-2
1140105840
ref: 31-2
11401-05845
GASKET SET (NAS)
€ 135.50
31-3
1140129820
ref: 31-3
11401-29821
GASKET SET (NAS)
€ 149.50
31-4
1140129821
ref: 31-4
GASKET SET (NAS)
€ 149.50
