TRIP METER (MODEL M/N/P/R/S)
RMX250 1993 (N) USA (E03)

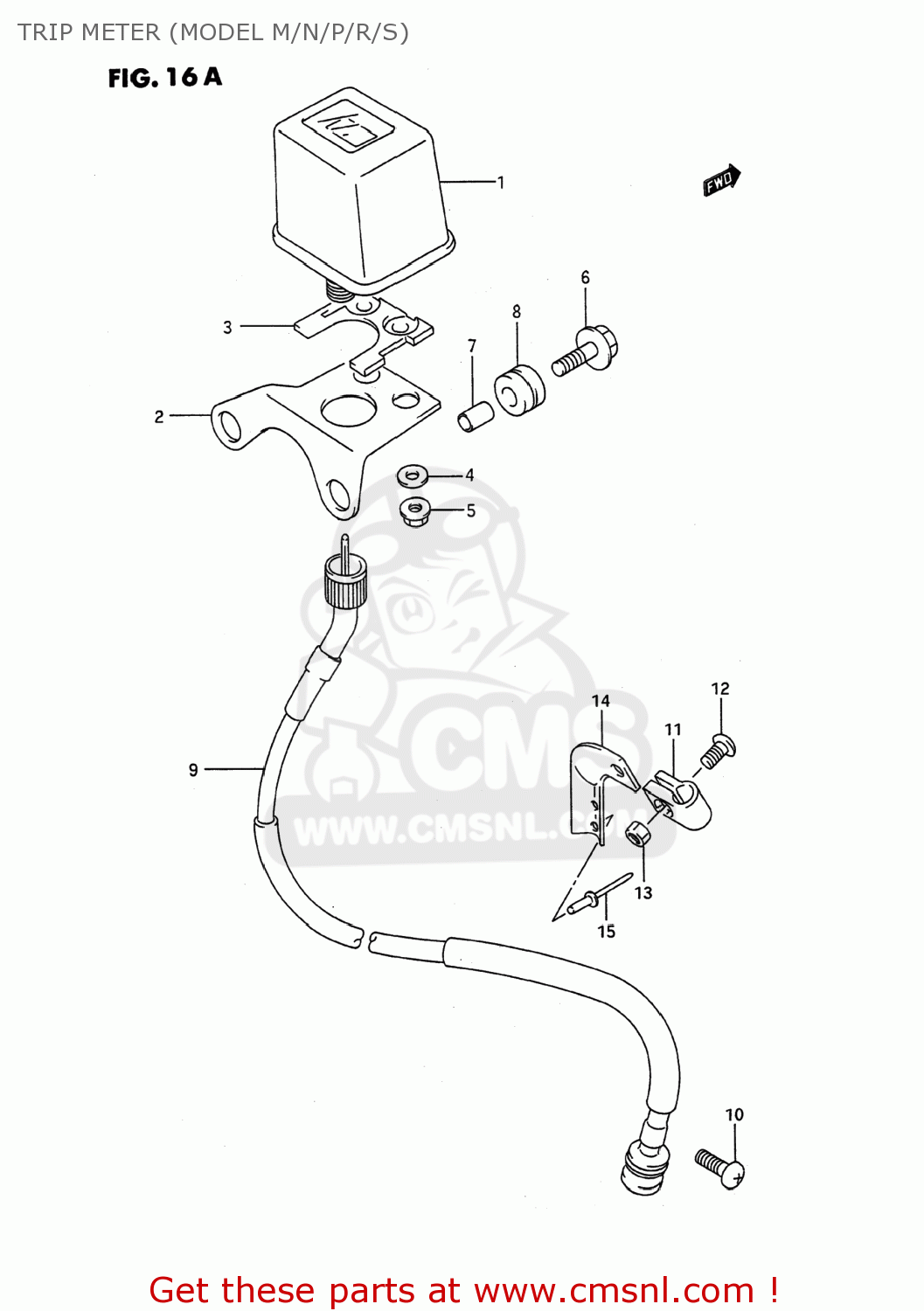

Trip meter (model m/n/p/r/s) diagram RMX250 1993 (N) USA (E03)
TRIP METER (MODEL M/N/P/R/S) RMX250 1993 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3472105D20
ref: 1
TRIP METER
€ 136.50
2
3472514D00
ref: 2
BRACKET
€ 44.00
3
3472605D20
ref: 3
CUSHION
€ 4.50
4-1
3472741410
ref: 4-1
09160-04022
WASHER,METER
€ 1.50
4-2
0916004017
ref: 4-2
09160-04022
WASHER (4.3X13X0.80)
€ 1.50
5-1
0831011047
ref: 5-1
08310-00047
NUT
€ 2.00
5-2
0831000047
ref: 5-2
NUT
€ 2.00
6
0911806086
ref: 6
BOLT(6X25)
€ 3.00
7
0918006044
ref: 7
09180-06248
SPACER (6.1X8X9.5)
€ 2.50
8
0932008048
ref: 8
09320-08501
CUSHION
€ 3.00
9
3491005D00
ref: 9
34910-29E10
CABLE ASSEMBLY,TRIPMETER
€ 71.00
10-1
0211205164
ref: 10-1
SCREW
€ 2.00
10-2
0211205163
ref: 10-2
02112-0516A
SCREW
€ 2.00
11
5862113710
ref: 11
CLAMP,FR BRAKE CABLE
€ 8.00
12-1
0214215125
ref: 12-1
02142-1512B
SCREW
€ 2.00
12-2
0211215123
ref: 12-2
02142-0512A
SCREW 5X12
€ 1.50
13-1
0831011057
ref: 13-1
08310-00057
NUT 5MM
€ 2.50
13-2
0831000053
ref: 13-2
08310-0005A
NUT
€ 2.50
14
3492605D00
ref: 14
BRACKET,METER CABLE GUIDE
€ 0.00
15
0922903005
ref: 15
RIVET
€ 3.50
