LABEL

RMX250 1993 (N) USA (E03)

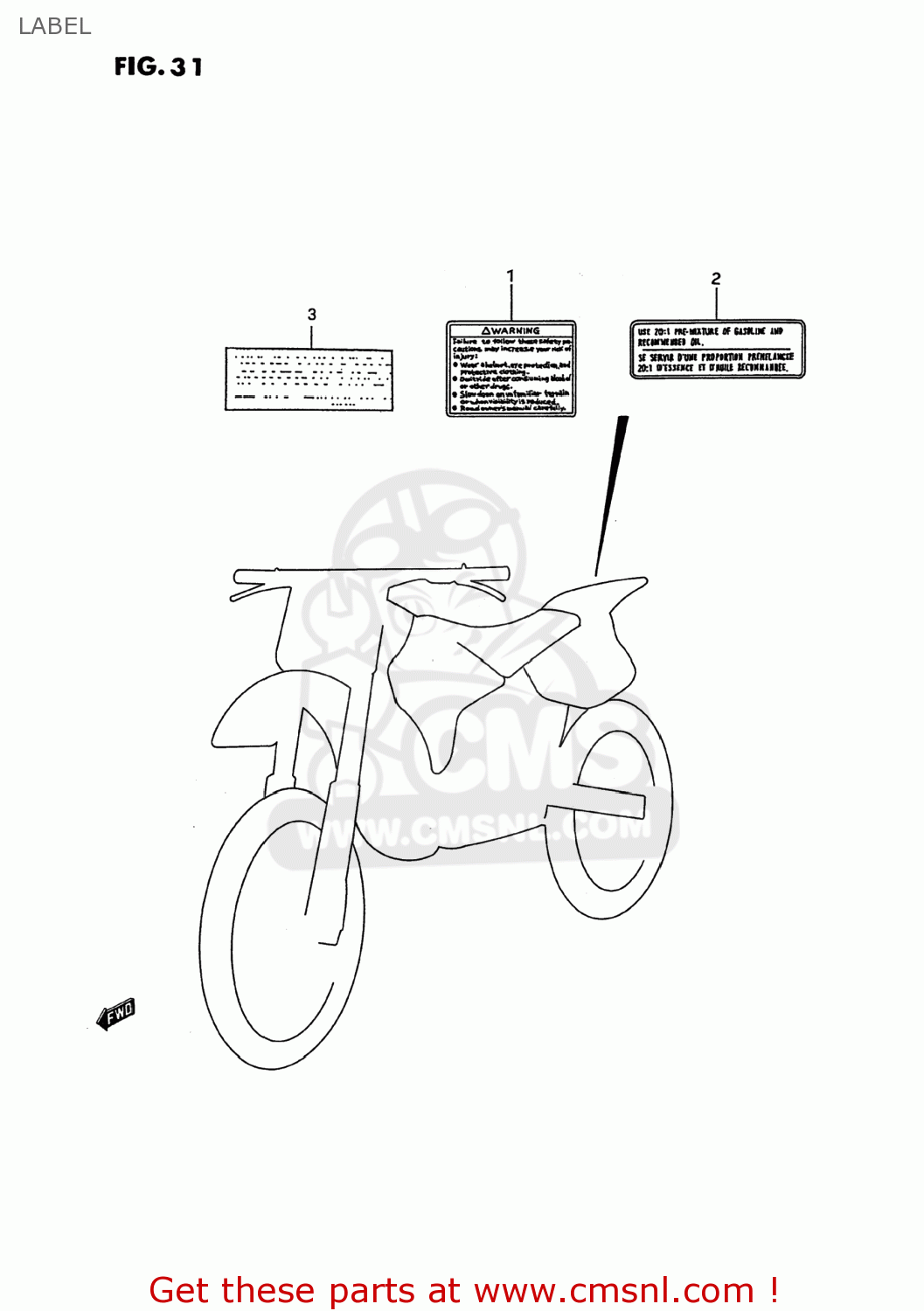

Label diagram RMX250 1993 (N) USA (E03)

LABEL RMX250 1993 (N) USA (E03)

LABEL RMX250 1993 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6831914D00
ref: 1-1
68319-33E01

LABEL

€ 8.00

1-2

6831933E00
ref: 1-2
68319-33E01

LABEL (WARNING SAFETY),E

€ 8.00

2-1

6836741300
ref: 2-1

LABEL,WARNING

€ 4.00

2-2

6836728C00
ref: 2-2

LABEL,WARNING NO.2

€ 4.50

3

6835326E01
ref: 3
68353-26E02

LABEL (MANUAL NOTICE)

€ 3.50

4-1

9901105D5003A
ref: 4-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 10.00

4-2

9901105D5103A
ref: 4-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 9.50

4-3

9901105D5203A
ref: 4-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 9.50

4-4

9901105D5303A
ref: 4-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 9.50

4-5

9901105D5403A
ref: 4-5

NO PRODUCT DESCRIPTION AVAILABLE

€ 9.50

4-6

9901105D5503A
ref: 4-6

NO PRODUCT DESCRIPTION AVAILABLE

€ 9.00

4-7

9901105D5603A
ref: 4-7

NO PRODUCT DESCRIPTION AVAILABLE

€ 9.50

4-8

9901105D5703A
ref: 4-8

OM RMX250

€ 9.50

4-8

9901105D5703A
ref: 4-8

OM RMX250

€ 9.50
