CRANKSHAFT (MODEL L/M/N)
RMX250 1994 (P) USA (E03)

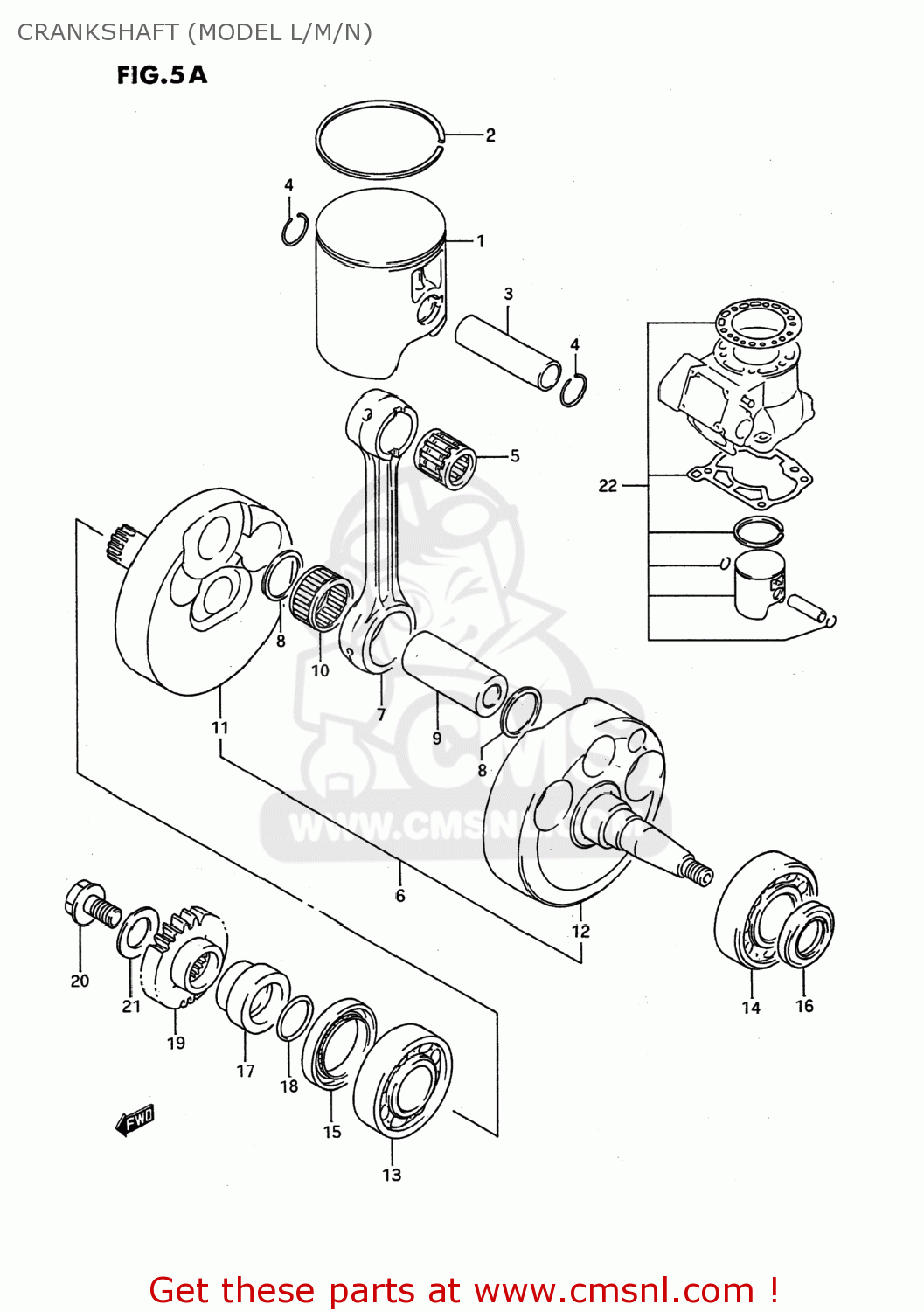

Crankshaft (model l/m/n) diagram RMX250 1994 (P) USA (E03)
CRANKSHAFT (MODEL L/M/N) RMX250 1994 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1211005D030F0
ref: 1
PISTON (67.00MM)
€ 84.50
2
1214141600
ref: 2
12141-41620
RING,PISTON
€ 22.50
3
1215128C00
ref: 3
12151-37F00
PIN,PISTON
€ 13.00
4
0938118002
ref: 4
CIRCLIP
€ 1.50
5
0926318016
ref: 5
BEARING(18X23X22)
€ 14.00
6-1
1220005D10
ref: 6-1
12200-05D20
CRANKSHAFT ASSEMBLY
€ 664.50
6-2
1220005D20
ref: 6-2
CRANKSHAFT ASSEMBLY
€ 664.50
7
1216105D00
ref: 7
ROD,CONNECTING
€ 88.50
8
0916024015
ref: 8
WASHER(24X29X1.5)
€ 7.50
9
1221105D00
ref: 9
PIN,CRANK
€ 33.00
10-1
0926324023
ref: 10-1
09263-24026
BEARING
€ 62.50
10-2
0926324026
ref: 10-2
BEARING(24X30X20)
€ 62.50
11
1222128C11
ref: 11
CRANKSHAFT,RIGHT
€ 208.00
12
1226105D00
ref: 12
CRANKSHAFT,LEFT
€ 187.00
13
0926225066
ref: 13
BEARING(25X62X17)
€ 44.50
14
0926228014
ref: 14
BEARING(28X68X18)
€ 40.00
15
0928336006
ref: 15
09283-36007
OIL SEAL
€ 13.50
16
0928325084
ref: 16
SEAL,OIL(25X37X6)
€ 11.50
17
1235900B20
ref: 17
SPACER,PRIMARY DRIVE GEAR
€ 16.00
18
0928022001
ref: 18
O RING(D:2.4,ID:21.8)
€ 2.00
19
2111114310
ref: 19
21111-14321
GEAR,PRIMARY DRIVE
€ 46.50
20
2114127C11
ref: 20
09103-10339
BOLT,PRIMARY DRIVE GEAR
€ 11.50
21
0916411004
ref: 21
WASHER
€ 6.00
22
1210005811
ref: 22
12100-05813
TOP END KIT,ENGINE
€ 140.00
