REAR SWINGING ARM (MODEL P/R/S/T)
RMX250 1994 (P) USA (E03)

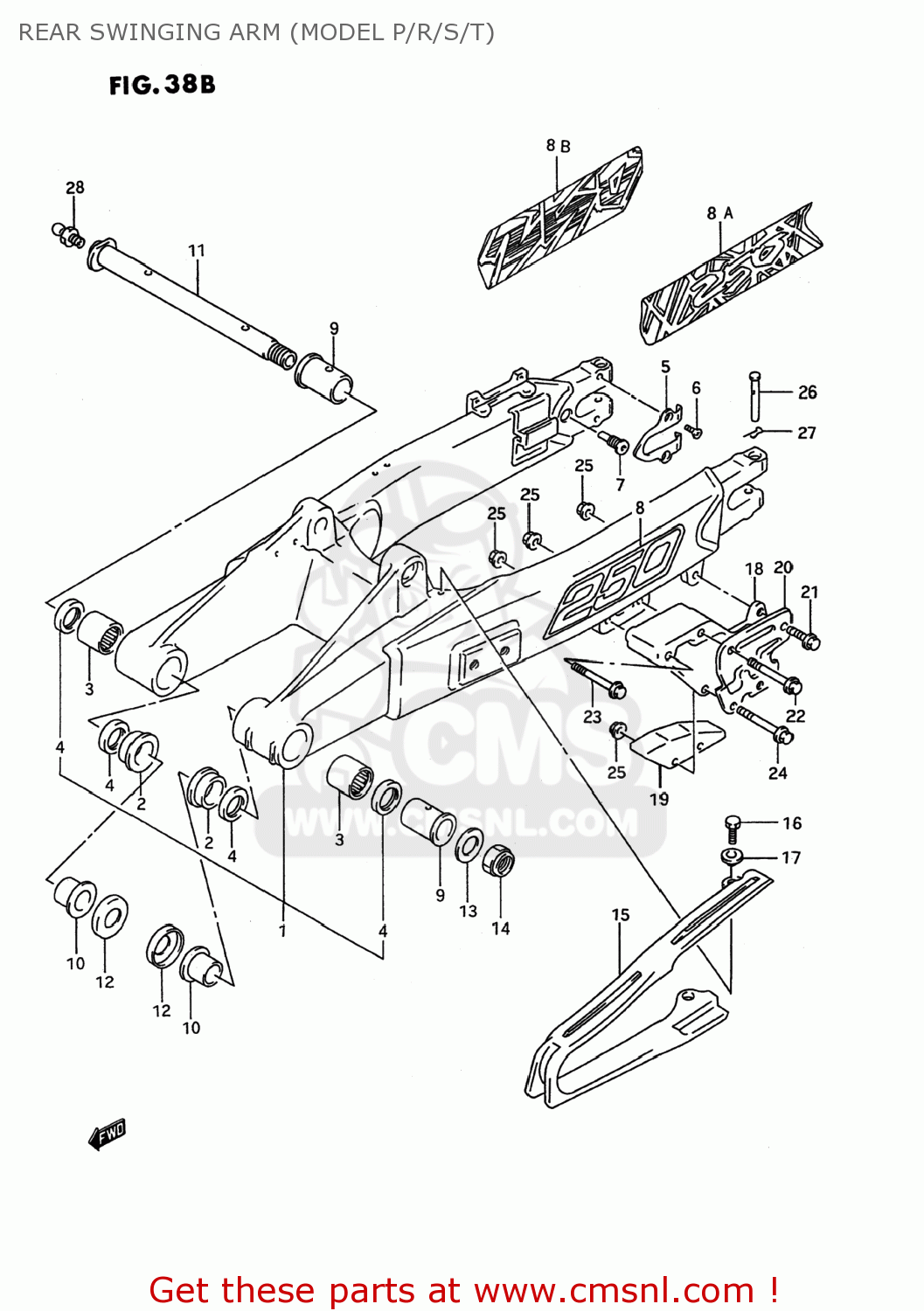

Rear swinging arm (model p/r/s/t) diagram RMX250 1994 (P) USA (E03)
REAR SWINGING ARM (MODEL P/R/S/T) RMX250 1994 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100029E00
ref: 1-1
SWING ARM ASSEMBLY,REAR
€ 1,215.50
1-1
6100029E00
ref: 1-1
SWING ARM ASSEMBLY,REAR
€ 1,215.50
1-2
6100029E20
ref: 1-2
SWING ARM ASSEMBLY,REAR
€ 1,215.50
1-2
6100029E20
ref: 1-2
SWING ARM ASSEMBLY,REAR
€ 1,215.50
1-3
6100029E30
ref: 1-3
SWING ARM ASSEMBLY,REAR
€ 1,215.50
1-4
6100029E30
ref: 1-4
SWING ARM ASSEMBLY,REAR
€ 1,215.50
2
6126128C00
ref: 2
BUSHING,SWGARM PIVOT
€ 22.00
3
0926322017
ref: 3
BEARING(22X29X30)
€ 18.50
4
0928522001
ref: 4
SEAL,OIL(22X29X4)
€ 5.00
5
6112829E00
ref: 5
PLATE,RR SWING ARM AXLE
€ 8.50
6
0912605009
ref: 6
SCREW(5X8)
€ 2.50
7
0913910001
ref: 7
SCREW (M10X21)
€ 6.50
8
6838128C1012R
ref: 8
EMBLEM,SWINGINGARM
€ 9.50
8A-1
6838129E00C2N
ref: 8A-1
EMBLEM (250)
€ 35.00
8B-1
6838137E00E8T
ref: 8B-1
EMBLEM,SWING ARM (250)
€ 21.00
8A-2
6838129E00D0K
ref: 8A-2
EMBLEM,SWING ARM (250)
€ 35.00
8B-2
6839105D00E8T
ref: 8B-2
EMBLEM,SWING ARM,LEFT
€ 0.00
9
6125105D00
ref: 9
SPACER,RR SWGARM PIVOT
€ 18.50
10
6125228C00
ref: 10
SPACER,SWGARM PIVOT INNER
€ 17.50
11
6121005D00
ref: 11
61200-05811
SHAFT COMP,SWING ARM PIVOT
€ 61.50
12
6126228C10
ref: 12
COVER,SWINGINGARM PIVOT
€ 4.50
13-1
0832211168
ref: 13-1
08322-01167
WASHER
€ 2.00
13-2
0832201163
ref: 13-2
08322-0116A
WASHER, FIXED DRIVE FACE
€ 2.00
14
0915916007
ref: 14
NUT
€ 10.50
15
6127327C01
ref: 15
BUFFER,CHAIN TOUCH DEFENSE
€ 54.00
16-1
0154706167
ref: 16-1
BOLT
€ 2.00
16-2
0154706163
ref: 16-2
01547-0616B
BOLT
€ 2.50
17
0916906057
ref: 17
WASHER
€ 4.00
18
6134127C00
ref: 18
GUIDE,CHAIN
€ 20.00
19-1
6134801B30
ref: 19-1
61348-27C20
DEFENSE,CHAIN GUIDE
€ 26.50
19-2
6134827C20
ref: 19-2
DEFENSE,CHAIN GUIDE
€ 26.50
20
6134227C00
ref: 20
PLATE,CHAIN GUIDE OUTER
€ 19.50
21-1
0154706307
ref: 21-1
BOLT
€ 2.50
21-2
0154706303
ref: 21-2
01547-0630B
BOLT,G/S SWITC
€ 3.00
22-1
0154706607
ref: 22-1
BOLT
€ 2.50
22-2
0154706603
ref: 22-2
01547-0660B
BOLT
€ 3.50
23-1
0154706557
ref: 23-1
BOLT
€ 2.50
23-2
0154706553
ref: 23-2
01547-0655B
BOLT
€ 3.00
24-1
0154706507
ref: 24-1
BOLT
€ 2.50
24-2
0154706503
ref: 24-2
01547-0650B
BOLT
€ 3.50
25
0831931067
ref: 25
NUT
€ 2.50
26
0920006065
ref: 26
PIN
€ 4.00
27
0938506012
ref: 27
CLIP
€ 2.00
28
0835111002
ref: 28
NIPPLE
€ 3.50
