FRONT WHEEL (MODEL K/L)
RMX250 1994 (P) USA (E03)

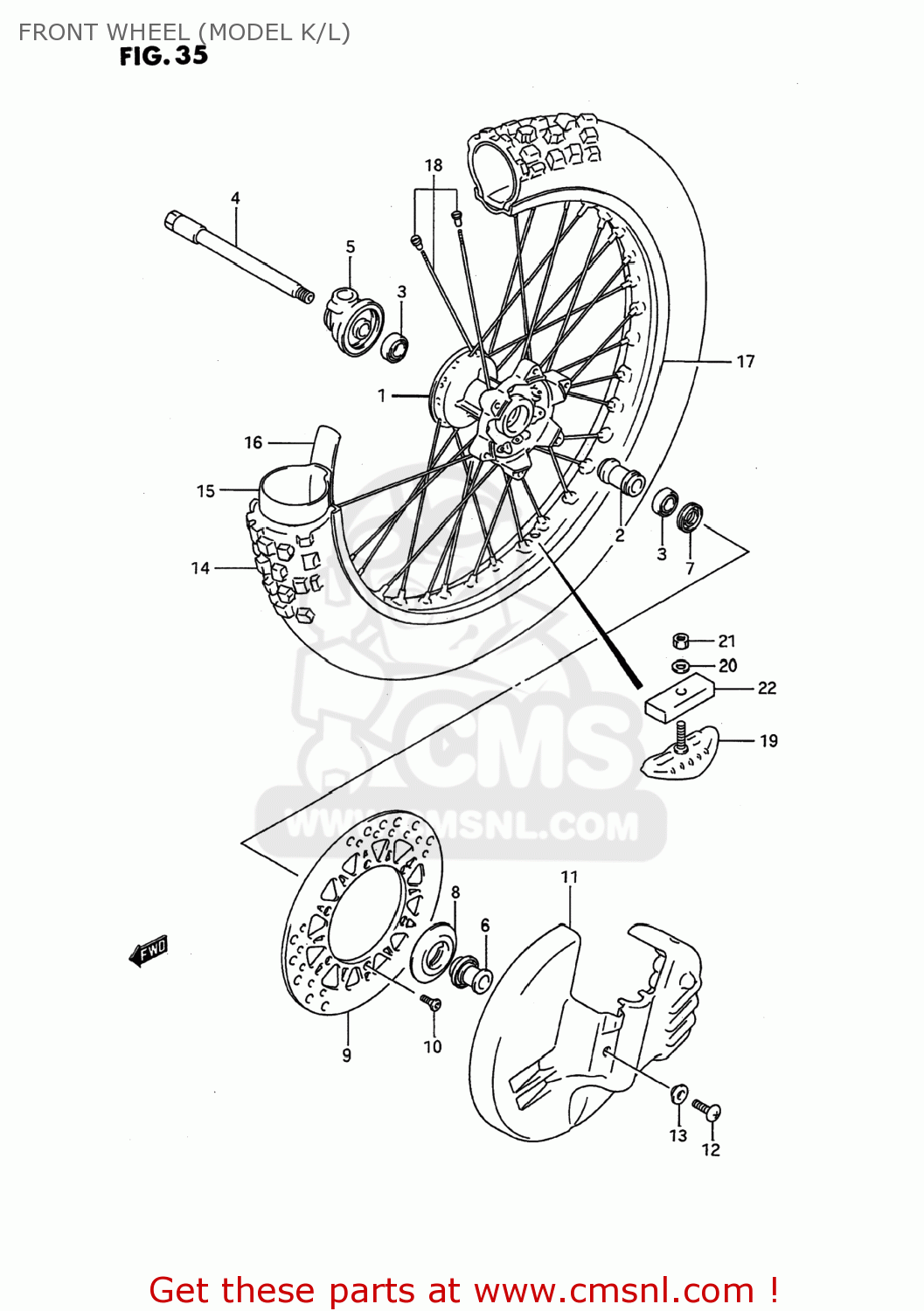

Front wheel (model k/l) diagram RMX250 1994 (P) USA (E03)
FRONT WHEEL (MODEL K/L) RMX250 1994 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411105D00
ref: 1
HUB,FRONT WHEEL
€ 172.00
2
5473001B00
ref: 2
SPACER,FR HUB BEARING
€ 34.00
3
0812360037
ref: 3
BEARING
€ 18.00
4
5471105D00
ref: 4
54711-05D01
AXLE,FRONT
€ 57.00
5
5460005D00
ref: 5
BOX ASSY,SPEEDOMETER GEAR
€ 70.00
6
5475005D00
ref: 6
SPACER,FR AXLE,L
€ 12.00
7
0928423001
ref: 7
SEAL,OIL(23X35X6)
€ 5.50
8
5413827C10
ref: 8
CAP,FR HUB,L
€ 12.00
9
5922127C00
ref: 9
59221-28C00
DISC,BRAKE
€ 193.00
10
0212206167
ref: 10
SCREW
€ 2.50
11
5923105D00
ref: 11
59231-05D01
COVER,FRONT DISC,RIGHT
€ 44.50
12
0214206127
ref: 12
SCREW 6X12
€ 2.00
13
0916906028
ref: 13
09169-06041
WASHER
€ 2.50
14
5510005D00
ref: 14
55110-28C21
TIRE,FRONT
€ 97.00
15
5520016510
ref: 15
TUBE
€ 35.50
16
5526116510
ref: 16
55261-14540
PROTECTOR,WHEEL,INNER
€ 5.50
17
5531127C00
ref: 17
55311-28C01
RIM,FRONT WHEEL (1.60X2
€ 338.00
18
5532001B00
ref: 18
55320-28E00
SPOKE SET,FRONT
€ 102.50
19
6527014300
ref: 19
STOPPER,BEAD
€ 28.50
20
0832211088
ref: 20
08322-01087
WASHER
€ 2.50
21-1
0831022088
ref: 21-1
08310-00087
NUT 8MM
€ 2.50
21-2
0831012088
ref: 21-2
08310-00087
NUT
€ 2.50
22
6527127C00
ref: 22
CUSHION,BEAD STOPPER
€ 6.00
