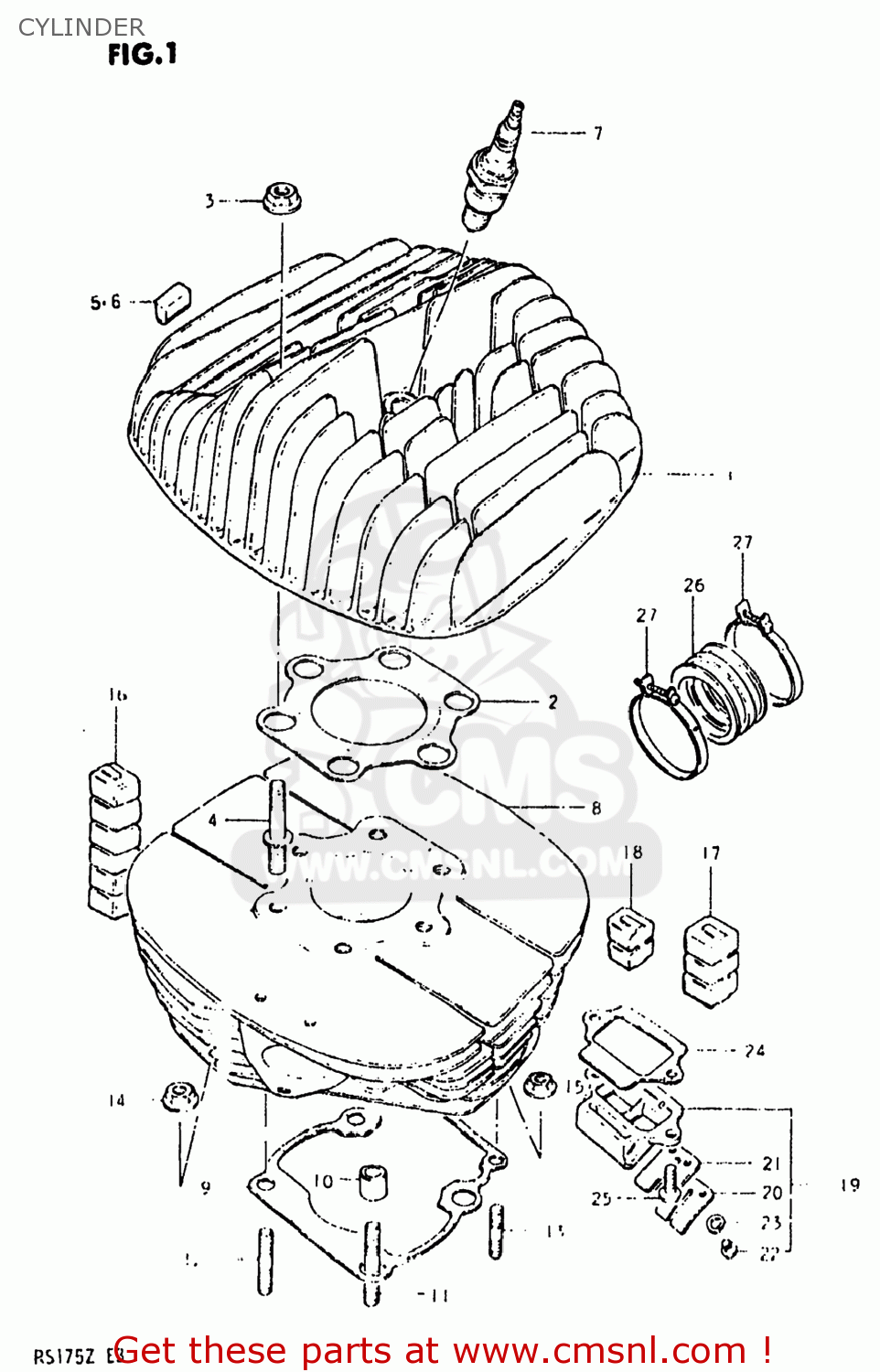

CYLINDER

ref

part #

description

quantity

1-1

1111140501
ref: 1-1
11111-40502

HEAD,CYLINDER

€ 0.00

1-2

1111140502
ref: 1-2

HEAD,CYLINDER

€ 0.00

2-1

1114140500
ref: 2-1
11141-40303

GASKET,CYLINDER HEAD (NAS)

€ 16.50

2-2

1114140501
ref: 2-2
11141-40303

GASKET,CYLINDER HEAD (NAS)

€ 16.50

2-3

1114140510
ref: 2-3
11141-40303

GASKET,CYLINDER HEAD (NAS)

€ 16.50

3

0831616088
ref: 3
08316-10087

NUT

€ 2.50

4

0910808018
ref: 4

BOLT,STUD

€ 4.00

5

1125225000
ref: 5

PAD,CYLINDER

€ 5.00

6

1125225000
ref: 6

PAD,CYLINDER

€ 5.00

7-1

0948200091
ref: 7-1

PLUG,SPARK

€ 3.00

7-2

0948200092
ref: 7-2
09482-00247-111

PLUG,SPARK(W24ES)

€ 3.50

7-3

0948200232
ref: 7-3
09482-00351

SPARK PLUG

€ 2.50

7-4

0948200160
ref: 7-4

SPARK PLUG W27ES

€ 9.00

8-1

1121040510
ref: 8-1
11210-40511

CYLINDER

€ 248.00

8-2

1121040511
ref: 8-2

CYLINDER

€ 248.00

9

1124140500
ref: 9
11241-40501

GASKET,CYLINDER (MCA)

€ 8.00

10

0920613001
ref: 10
04211-13189

PIN

€ 2.50

11-1

0142108358
ref: 11-1
01421-0835A

STUD BOLT

€ 2.00

11-2

0142108408
ref: 11-2
09108-08144

STUD 8X40

€ 2.50

12

0142108258
ref: 12
01421-0825A

STUD 8X25

€ 2.50

13

0142106258
ref: 13
01421-06257

STUD 6X25

€ 2.50

14

0831616088
ref: 14
08316-10087

NUT

€ 2.50

15

0831616068
ref: 15
08319-31067

NUT

€ 2.50

16

1125141510
ref: 16
11251-36500

PAD,CYLINDER

€ 6.50

17

1125141520
ref: 17
11251-36500

PAD,CYLINDER

€ 6.50

18

1125139110
ref: 18
11251-36500

PAD,CYLINDER

€ 6.50

19

1315040200
ref: 19

VALVE ASSY,REED

€ 110.50

20

1315240200
ref: 20
13150-40200

STOPPER,REED VALVE

€ 110.50

21

1315340200
ref: 21

VALVE,REED

€ 10.00

22

0211203088
ref: 22
02112-03087

SCREW

€ 1.50

23

0832121038
ref: 23
09162-03001

LOCK WASHER

€ 1.50

24

1315640200
ref: 24
13156-40200-H17

GASKET,REED VALVE (MCA)

€ 7.50

25

0211206168
ref: 25
02112-06167

SCREW

€ 2.50

26

1311140500
ref: 26

PIPE,INTAKE

€ 19.00

27

0940252306
ref: 27

CLAMP

€ 6.00
