MAGNETO
RS175 1981 (X) USA (E03)

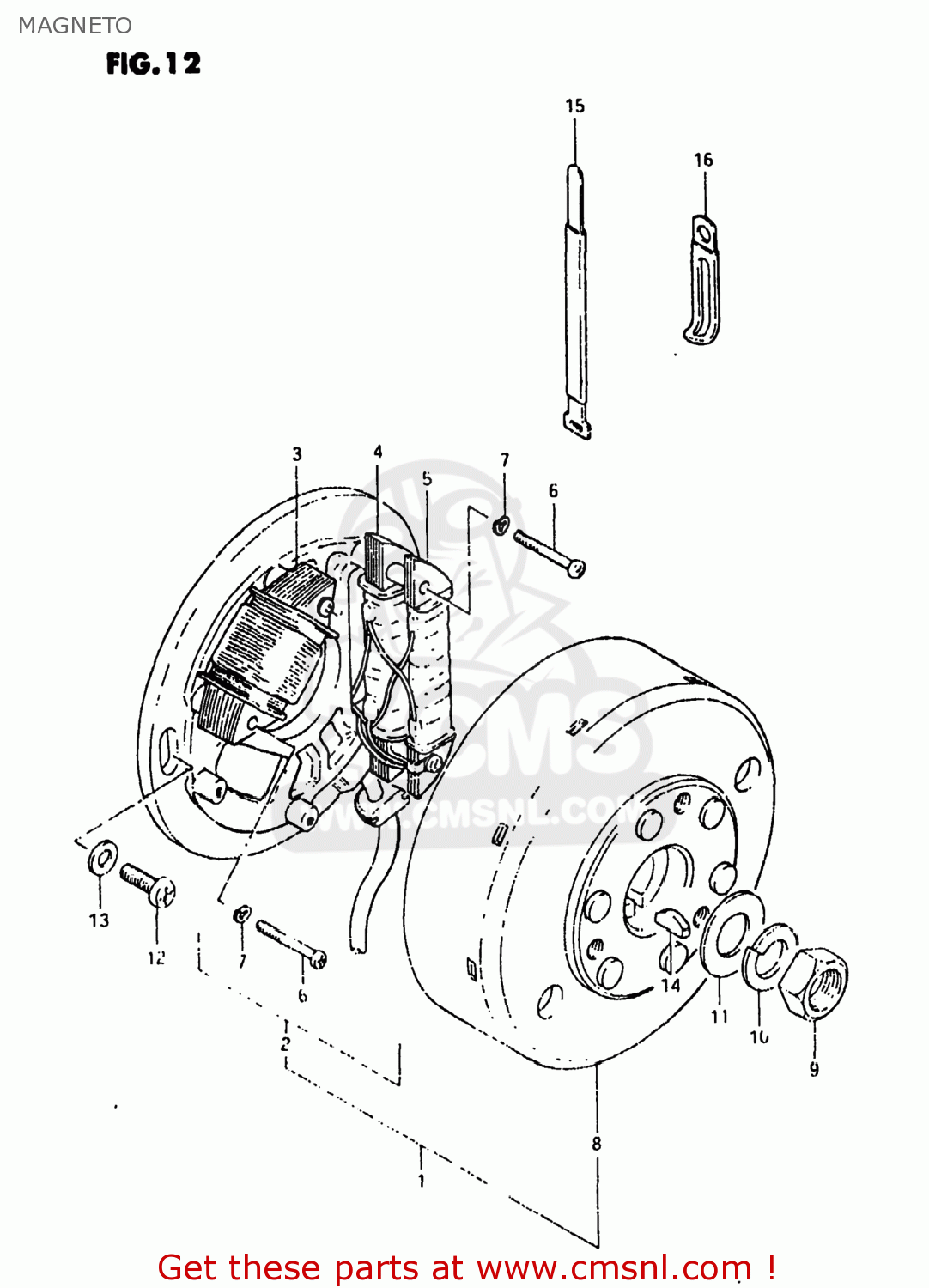

Magneto diagram RS175 1981 (X) USA (E03)
MAGNETO RS175 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210040520
ref: 1
MAGNETO ASSEMBLY
€ 275.00
2
3210140520
ref: 2
32101-40521
STATOR ASSEMBLY
€ 275.00
3
3212041420
ref: 3
32101-40521
COIL,LIGHTING
€ 275.00
4
3214040520
ref: 4
32140-39160
COIL
€ 66.00
5
3215040520
ref: 5
COIL,PRIMARY
€ 56.00
6
0211204308
ref: 6
09125-04023
SCREW (4X30)
€ 1.50
7
0832121048
ref: 7
08321-0104A
LOCK WASHER
€ 2.00
8
3210240520
ref: 8
32102-40541
ROTOR ASSEMBLY
€ 333.00
9
0914010003
ref: 9
09140-10041
NUT (10MM)
€ 3.50
10
0832121108
ref: 10
08321-01107
LOCK WASHER
€ 2.00
11
0832221108
ref: 11
08322-01107
WASHER
€ 2.50
12
0211206168
ref: 12
02112-06167
SCREW
€ 2.50
13
0832221068
ref: 13
08322-01067
WASHER
€ 2.00
14
0834131049
ref: 14
09420-04008
KEY 4MM
€ 3.50
15
0940711301
ref: 15
09407-18301
CLAMP L:110
€ 6.00
16
0940406412
ref: 16
09404-06432
CLAMP
€ 2.50
