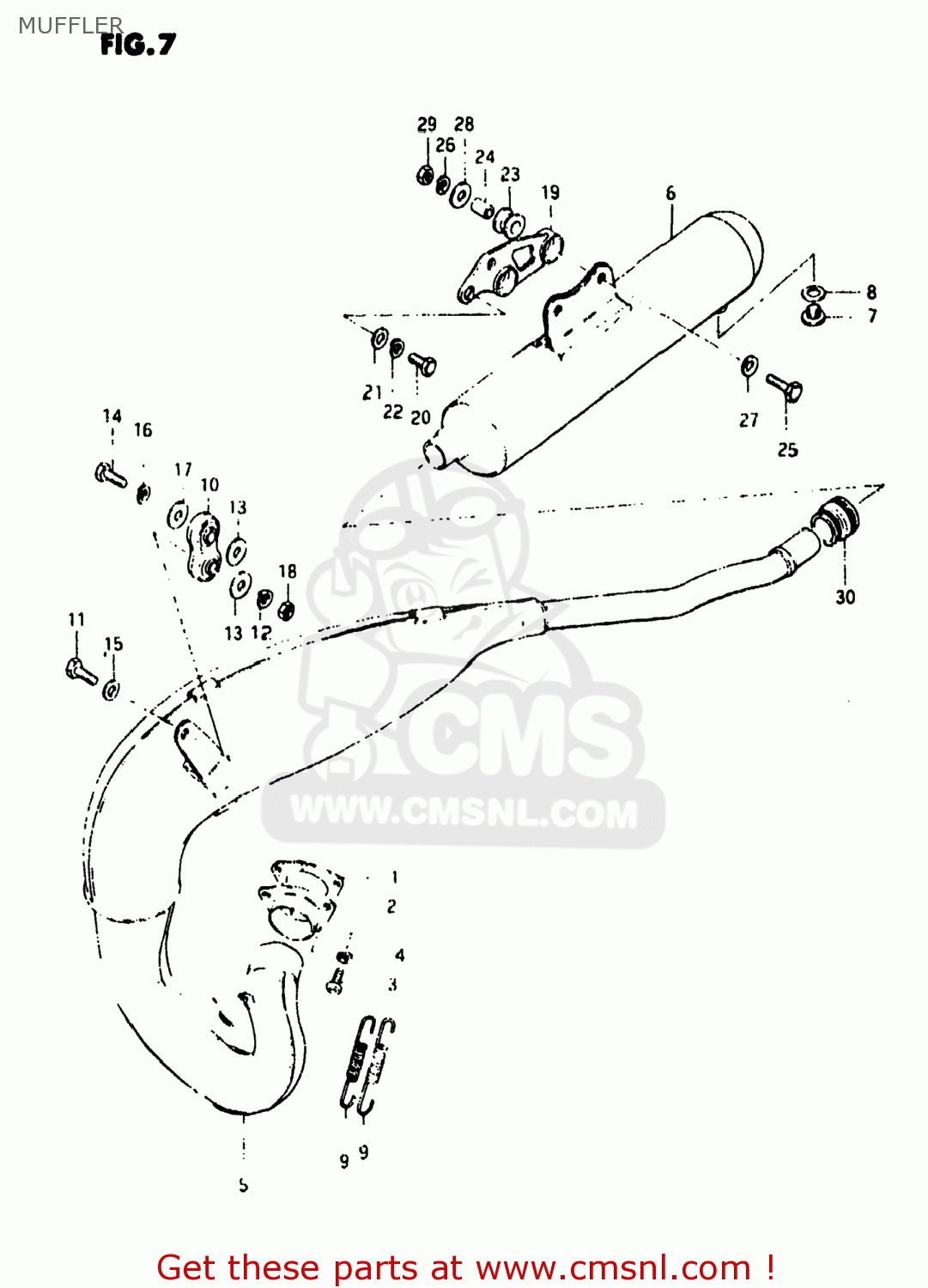

MUFFLER

ref

part #

description

quantity

1

1418116300
ref: 1
14181-16300-H17

GASKET,EXHAUST PIPE (MCA)

€ 4.00

2

1417016300
ref: 2
14170-16301

FLANGE,EXHAUST PIPE

€ 70.50

3

0211206208
ref: 3
02112-06207

SCREW

€ 2.00

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5

1431040510
ref: 5
14310-40510-H01

MUFFLER ASSEMBLY,FIRST

€ 123.50

6-1

1430340500
ref: 6-1
14303-40501

MUFFLER ASSEMBLY

€ 91.00

6-2

1430340501
ref: 6-2

MUFFLER ASSEMBLY,SECOND

€ 91.00

7

0924712103
ref: 7

PLUG(12X9)

€ 3.50

8

0916812003
ref: 8

GASKET(12X16X2) (NAS)

€ 2.00

9

0944311002
ref: 9

SPRING

€ 4.50

10

1477040000
ref: 10

DAMPER,MUFFLER

€ 139.00

11

0110708358
ref: 11
01500-0835B

BOLT

€ 3.50

12

0832121088
ref: 12
08321-01087

LOCK WASHER

€ 2.00

13

0916008035
ref: 13
09160-08130

WASHER

€ 2.00

14

0110708358
ref: 14
01500-0835B

BOLT

€ 3.50

15

0832211088
ref: 15
08322-01087

WASHER

€ 2.00

16

0832121088
ref: 16
08321-01087

LOCK WASHER

€ 2.00

17

0916008035
ref: 17
09160-08130

WASHER

€ 2.00

18

0831012088
ref: 18
08310-00087

NUT

€ 2.00

19-1

1477040600
ref: 19-1
14770-40501

DAMPER,MUFFLER SUPPORT

€ 27.50

19-2

1477040601
ref: 19-2
14770-40501

DAMPER,MUFFLER SUPPORT

€ 27.50

20

0110708168
ref: 20
01500-0816B

BOLT

€ 2.00

21

0832211088
ref: 21
08322-01087

WASHER

€ 2.00

22

0832121088
ref: 22
08321-01087

LOCK WASHER

€ 2.00

23

0932012026
ref: 23
09320-12043

CUSHION

€ 8.00

24

0918008032
ref: 24
09180-08143

SPACER (8.2X12X17)

€ 5.00

25

0110708358
ref: 25
01500-0835B

BOLT

€ 3.50

26

0832121088
ref: 26
08321-01087

LOCK WASHER

€ 2.00

27

0832211088
ref: 27
08322-01087

WASHER

€ 2.00

28

0916008002
ref: 28
09160-08135

WASHER (8.5X29X1.6)

€ 2.00

29

0831012088
ref: 29
08310-00087

NUT

€ 2.00

30

1477141501
ref: 30
14771-12B00

CONNECTOR,MUFFLER

€ 16.00

all assemblies
