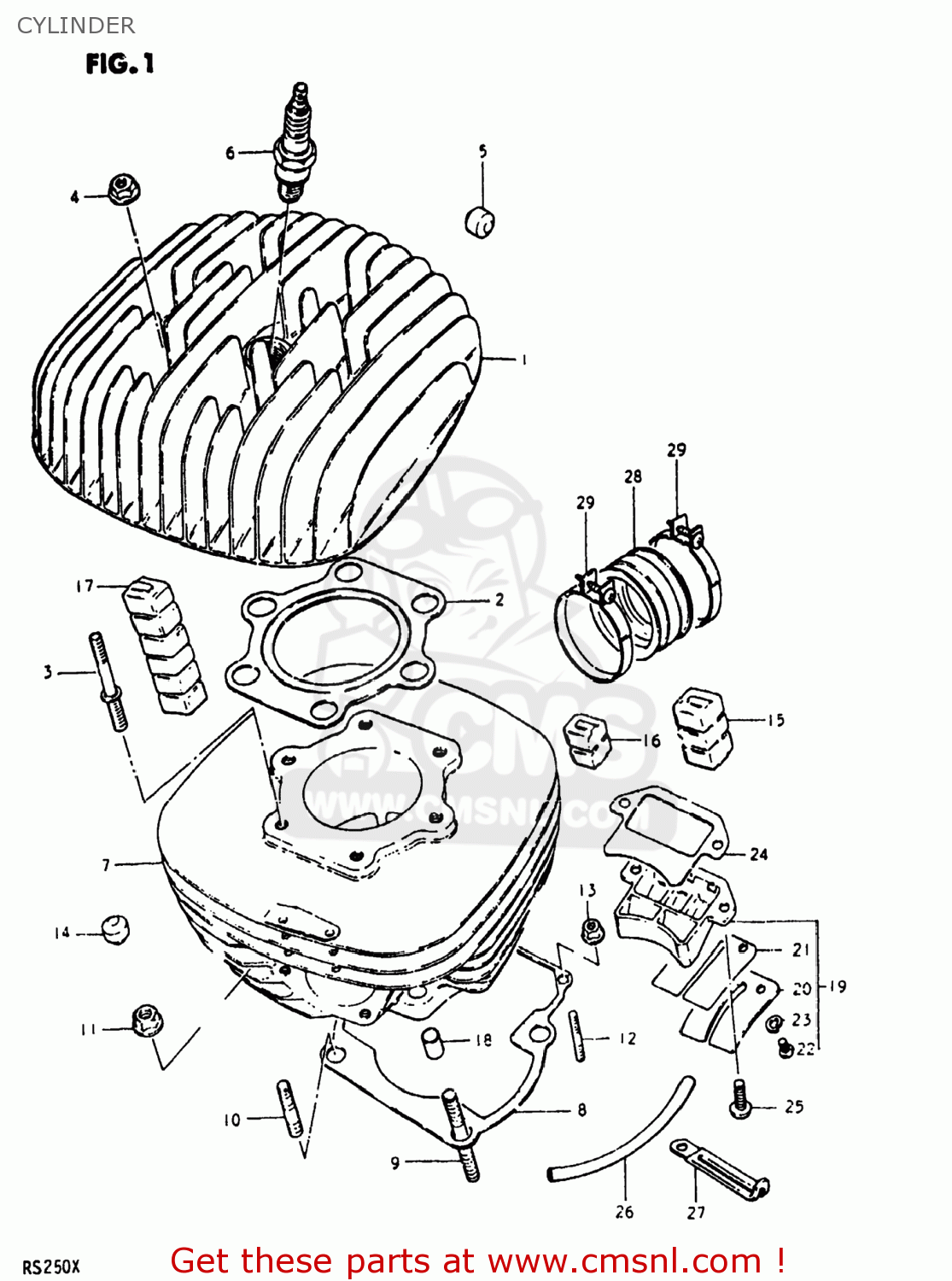

CYLINDER

ref

part #

description

quantity

1

1111140301
ref: 1

HEAD,CYLINDER

€ 206.00

2-1

1114140301
ref: 2-1
11141-40303

GASKET,CYLINDER HEAD (NAS)

€ 16.50

2-2

1114140303
ref: 2-2

GASKET,CYLINDER HEAD (NAS)

€ 16.50

3

0910808018
ref: 3

BOLT,STUD

€ 4.00

4

0831616088
ref: 4
08316-10087

NUT

€ 2.50

5

1125238001
ref: 5

PAD,CYLINDER HEAD

€ 3.50

6-1

0948200092
ref: 6-1
09482-00247-111

PLUG,SPARK(W24ES)

€ 3.50

6-2

0948200091
ref: 6-2

PLUG,SPARK

€ 3.00

6-3

0948200232
ref: 6-3
09482-00351

SPARK PLUG

€ 2.50

6-4

0948200231
ref: 6-4
09482-00160

SPARK PLUG

€ 9.00

7-1

1121040610
ref: 7-1
11210-40601

CYLINDER

€ 201.50

7-2

1121040611
ref: 7-2

CYLINDER

€ 201.50

8

1124140301
ref: 8
11241-40301-H17

GASKET,CYLINDER (MCA)

€ 4.50

9

0142110408
ref: 9
01421-1040A

STUD BOLT (L:40)

€ 2.00

10

0142110258
ref: 10
01421-1025B

STUD 10X25

€ 3.00

11

0831616108
ref: 11
08316-10107

NUT

€ 2.00

12

0142106208
ref: 12
01421-0620A

STUD 6X20

€ 2.50

13

0831616068
ref: 13
08319-31067

NUT

€ 2.50

14

1125238001
ref: 14

PAD,CYLINDER HEAD

€ 3.50

15

1125130510
ref: 15
11251-30530

PAD,CYLINDER

€ 6.00

16

1125130520
ref: 16
11251-30530

PAD,CYLINDER

€ 6.00

17

1125130530
ref: 17

PAD,CYLINDER

€ 6.00

18

0920613001
ref: 18
04211-13189

PIN

€ 2.50

19

1315040400
ref: 19

VALVE ASSEMBLY,REED

€ 184.50

20

1315240400
ref: 20

STOPPER,REED VALVE

€ 6.50

21

1315340400
ref: 21

VALVE,REED

€ 184.50

22

0211203088
ref: 22
02112-03087

SCREW

€ 1.50

23

0832121038
ref: 23
09162-03001

LOCK WASHER

€ 1.50

24

1315640400
ref: 24
13156-40400-H17

GASKET,REED VALVE (MCA)

€ 6.50

25

0211206168
ref: 25
02112-06167

SCREW

€ 2.50

26

0934304010
ref: 26
09352-40703-600

HOSE

€ 3.00

27

0940406412
ref: 27
09404-06432

CLAMP

€ 2.50

28

1311140401
ref: 28

PIPE,INTAKE

€ 99.00

29

0940256306
ref: 29
09402-56901

CLAMP

€ 3.50
