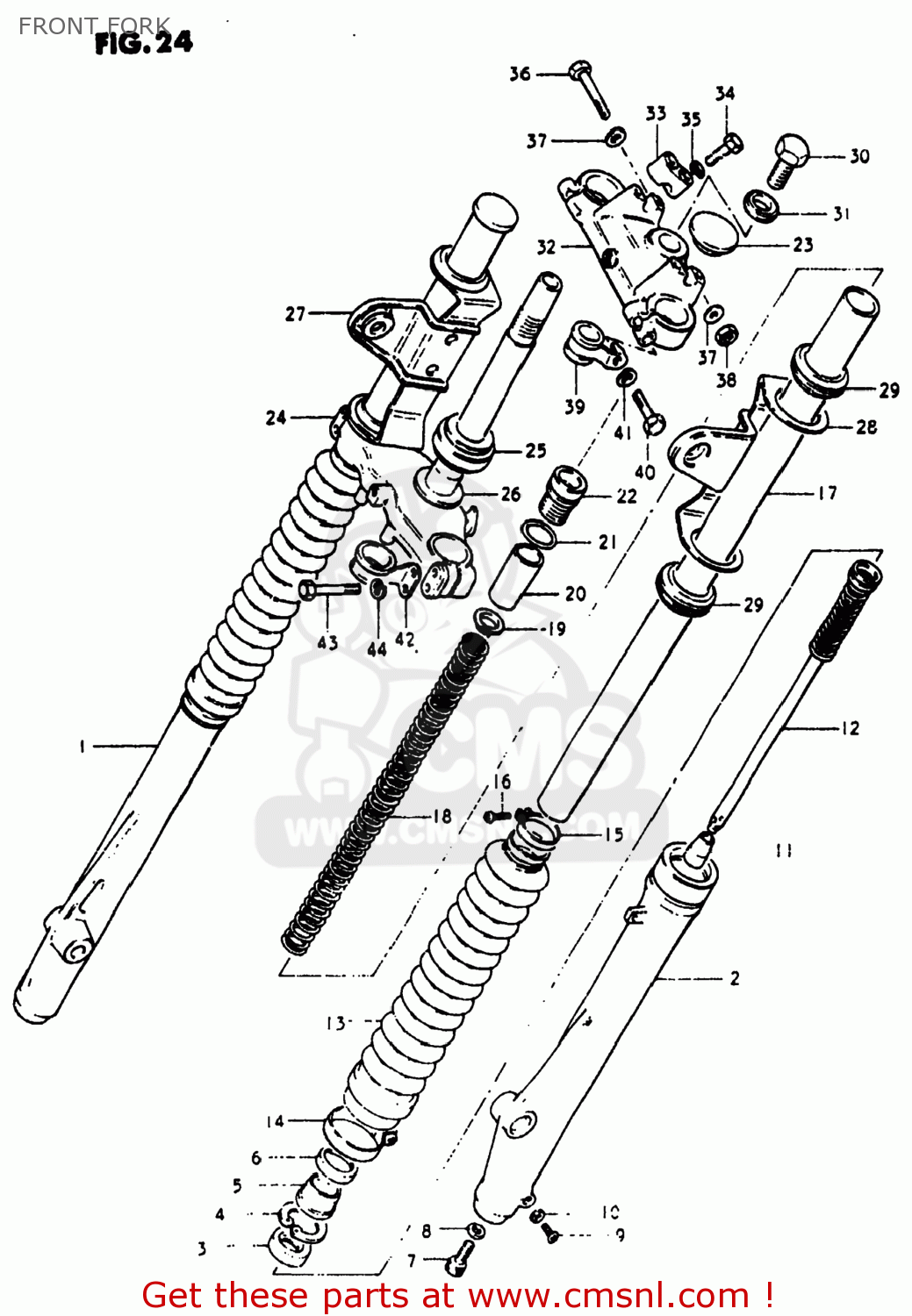

FRONT FORK

ref

part #

description

quantity

0-1

511004065008C
ref: 0-1

DAMPER SET

€ 333.50

0-2

511004065108C
ref: 0-2

DAMPER SET

€ 509.00

1

5113037200
ref: 1
51130-37400

TUBE,OUTER,RIGHT

€ 90.50

2

5114037200
ref: 2
51140-37400

TUBE,OUTER,LEFT

€ 86.00

3

5115341211
ref: 3
51153-16730

OIL SEAL,FRONT FORK

€ 28.50

4

5115630400
ref: 4

5115630400

5

5117340500
ref: 5

SEAL,DUST

€ 9.00

6

5114940500
ref: 6

CASE,DUST SEAL

€ 7.50

7

5114716510
ref: 7

BOLT,FORK CYLINDER(10X25)

€ 3.50

8

5114841310
ref: 8

GASKET (NAS)

€ 2.50

9

0211204088
ref: 9
02112-04087

SCREW

€ 1.50

10

5118303010
ref: 10

GASKET,DRAIN,PLUG (NAS)

€ 3.00

11

5119541210
ref: 11
51195-49071

PIECE,OIL LOCK

€ 12.00

12-1

5114640550
ref: 12-1

CYLINDER,FRONT FORK

€ 27.50

12-2

5114640551
ref: 12-2

CYLINDER,FRONT FORK

€ 28.50

13

5157141211
ref: 13
51571-38265-38K

BOOT

€ 38.00

14

5157341410
ref: 14

BAND,FRONT FORK COVER

€ 10.00

15

5157541410
ref: 15

BAND,BOOT

€ 8.00

16

0211204168
ref: 16
02112-0416A

SCREW

€ 1.00

17

5111037200
ref: 17

TUBE,FORK,INNER

€ 96.00

18-1

5117140650
ref: 18-1

SPRING

€ 15.50

18-2

5117140660
ref: 18-2

SPRING

€ 18.00

19

5117238010
ref: 19

GUIDE,FRONT FORK SPRING C

€ 9.50

20-1

5117641010
ref: 20-1

SPACER,SPRING

€ 0.00

20-2

5117638010
ref: 20-2

COLLAR,SPRING

€ 0.00

21

5111716310
ref: 21

O RING

€ 4.50

22

5135130520
ref: 22

CAP,FORK INNER TUBE

€ 9.00

23

5118932400
ref: 23
51189-30520

CAP,FRONT FORK

€ 11.50

24

514104055008C
ref: 24
51410-40510-08C

STEM,STEERING

€ 121.50

25

0926530005
ref: 25
09265-30009

BEARING

€ 49.50

26

0821130402
ref: 26
09181-30184

WASHER,THRUST

€ 4.00

27

5153040550291
ref: 27

BRACKET,HEADLAMP,RIGHT

€ 19.00

28

5154040550291
ref: 28

BRACKET,HEADLAMP,LEFT

€ 20.50

29

5155341410
ref: 29

CUSHION,HEADLAMP BRACKET

€ 5.50

30

5135141320
ref: 30

BOLT

€ 8.50

31

5135641310
ref: 31

WASHER

€ 6.00

32

513114050008C
ref: 32

HEAD,STEERING STEM

€ 287.50

33

562114030008C
ref: 33

HOLDER,HANDLEBAR

€ 7.00

34

0110708358
ref: 34
01500-0835B

BOLT

€ 3.50

35

0832121088
ref: 35
08321-01087

LOCK WASHER

€ 2.00

36

0110708508
ref: 36
01500-08507

BOLT 8X50

€ 3.00

37

0832221088
ref: 37
08322-01087

WASHER

€ 2.00

38

0831012088
ref: 38
08310-00087

NUT

€ 2.00

39

5862140500
ref: 39

GUIDE,CABLE

€ 8.00

40

0110710458
ref: 40
01500-1045A

BOLT

€ 2.00

41

0832121108
ref: 41
08321-01107

LOCK WASHER

€ 2.00

42

5862140301
ref: 42

CLIP,CABLE

€ 14.50

43

0110708458
ref: 43
01500-08453

BOLT 8X45

€ 2.50

44

0832121088
ref: 44
08321-01087

LOCK WASHER

€ 2.00
