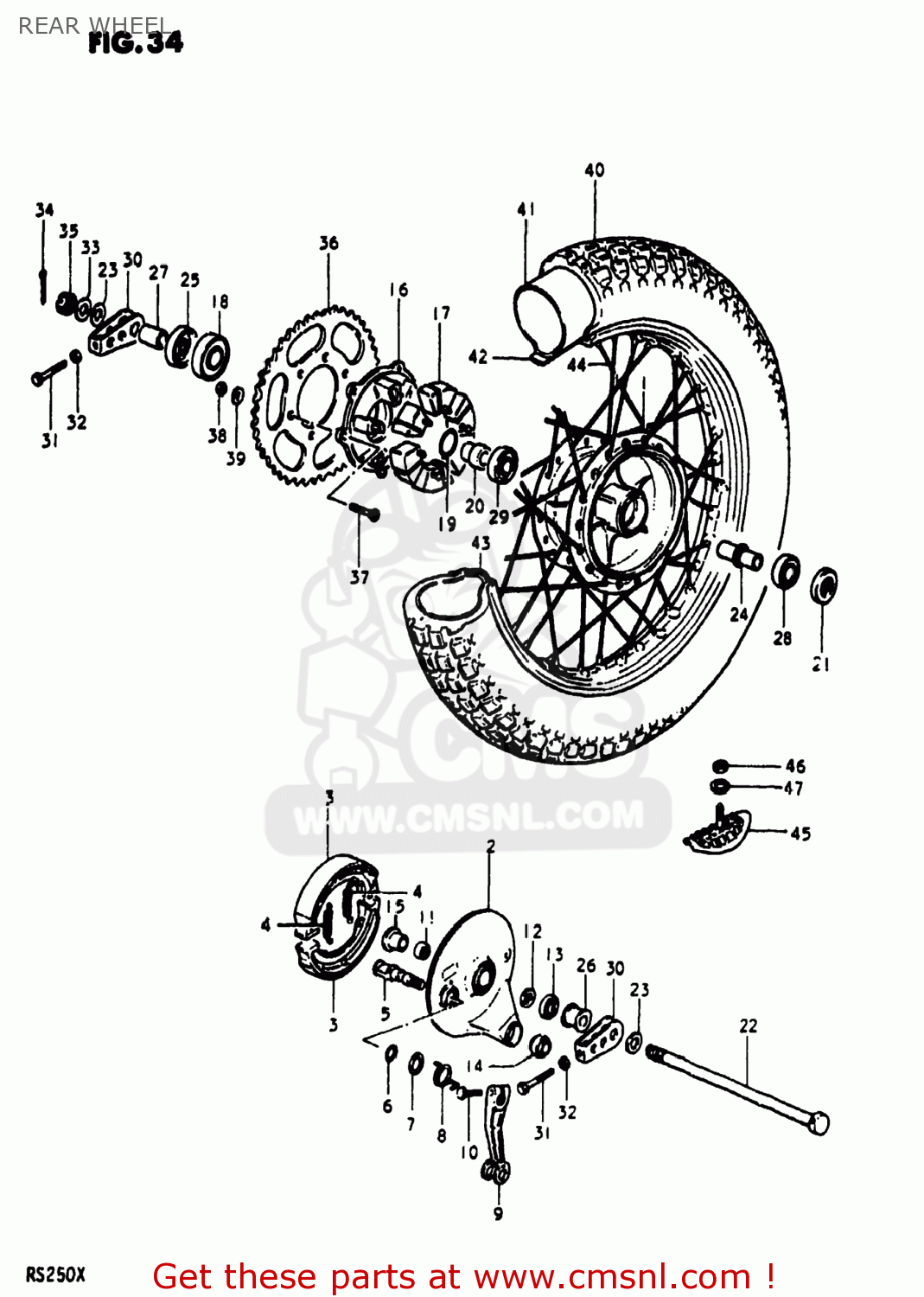

REAR WHEEL

ref

part #

description

quantity

1

6411037200
ref: 1

DRUM,REAR HUB

€ 234.00

2

6421037200
ref: 2

PANEL,REAR HUB

€ 129.50

3

5441032400
ref: 3
64400-02830

SHOE,BRAKE (MCA)

€ 35.00

4

5542041100
ref: 4

SPRING

€ 5.50

5

5444008003
ref: 5
54440-08004

CAM,FRONT BRAKE

€ 19.00

6

0928015001
ref: 6
09280-15003

O-RING,BOSS

€ 2.00

7

0916015001
ref: 7
09160-15048

WASHER (15X24X1.6)

€ 2.50

8

0944833006
ref: 8

SPRING

€ 11.00

9

6445137200
ref: 9

LEVER,REAR BRAKE CAM

€ 18.00

10

0110706258
ref: 10
01500-06257

BOLT

€ 2.00

11

0926324013
ref: 11

BEARING(24X31X28)

€ 25.00

12

0821117361
ref: 12

WASHER

€ 2.00

13

6484537200
ref: 13

CVR,RR BRAKE AHR PNL DUST SEAL

€ 12.00

14-1

6435240400
ref: 14-1
64352-40401

SPHERICAL BEARING,TORQUE

€ 69.50

14-2

6435240401
ref: 14-2

SPHERICAL BRNG,TORQUE LINK

€ 69.50

15

6421337200
ref: 15

SPACER,REAR HUB PANEL

€ 25.00

16

6461140600
ref: 16

DRUM,REAR SPROCKET MOUNT

€ 48.50

17

6465137200
ref: 17

ABSORBER,RR HUB SHOCK

€ 10.00

18

0811362057
ref: 18

BEARING

€ 18.00

19

0928058001
ref: 19
09280-58003

O-RING

€ 3.00

20

6473337200
ref: 20

SPACER,REAR SPROCKET DRUM

€ 13.00

21

0928555002
ref: 21

OIL SEAL

€ 9.00

22

6471133000
ref: 22
64711-3300V

AXLE,REAR

€ 33.50

23

0916017013
ref: 23
09160-17050

WASHER (17X30X3.2)

€ 2.00

24

6473037200
ref: 24

SPACER,REAR HUB BEARING

€ 13.00

25

0928530001
ref: 25

SEAL,OIL(30.5X52X8)

€ 20.00

26

6474140650
ref: 26

SPACER,REAR AXLE,RIGHT

€ 8.50

27

0918017055
ref: 27

SPACER(17X30.5X16.3)

€ 8.00

28

0814363037
ref: 28

BEARING

€ 23.00

29

0814363037
ref: 29

BEARING

€ 23.00

30

6141037200
ref: 30

ADJUSTER,CHAIN

€ 7.50

31

0910408006
ref: 31
09104-08034

BOLT

€ 3.00

32

0831012088
ref: 32
08310-00087

NUT

€ 2.00

33-1

0832211168
ref: 33-1
08322-01167

WASHER

€ 2.00

33-2

0916017013
ref: 33-2
09160-17050

WASHER (17X30X3.2)

€ 2.00

34

0411140308
ref: 34
04111-4030A

PIN,COTTER

€ 1.50

35

0914116001
ref: 35

NUT

€ 6.50

36

6451140430
ref: 36

SPROCKET,REAR (NT:52)(AL)

€ 73.50

37

0912008004
ref: 37

SCREW(8X33.5)

€ 3.00

38

0831931088
ref: 38
08319-3108A

NUT

€ 2.50

39

0832211088
ref: 39
08322-01087

WASHER

€ 2.00

40-1

6510040430
ref: 40-1
65100-14230

TIRE

€ 0.00

40-2

6510014230
ref: 40-2

TIRE

€ 0.00

41

6520041110
ref: 41
65200-16510

TUBE ASSEMBLY,WHEEL,INNER

€ 16.00

42-1

6526116510
ref: 42-1
65261-33030

PROTECTOR,WHEEL,INNER

€ 5.50

42-2

6526115030
ref: 42-2
55261-11010

PROTECTOR,WHEEL,INNER

€ 3.50

43-1

6531137200
ref: 43-1

RIM,REAR WHEEL

€ 85.00

43-2

6531137250
ref: 43-2

RIM,REAR WHEEL 2.15X18)(

€ 133.00

44-1

6532037200
ref: 44-1
65320-37201

SPOKE SET,REAR WHEEL

€ 79.00

44-2

6532037250
ref: 44-2

SPOKE SET,REAR

€ 0.00

45

6527032101
ref: 45
65270-28E00

STOPPER,BEAD

€ 38.00

46

0831012088
ref: 46
08310-00087

NUT

€ 2.00

47

0832211088
ref: 47
08322-01087

WASHER

€ 2.00
