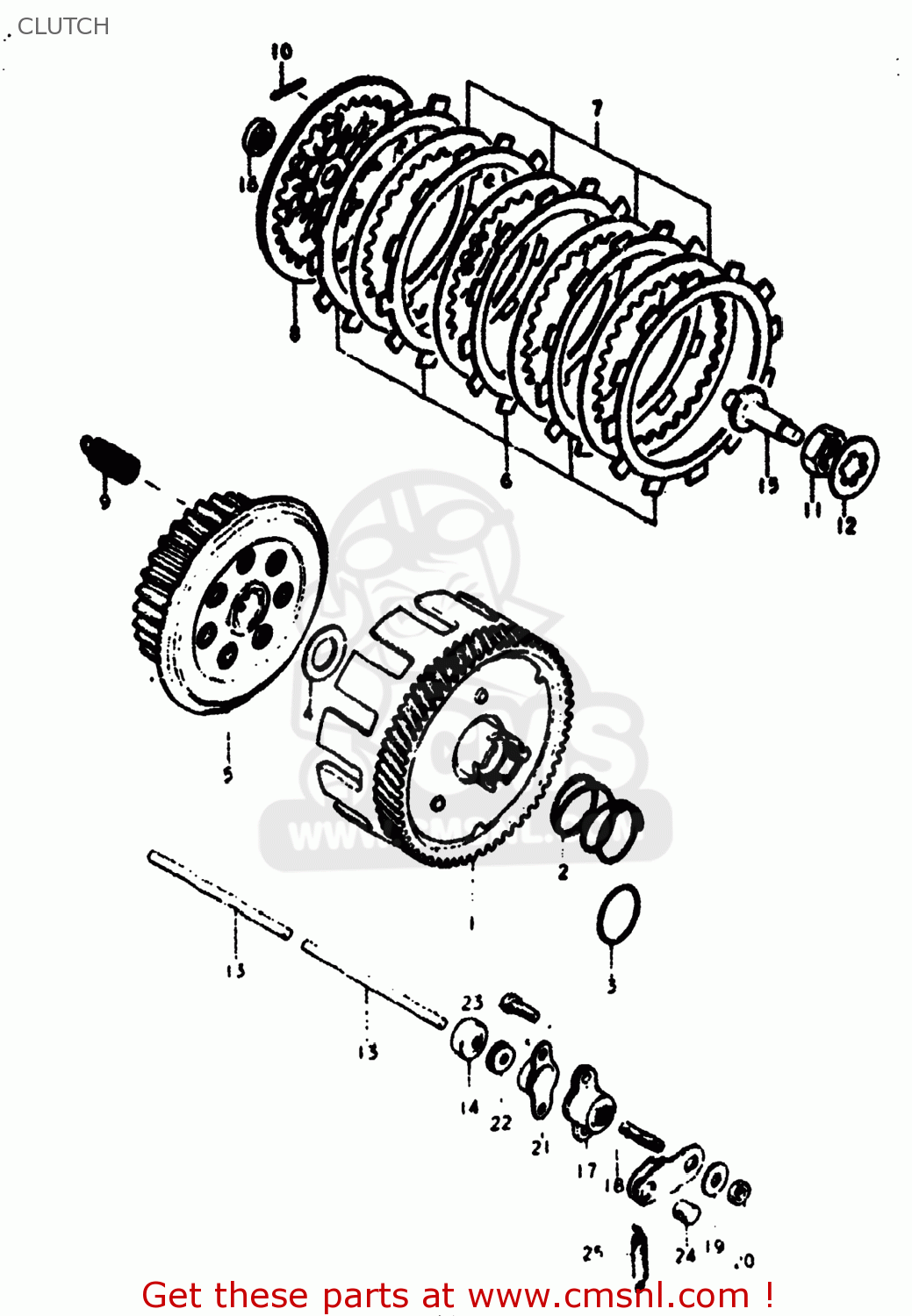

CLUTCH

ref

part #

description

quantity

1

2120028000
ref: 1
21200-28002

GEAR ASSEMBLY,PRIMARY DRIVE

€ 187.00

2

0944032001
ref: 2

SPRING

€ 2.00

3

0938030001
ref: 3

SPRING

€ 2.00

4

0821117282
ref: 4

WASHER

€ 3.00

5

2141028000
ref: 5

HUB,CLUTCH SLEEVE

€ 68.50

6

2144128300
ref: 6
21441-13A01

PLATE,CLUTCH DRIVE

€ 8.50

7

2145128000
ref: 7
21451-19A00

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

8

2146028000
ref: 8

PLATE,CLUTCH PRESSURE

€ 21.50

9

0944312015
ref: 9

SPRING

€ 3.00

10

0926102001
ref: 10

PIN(2.5X19.8)

€ 1.50

11

0914016001
ref: 11

NUT

€ 4.50

12

0916717002
ref: 12

WASHER,LOCK

€ 2.00

13

2311128000
ref: 13
23111-34C00

ROD,CLUTCH PUSH

€ 15.50

14

0928506006
ref: 14
09285-06019

OIL SEAL

€ 13.00

15

2312114000
ref: 15

ROD,CLUTCH RELEASE

€ 13.50

16

0928410002
ref: 16

SEAL,OIL (10X17X5)

€ 3.50

17

2320028001
ref: 17

SCREW ASSY,CLUTCH RELEASE

€ 44.50

18

0913406001
ref: 18
09134-06010

SCREW

€ 3.00

19

0916006019
ref: 19

WASHER(6.5X16X1.2)

€ 1.50

20

0831131068
ref: 20
08310-00067

NUT

€ 2.50

21

2324123000
ref: 21

COVER,CLUTCH RELEASE SCREW

€ 12.00

22

0928105001
ref: 22

SEAL,DUST(5.3X13X5)

€ 2.50

23

0211205168
ref: 23
02112-05167

SCREW

€ 2.50

24

2322207000
ref: 24

PIECE,RELEASE ARM END

€ 5.00

25

0944308001
ref: 25

SPRING

€ 3.00
