REAR COMBINATION LAMP
RV125 1973 (K) USA (E03)

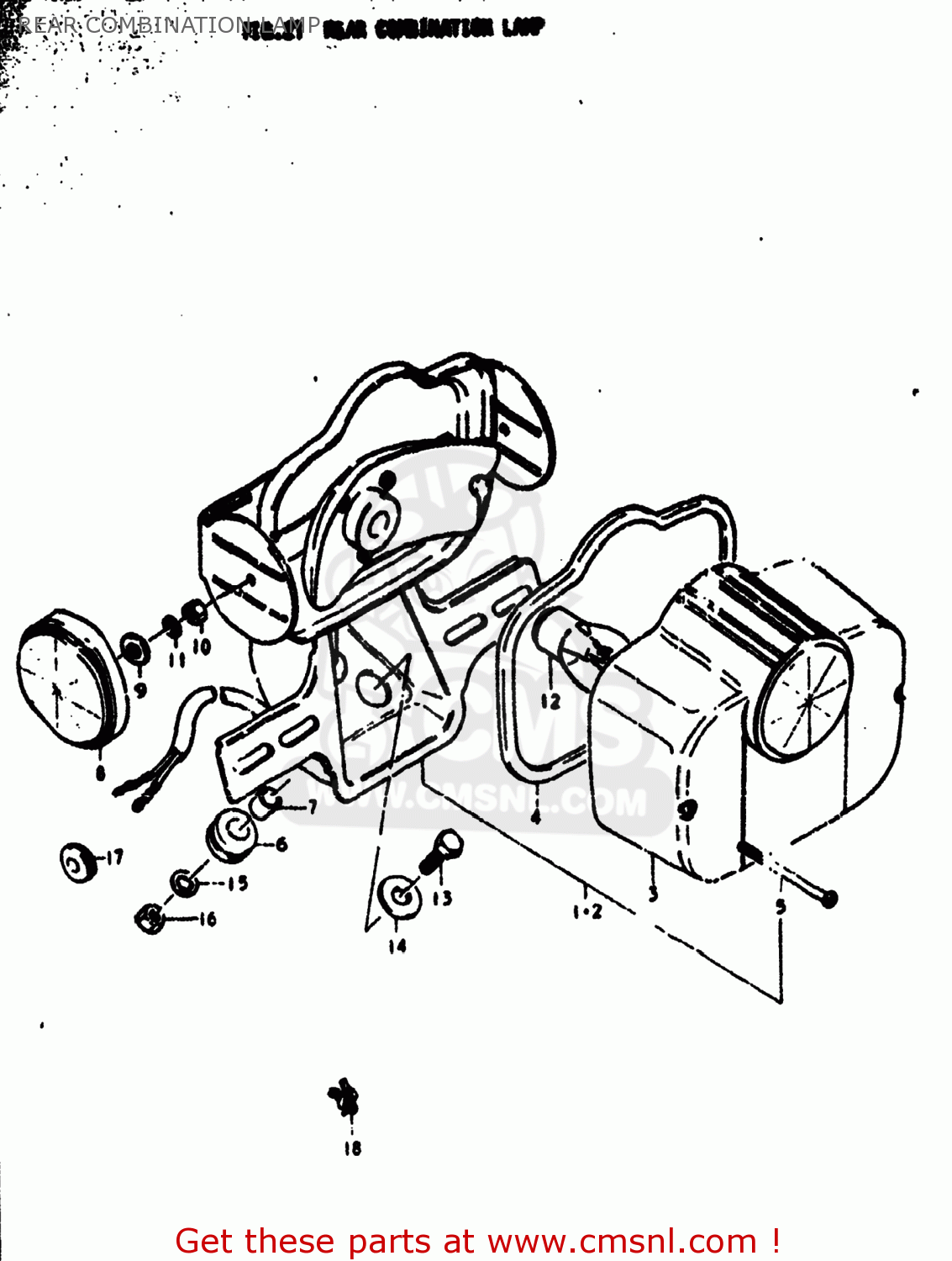

Rear combination lamp diagram RV125 1973 (K) USA (E03)
REAR COMBINATION LAMP RV125 1973 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3570027820
ref: 1
35710-27640
LAMP ASSEMBLY,REAR COMBINATION
€ 171.50
2
3571027640
ref: 2
LAMP ASSEMBLY,REAR COMBINATION
€ 171.50
2
3571027640
ref: 2
LAMP ASSEMBLY,REAR COMBINATION
€ 171.50
3
3571227630
ref: 3
35712-23011
LENS,REAR COMBINATION LAMP
€ 50.50
4
3571327630
ref: 4
GASKET (NAS)
€ 5.50
5
0211104558
ref: 5
02112-04558
SCREW
€ 1.50
6
3576515010
ref: 6
CUSHION
€ 9.00
7
3576615010
ref: 7
35766-37110
SPACER,REAR COMBINATION LAMP
€ 11.50
8-1
3597031610
ref: 8-1
REFLECTOR,REFLEX
€ 19.50
8-2
3597045610
ref: 8-2
35970-30910
REFLECTOR,REFLEX
€ 47.50
9
3572738010
ref: 9
WASHER,REAR COMBINATION LAMP
€ 0.00
10
0831111058
ref: 10
08310-00057
NUT
€ 2.50
11
0832121058
ref: 11
08321-0105A
LOCK WASHER
€ 2.00
12
0947106030
ref: 12
BULB(6V32/3CP,STANLEY)
€ 12.50
13-1
0111206208
ref: 13-1
01500-06207
BOLT
€ 2.00
13-2
0111206168
ref: 13-2
01500-06167
BOLT
€ 3.00
14-1
0916006020
ref: 14-1
09160-06066
WASHER
€ 2.00
14-2
0916006027
ref: 14-2
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16
0831111068
ref: 16
08310-00067
NUT
€ 2.50
17
0930810004
ref: 17
GROMMET
€ 2.00
18
3661927300
ref: 18
GUIDE,WIRING HARNESS
€ 2.50
