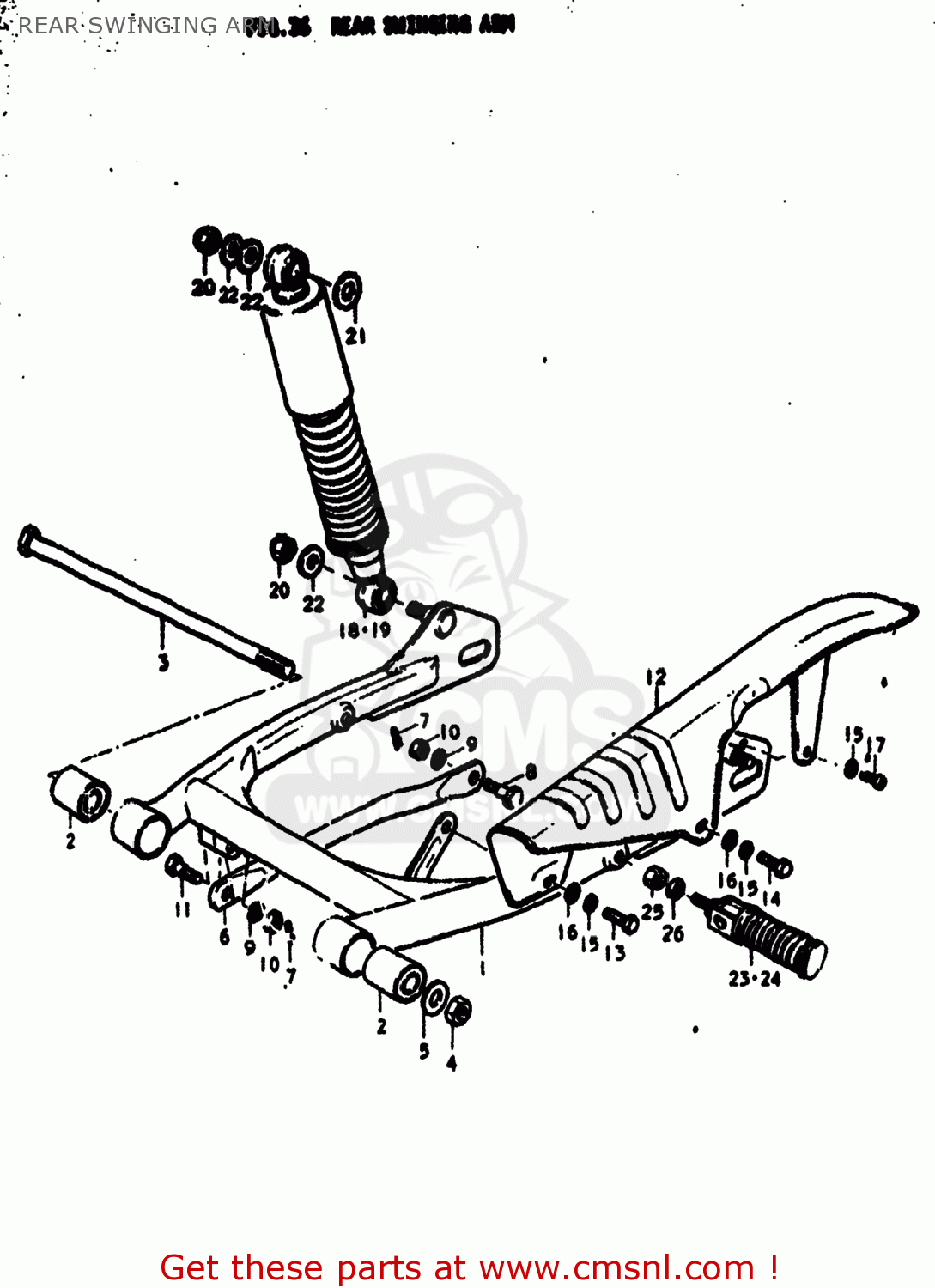

REAR SWINGING ARM

ref

part #

description

quantity

1-1

6110027815019
ref: 1-1

SWING ARM ASSEMBLY,REAR

€ 0.00

1-1

6110027815019
ref: 1-1

SWING ARM ASSEMBLY,REAR

€ 0.00

1-2

6110027860019
ref: 1-2

SWING ARM ASSEMBLY,REAR

€ 0.00

2

0931912001
ref: 2

BUSH

€ 7.00

3

6121127300
ref: 3

SHAFT,REAR SWING ARM

€ 15.00

4

0831211128
ref: 4
09140-12039

NUT

€ 3.00

5

0916012001
ref: 5

WASHER(12.5X32X2.3)

€ 2.50

6

6431027300
ref: 6

TORQUE LINK,REAR

€ 17.50

7

0938510001
ref: 7
09385-10005

CLIP

€ 1.50

8

0911108016
ref: 8

BOLT(8X29)

€ 3.00

9

0832121088
ref: 9
08321-01087

LOCK WASHER

€ 2.00

10

0914008008
ref: 10

NUT

€ 1.50

11

0911108013
ref: 11

BOLT(8X26.5)

€ 3.00

12

6131027300126
ref: 12
61310-27301-126

CASE,CHAIN

€ 63.00

13

0111206168
ref: 13
01500-06167

BOLT

€ 3.00

14

0910006011
ref: 14

BOLT(6X8)

€ 2.50

15

0832121068
ref: 15
08321-01067

LOCK WASHER

€ 2.50

16

0832221068
ref: 16
08322-01067

WASHER

€ 2.00

17

0211106087
ref: 17
02112-06087

SCREW

€ 2.00

18

6210027600
ref: 18

ABSORBER ASSEMBLY,REAR SHOCK

€ 34.00

19-1

6210027601
ref: 19-1

ABSORBER ASSEMBLY,REAR SHOCK

€ 56.00

19-2

6210027602
ref: 19-2

ABSORBER ASSEMBLY,REAR SHOCK

€ 143.00

20

0831311107
ref: 20
08313-10107

NUT

€ 2.50

21

0832211126
ref: 21
08322-0112B

WASHER

€ 2.00

22

0916010001
ref: 22
09160-10093

WASHER

€ 2.00

23

4360003001
ref: 23
43600-09D00

FOOTREST ASSEMBLY,REAR

€ 21.00

23

4360003001
ref: 23
43600-09D00

FOOTREST ASSEMBLY,REAR

€ 21.00

24

4360036200
ref: 24

FOOTREST ASSY,PILLION

€ 31.00

25

0831231128
ref: 25
09140-12039

NUT

€ 3.00

26

0832121128
ref: 26
08321-01127

WASHER,LOCK 12

€ 2.50

all assemblies
