ENGINE COVER (RV125M
RV125 1975 (M) USA (E03)

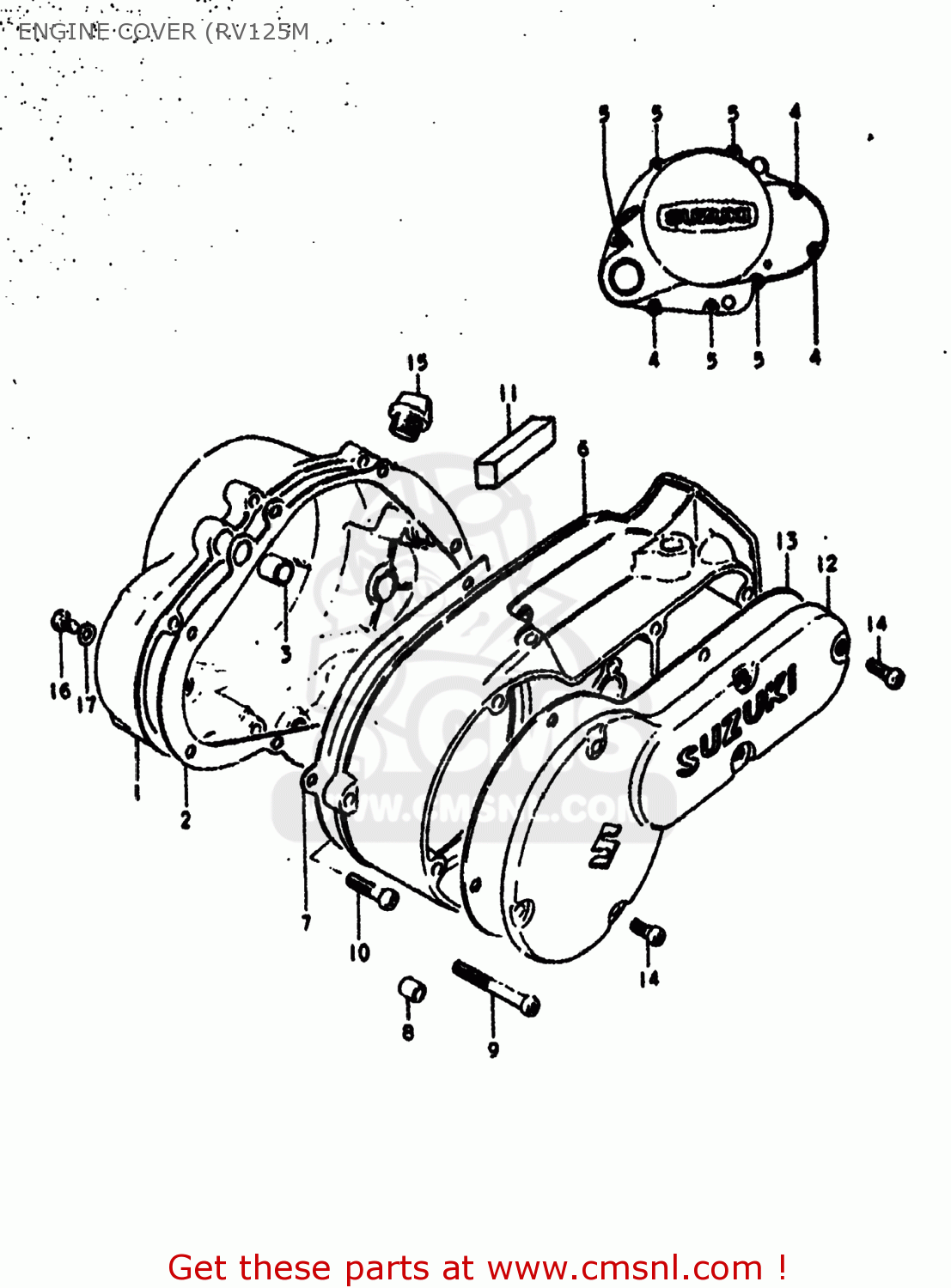

Engine cover (rv125m diagram RV125 1975 (M) USA (E03)
ENGINE COVER (RV125M RV125 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134128003
ref: 1
COVER,CLUTCH
€ 71.00
2
1148228000
ref: 2
11482-28001
GASKET,CLUTCH COVER (MCA)
€ 16.50
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206508
ref: 4
02112-06507
SCREW
€ 2.50
5
0211206258
ref: 5
02112-06257
SCREW
€ 2.00
6
1135128201
ref: 6
COVER,MAGNETO
€ 164.50
7
1148328000
ref: 7
GASKET,CLUTCH COVER (NAS)
€ 6.50
8
0421109129
ref: 8
PIN
€ 2.00
9
0211206408
ref: 9
02112-06407
SCREW
€ 2.00
10
0211206258
ref: 10
02112-06257
SCREW
€ 2.00
11
1191124000
ref: 11
SEAL,DUST
€ 0.00
12
1138128200
ref: 12
CAP,MAGNETO INSPECTION
€ 29.50
13
1149128200
ref: 13
GASKET,MAGNETO INSPECTION (MCA)
€ 1.50
14
0211205163
ref: 14
02112-0516A
SCREW
€ 2.00
15
0925919002
ref: 15
09259-19001
PLUG
€ 6.00
16
0912806004
ref: 16
09128-06044
SCREW(6X10)
€ 1.50
17
0916806001
ref: 17
GASKET(6.2X11X1) (NAS)
€ 1.50
