FRONT FORK (RV125L
RV125 1975 (M) USA (E03)

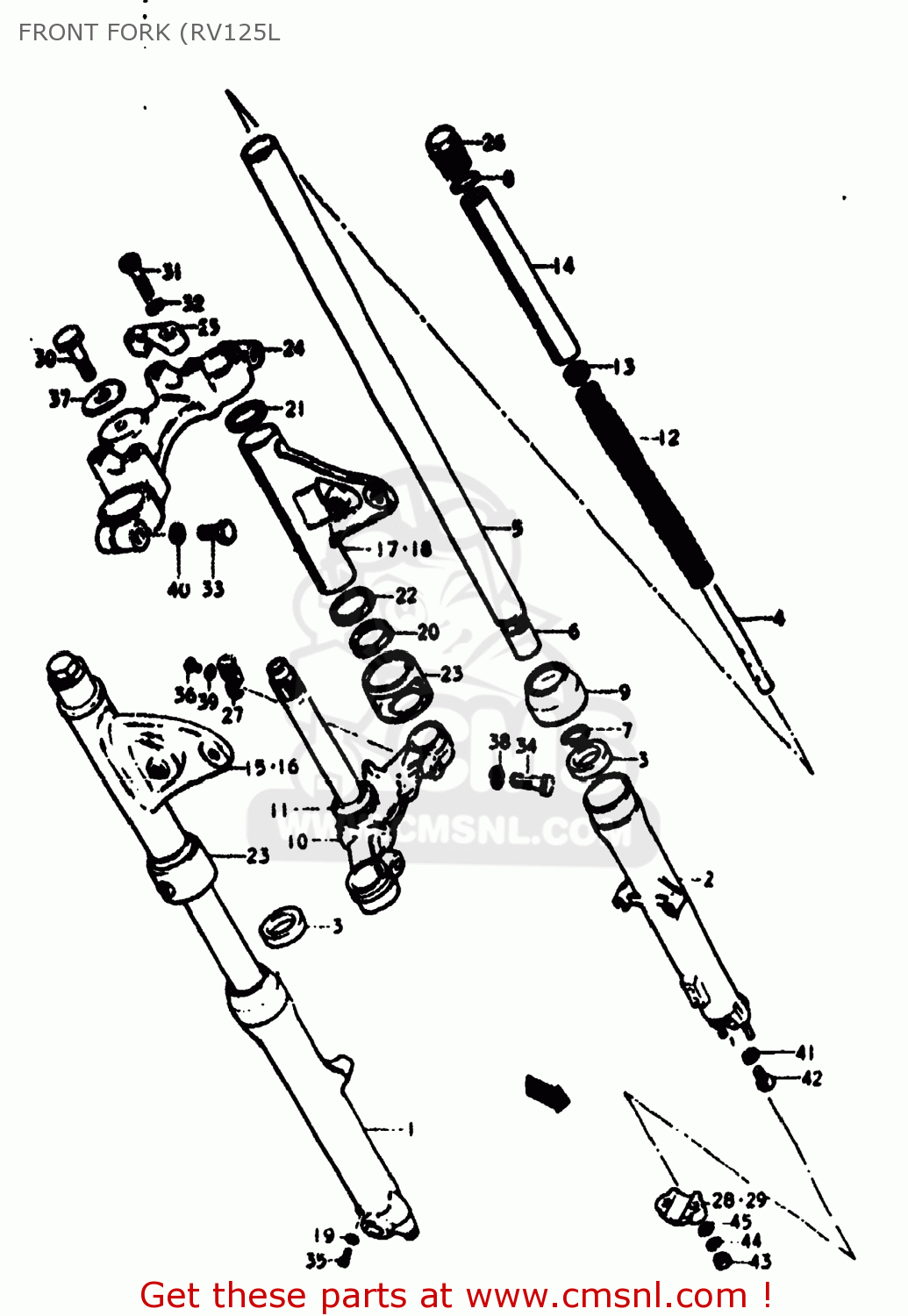

Front fork (rv125l diagram RV125 1975 (M) USA (E03)
FRONT FORK (RV125L RV125 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
5110027670
ref: 0-1
DAMPER SET
€ 182.00
0-2
5110027670126
ref: 0-2
DAMPER SET
€ 182.00
0-3
5110027670291
ref: 0-3
51106-27670
DAMPER SET
€ 182.00
1
5113036010
ref: 1
TUBE,OUTER,RIGHT
€ 87.00
1
5113036010
ref: 1
TUBE,OUTER,RIGHT
€ 87.00
2-1
5114036010
ref: 2-1
TUBE,OUTER,LEFT
€ 87.00
2-1
5114036010
ref: 2-1
TUBE,OUTER,LEFT
€ 87.00
2-2
5114036011
ref: 2-2
TUBE,OUTER,LEFT
€ 87.00
3
5115308011
ref: 3
SEAL,OIL
€ 10.50
4
5114625510
ref: 4
CYLINDER,FRONT FORK
€ 30.50
5
5111125510
ref: 5
TUBE,INNER
€ 160.50
6
5111228310
ref: 6
PISTON
€ 0.00
7
5111828310
ref: 7
SNAP RING
€ 2.50
8
5118125010
ref: 8
51181-29400
O-RING,FORK INNER TUBE
€ 2.50
9
5117325010
ref: 9
SEAL,DUST
€ 10.00
10
5141027310
ref: 10
51410-27750
STEM,STEERING
€ 128.00
11
5162133001
ref: 11
RACE,STEERING OUTER LWR
€ 10.00
12
5117127311
ref: 12
SPRING,FRONT FORK
€ 8.50
13
5117225210
ref: 13
GUIDE,SPRING
€ 0.00
14
5117627670
ref: 14
SPACER,SPRING
€ 5.50
15
5153027670
ref: 15
BRACKET,HEADLAMP HOUSING
€ 54.00
16
5153027701126
ref: 16
51500-27860-126
BRACKET,HEADLAMP HOUSING
€ 126.00
17
5154027670
ref: 17
BRACKET,HEADLAMP,LEFT
€ 54.00
18
5154027701126
ref: 18
51500-27860-126
BRACKET,HEADLAMP,LEFT
€ 126.00
19
5118303010
ref: 19
GASKET,DRAIN,PLUG (NAS)
€ 3.00
20-1
5155325210
ref: 20-1
CUSHION,HEAD LAMP BRACKET
€ 6.50
20-2
5155325010
ref: 20-2
51553-25210
CUSHION,HEADLAMP BRACKET
€ 6.50
21
5155120210
ref: 21
SEAT,HEADLAMP BRACKET
€ 4.00
22
5155125010
ref: 22
SEAT,HEADLAMP BRACKET
€ 0.00
23
5155427310
ref: 23
CUSHION,HEADLAMP BRACKET
€ 4.50
24-1
5131127310
ref: 24-1
HEAD,STEERING STEM
€ 69.50
24-2
5131127910
ref: 24-2
HEAD,STEERING STEM
€ 54.00
25
5621127100
ref: 25
HOLDER,HANDLEBAR
€ 12.50
26
5135125011
ref: 26
BOLT,FR FORK
€ 16.50
27
5145305110
ref: 27
CLIP,BRAKE CABLE
€ 4.50
28
5113216510
ref: 28
HOLDER,AXLE
€ 11.50
29
5113216511
ref: 29
HOLDER,AXLE
€ 11.50
30
5135120010
ref: 30
51351-29400
BOLT,FORK INNER TUBE
€ 25.00
31
0122108357
ref: 31
01204-08357
Bolt
€ 3.50
32
0832121088
ref: 32
08321-01087
LOCK WASHER
€ 2.00
33-1
5145128011
ref: 33-1
BOLT,FORK INNER TUBE F
€ 11.50
33-2
5145128012
ref: 33-2
BOLT,FR FORK LWR(12X33)
€ 11.50
34
0112110407
ref: 34
01500-10407
BOLT 10X40
€ 3.00
35
0211104087
ref: 35
02112-04087
SCREW
€ 1.50
36
0211206108
ref: 36
02112-06107
SCREW
€ 1.50
37
5135622011
ref: 37
WASHER
€ 6.00
38
0832121128
ref: 38
08321-01127
WASHER,LOCK 12
€ 2.50
39
0832121068
ref: 39
08321-01067
LOCK WASHER
€ 2.50
40
0832121108
ref: 40
08321-01107
LOCK WASHER
€ 2.00
41
5114834010
ref: 41
51148-36011
GASKET
€ 4.00
42
5114736010
ref: 42
BOLT
€ 2.50
43
0914008005
ref: 43
09140-08017
NUT (8MM)
€ 1.50
44
0832121088
ref: 44
08321-01087
LOCK WASHER
€ 2.00
45
0832221088
ref: 45
08322-01087
WASHER
€ 2.00
