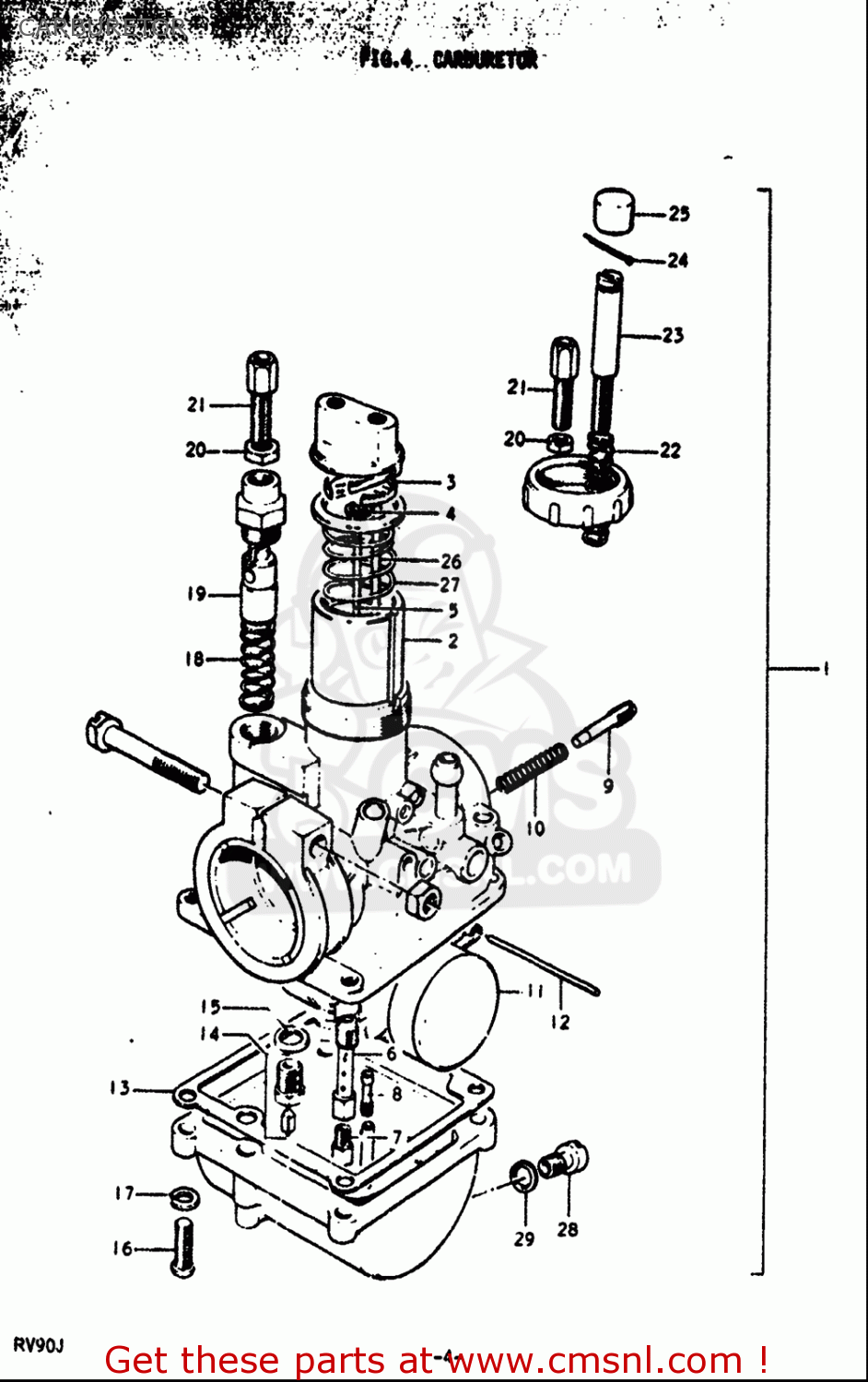

CARBURETOR

ref

part #

description

quantity

1-2

1320027114
ref: 1-2

CARBURETOR ASSY

€ 177.50

3

1358136212
ref: 3

STOPPER,NEEDLE CLIP

€ 4.50

4

1339440D00
ref: 4

CLIP,NEEDLE

€ 3.00

5-1

1338323010
ref: 5-1

NEEDLE,JET

€ 0.00

5-2

1338327110
ref: 5-2

NEEDLE JET

€ 17.50

7

0949150008
ref: 7

JET,MAIN(250)

€ 12.50

8

0949217006
ref: 8

JET,PILOT(17.5)

€ 7.50

9

1326901010
ref: 9

SCREW,PILOT AIR

€ 14.50

10

1326801010
ref: 10

SPRING

€ 3.50

11

1325223010
ref: 11

FLOAT

€ 19.00

12

1325401010
ref: 12

PIN,FLOAT

€ 3.00

13

1325103410
ref: 13

GASKET,FLOAT CAHMBER (NAS)

€ 4.50

14

1337003310
ref: 14

VALVE ASSY,NEEDLE

€ 52.50

15

1339201010
ref: 15

GASKET,NEEDLE VALVE (NAS)

€ 2.50

16

0211204163
ref: 16

SCREW 4X16

€ 1.00

17

0832101043
ref: 17

WASHER,LOCK

€ 2.00

18

1341701010
ref: 18

SPRING

€ 3.50

19

1341101010
ref: 19

PLUNGER,STARTER

€ 14.00

20

1366103010
ref: 20

NUT

€ 3.50

21

1357748110
ref: 21

ADJUSTER,CABLE

€ 8.00

22

1326803110
ref: 22

SPRING,THROTTLE SCREW

€ 3.50

23

1326705010
ref: 23

SCREW,THROTTLE STOP

€ 10.50

24

0411112108
ref: 24

PIN 12X10

€ 2.00

25

1368808010
ref: 25

CAP,THROTTLE VALVE STOP SCREW

€ 4.00

26

1329615010
ref: 26

ROD,THROTTLE VALVE ADJUST

€ 3.00

27

1357309110
ref: 27

SPRING,THROTTLE VALVE

€ 8.00

28

1324705010
ref: 28

PLUG

€ 6.00

29

1324905010
ref: 29

GASKET,DRAIN,PLUG (NAS)

€ 1.50

all assemblies
