STAND - FOOTREST
RV90 1972 (J) USA (E03)

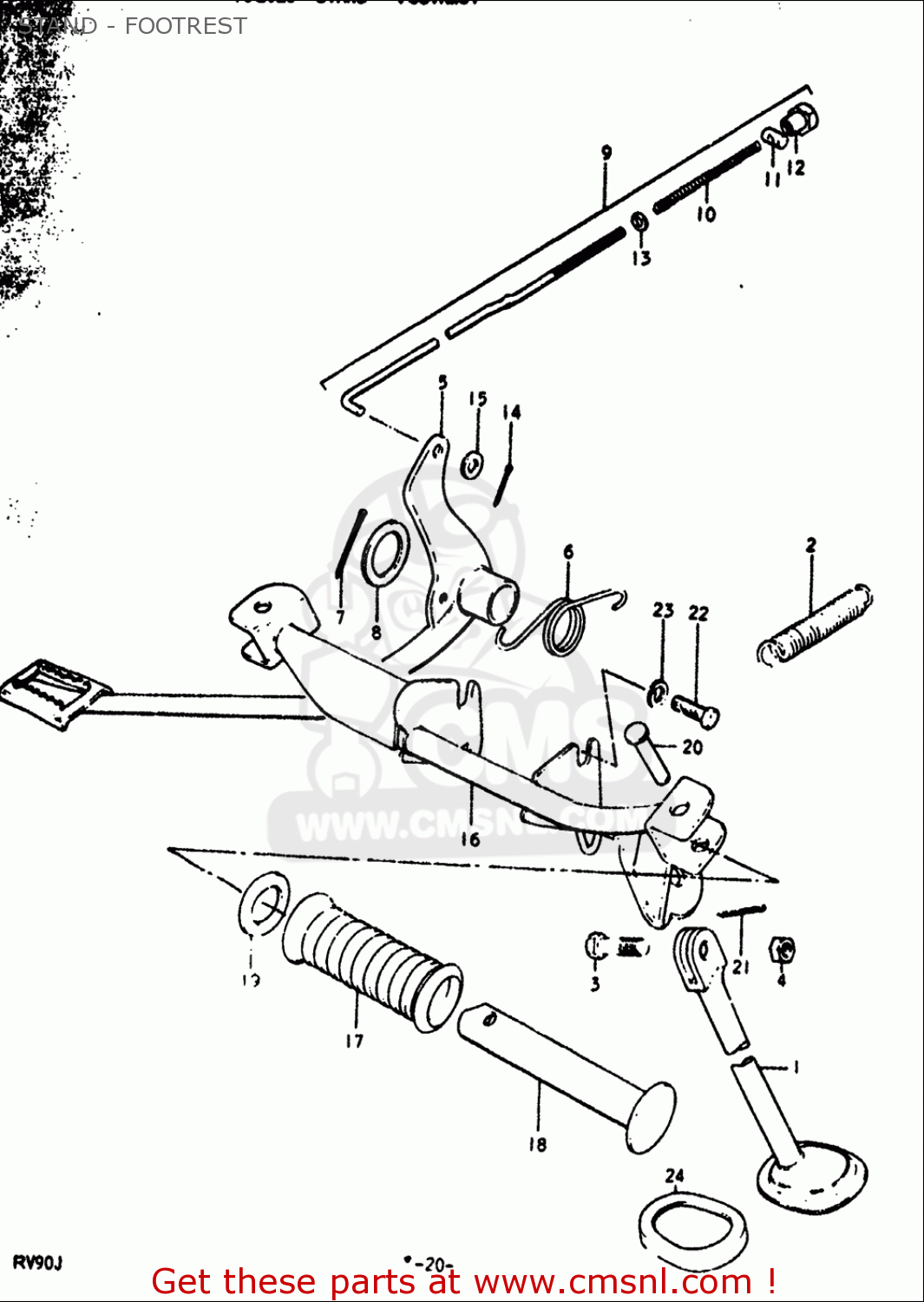

Stand - footrest diagram RV90 1972 (J) USA (E03)
STAND - FOOTREST RV90 1972 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
2
0944314017
ref: 2
SPRING
€ 6.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831000107
ref: 4
NUT
€ 2.50
5
4311027100
ref: 5
PEDAL,BRAKE
€ 17.50
6
0944831008
ref: 6
SPRING
€ 2.50
7
041113030A
ref: 7
PIN
€ 1.50
8
0916015002
ref: 8
WASHER(15.5X26X2.3)
€ 2.00
9
4330027100
ref: 9
ROD ASSEMBLY,REAR BRAKE
€ 14.00
10
0944009004
ref: 10
SPRING
€ 2.00
11
0920911002
ref: 11
PIN(11X18)
€ 2.00
12
0915006014
ref: 12
NUT
€ 3.50
13
0832201067
ref: 13
WASHER
€ 2.00
14
041112020A
ref: 14
PIN
€ 1.50
15
0832201057
ref: 15
WASHER
€ 2.50
17
4361203001
ref: 17
RUBBER,PILLION FOOTREST
€ 3.50
18
4361003001
ref: 18
BAR,FOOTREST RUBBER
€ 5.50
19
0916019024
ref: 19
WASHER(19.5X32X2)
€ 2.00
20
0920006010
ref: 20
PIN
€ 2.50
21
041112020A
ref: 21
PIN
€ 1.50
22
0150008163
ref: 22
BOLT
€ 2.00
23
0832101087
ref: 23
WASHER,LOCK
€ 2.00
