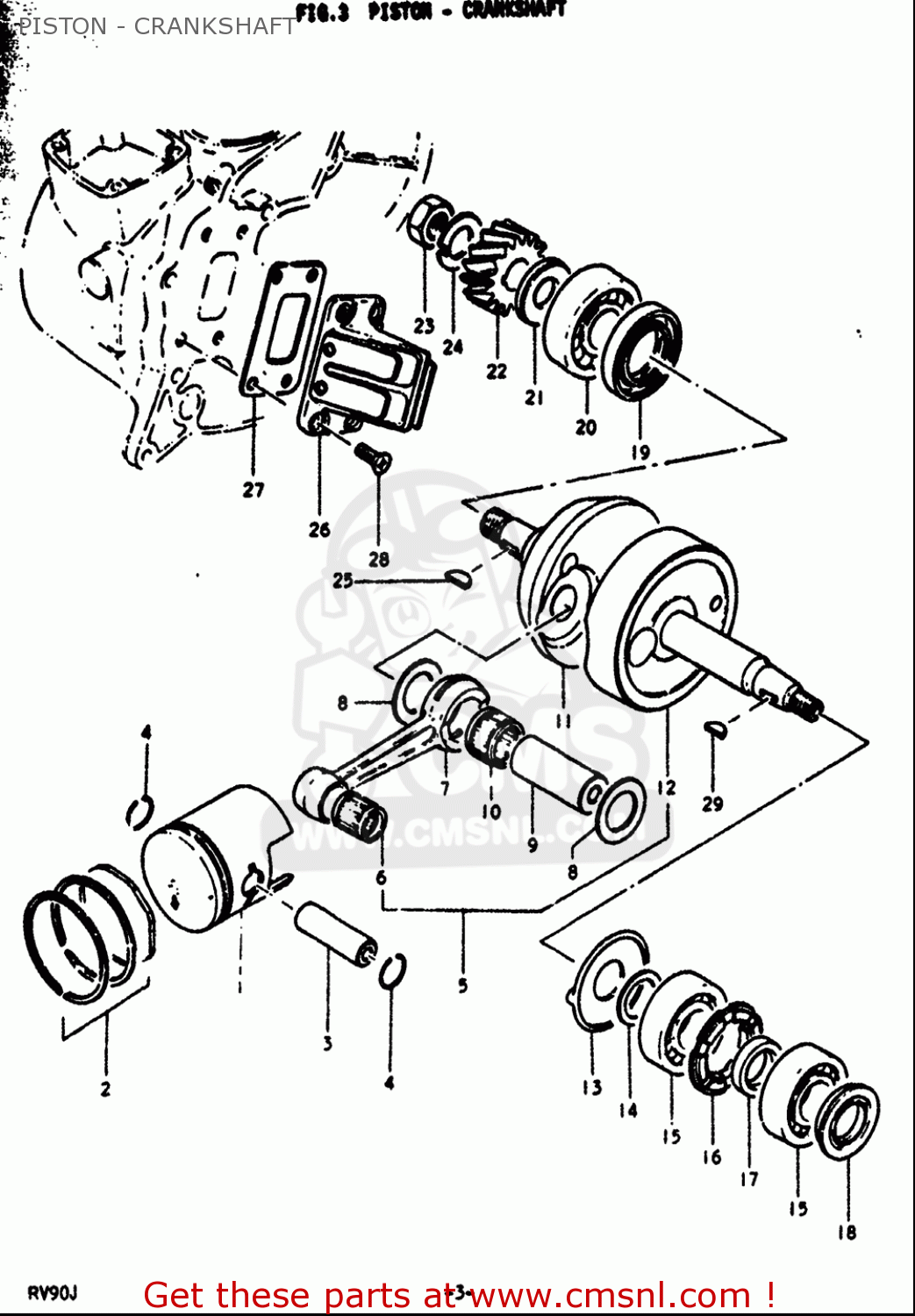

PISTON - CRANKSHAFT - RV90 1972 (J) USA (E03)

ref

part #

description

quantity

1-1

1211023003
ref: 1-1

PISTON

€ 52.00

1-2

1210023000050
ref: 1-2

PISTON SET(OS:0.5)

€ 77.50

1-3

1210023000100
ref: 1-3

PISTON SET(OS:1.0)

€ 72.50

2-1

1214023470
ref: 2-1

RING SET,PISTON

€ 50.00

2-2

1214023802050
ref: 2-2

RING SET,PISTON

€ 20.50

3

1215123400
ref: 3

PIN,PISTON 14MM

€ 10.00

4

0938114001
ref: 4

RING,SNAP 14MM

€ 1.50

5

1220023001
ref: 5

CRANKSHAFT ASSY

€ 385.00

6

0926314022
ref: 6

BEARING(14X18X19.8)

€ 10.00

7

1216123000
ref: 7

ROD,CONNECTING

€ 66.50

8

0916019001
ref: 8

WASHER(19X32X1)

€ 3.50

9

1221103300
ref: 9

PIN,CRANK

€ 26.50

10

0926319009
ref: 10

BEARING(19X25X16)

€ 15.00

12

1226123001
ref: 12

CRANKSHAFT,LH

€ 72.00

13-2

1251123001
ref: 13-2

PLATE,CSHAFT OIL GUIDE

€ 7.00

14

0918120158
ref: 14

SHIM(20X28X0.5)

€ 2.50

15

0926220069
ref: 15

BEARING(20X47X14)

€ 28.00

16

1235323000
ref: 16

SPACER,CRANKSHAFT NO.1

€ 0.00

17

0918020037
ref: 17

SPACER(20X28X7)

€ 7.50

18

0928320034
ref: 18

SEAL,OIL(19.6X37X8)

€ 6.00

19

0928326007
ref: 19

SEAL,OIL(26X52X8)

€ 7.50

20

0926220073
ref: 20

BEARING(20X52X15)

€ 19.00

23

0914014002
ref: 23

NUT

€ 4.00

25

0942004008
ref: 25

KEY

€ 3.50

27

1315623010
ref: 27

GASKET,REED VALVE (NAS)

€ 4.00

28

0212205167
ref: 28

SCREW

€ 2.00

29

0834131039
ref: 29

KEY

€ 2.00

PISTON - CRANKSHAFT

all assemblies
