FLYWHEEL MAGNETO (RV90K
RV90 1974 (L) USA (E03)

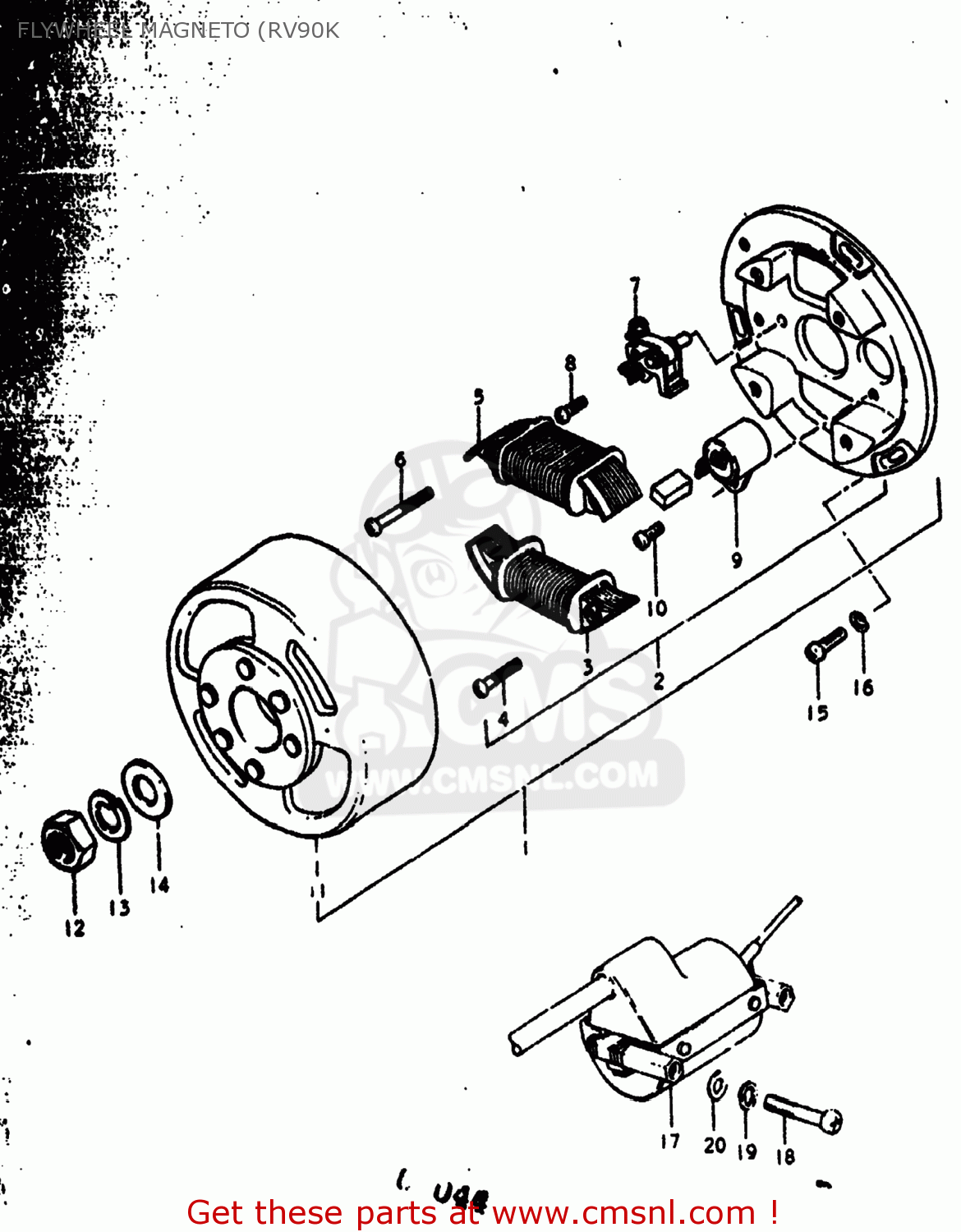

Flywheel magneto (rv90k diagram RV90 1974 (L) USA (E03)
FLYWHEEL MAGNETO (RV90K RV90 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3210027691
ref: 1-1
MAGNETO ASSEMBLY
€ 142.50
1-2
3210027692
ref: 1-2
32100-27620
MAGNETO ASSEMBLY
€ 142.50
2
3210127691
ref: 2
STATOR ASSEMBLY
€ 0.00
3
3212027691
ref: 3
COIL,LIGHTING
€ 55.00
4
0211104208
ref: 4
02112-0420A
SCREW
€ 1.00
5
3214027110
ref: 5
COIL
€ 15.50
6
0211104358
ref: 6
02112-0435B
SCREW
€ 2.00
7
3224028010
ref: 7
32240-43012
POINT ASSEMBLY,CONTACT
€ 18.50
8
0231104108
ref: 8
02112-0410A
.SCREW
€ 1.00
9
3234103110
ref: 9
CONDENSER
€ 21.50
10
0211104107
ref: 10
02112-04107
SCREW
€ 2.00
11-1
3210227691
ref: 11-1
ROTOR ASSEMBLY
€ 64.00
11-2
3210227692
ref: 11-2
ROTOR ASSEMBLY
€ 64.00
12
0914010003
ref: 12
09140-10041
NUT (10MM)
€ 3.50
13
0832121108
ref: 13
08321-01107
LOCK WASHER
€ 2.00
14
0832221108
ref: 14
08322-01107
WASHER
€ 2.50
15
0211206168
ref: 15
02112-06167
SCREW
€ 2.50
16
0832221068
ref: 16
08322-01067
WASHER
€ 2.00
17
3341027110
ref: 17
33410-27111
COIL ASSEMBLY,IGNITION
€ 104.00
18
0211105127
ref: 18
02112-05127
Screw
€ 2.50
19
0832121058
ref: 19
08321-0105A
LOCK WASHER
€ 2.00
20
0832221058
ref: 20
08322-01057
WASHER
€ 2.50
