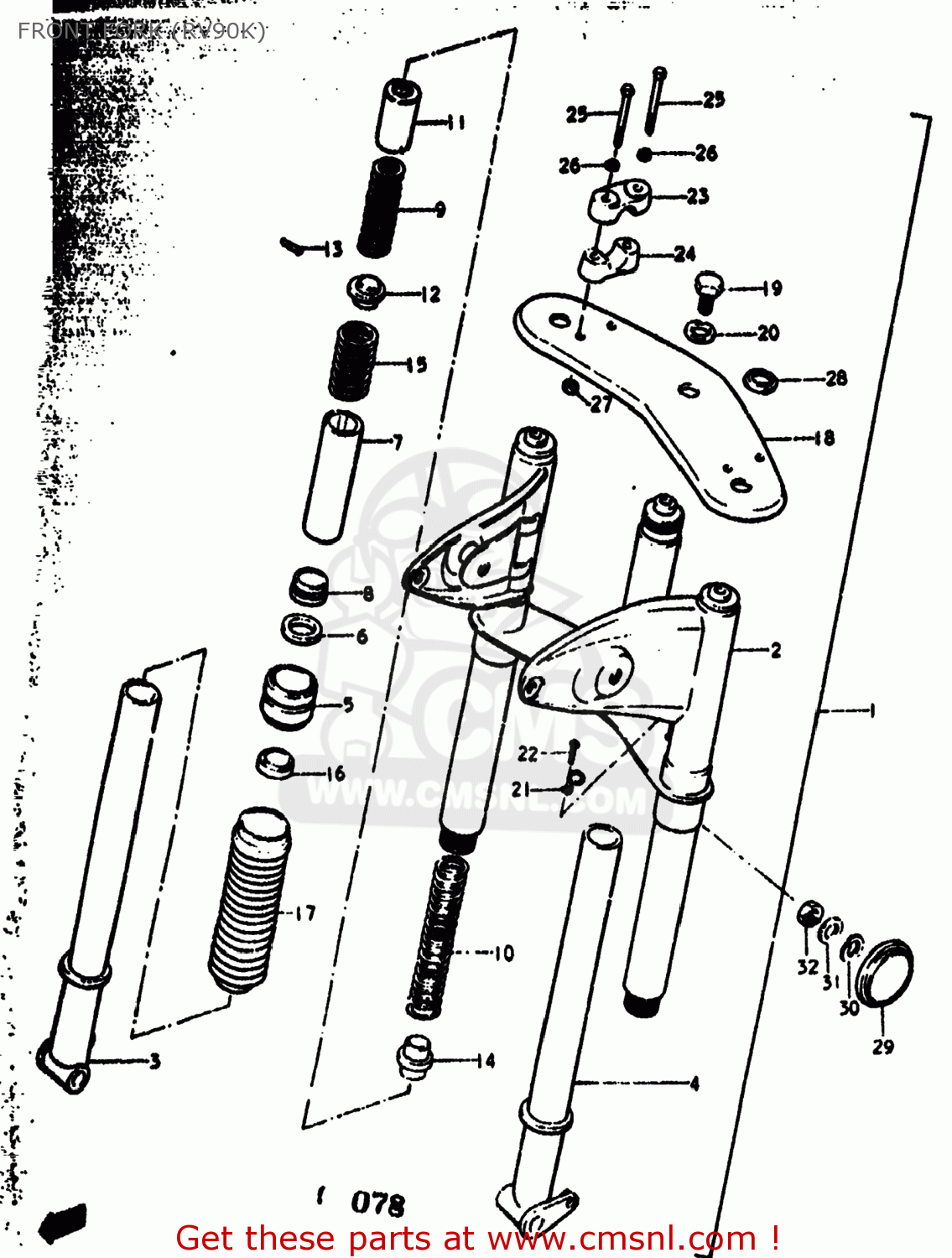

FRONT FORK (RV90K)

ref

part #

description

quantity

1

5110027632293
ref: 1

DAMPER SET

€ 132.00

2-1

5141027103293
ref: 2-1

STEM,STEERING

€ 2.00

2-2

5141027105293
ref: 2-2

STEM,STEERING

€ 2.00

3

5113027621
ref: 3

TUBE,OUTER,RIGHT

€ 8.50

4

5114027621
ref: 4

TUBE,OUTER,LEFT

€ 0.00

5

5115127103
ref: 5

SPRING,FRONT FORK

€ 9.00

6

0928322010
ref: 6

OIL SEAL (22.2X30X5)

€ 4.00

7

5115227100
ref: 7

BUSHING,GUIDE

€ 6.50

8

5115727100
ref: 8

VALVE,OIL LOCK

€ 5.50

9

5117127700
ref: 9

SPRING,FRONT FORK

€ 0.00

10

5118427100
ref: 10

SPRING,FRONT FORK

€ 6.00

11

5119727101
ref: 11

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12

5117227000
ref: 12

GUIDE,SPRING

€ 0.00

13

0920504001
ref: 13

PIN,SPRING(4.5X22)

€ 1.50

14

5117527100
ref: 14

GUIDE,SPRING WASHER

€ 0.00

15

5117727100
ref: 15

SPRING,REBOUND

€ 3.50

16

5119327000
ref: 16

CUSHION

€ 5.50

17

5157127100
ref: 17

BOOT,FRONT FORK COVER

€ 15.00

18

5131027102
ref: 18

HEAD,STEERING STEM

€ 48.00

19

0910410005
ref: 19

BOLT

€ 8.00

20

0916010030
ref: 20

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

21

5145531000
ref: 21
51455-31010

GUIDE,CABLE

€ 5.00

22

0212206108
ref: 22
02122-0610A

SCREW

€ 1.50

23

5621127100
ref: 23

HOLDER,HANDLEBAR

€ 12.50

24

5622127100
ref: 24

HOLDER,HANDLEBAR

€ 14.50

25

0910408012
ref: 25

BOLT

€ 1.50

26

0832121088
ref: 26
08321-01087

LOCK WASHER

€ 2.00

27

0831111088
ref: 27
08310-00087

NUT

€ 2.00

28

5135411010
ref: 28

WASHER

€ 5.50

29

3595015000
ref: 29

REFLECTOR ASSY, FRONT TO 35950-31010

€ 0.00

30

0832121058
ref: 30
08321-0105A

LOCK WASHER

€ 2.00

31

0916906011
ref: 31

WASHER

€ 6.50

32

0831111058
ref: 32
08310-00057

NUT

€ 2.50

all assemblies
