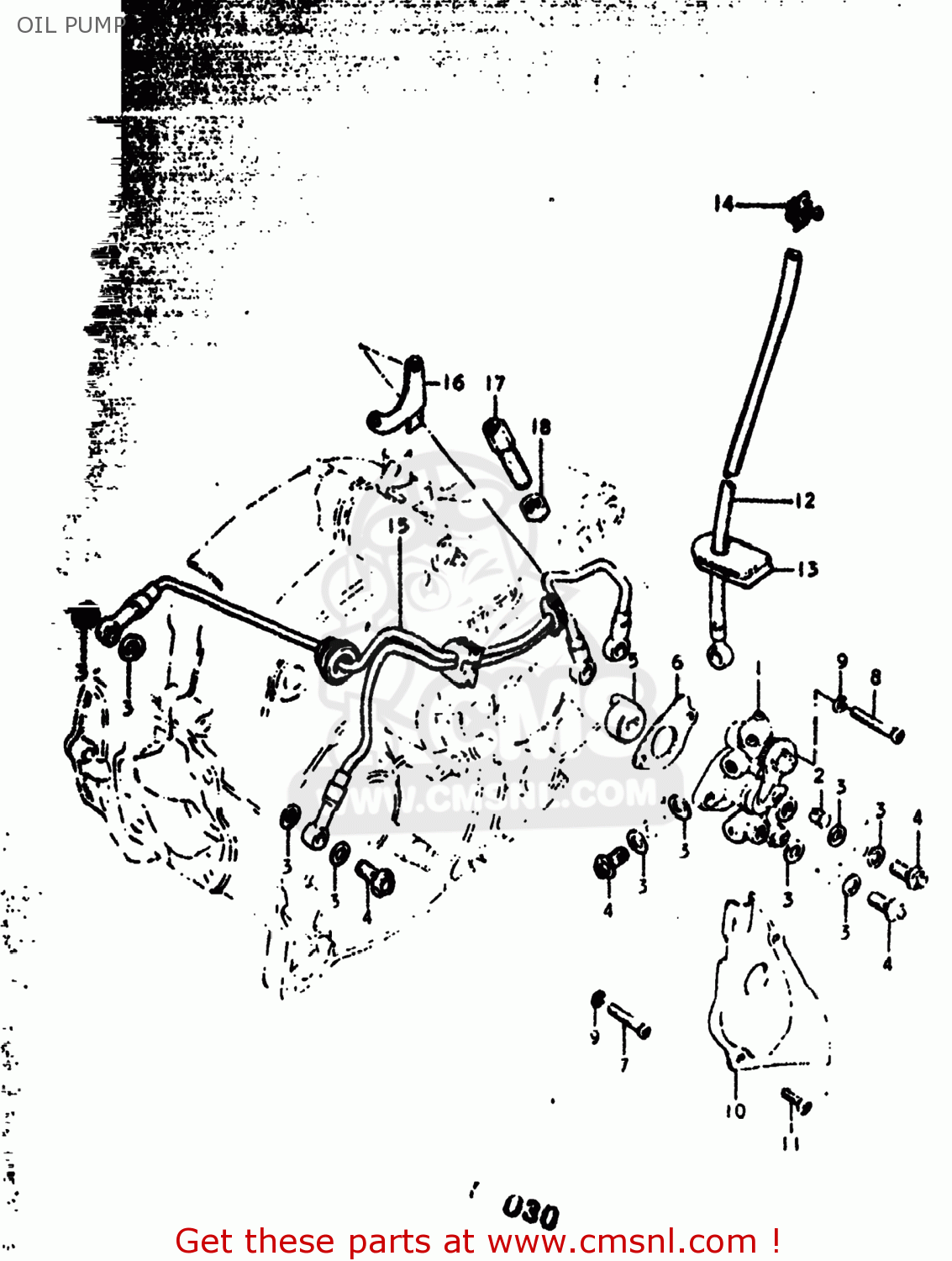

OIL PUMP

ref

part #

description

quantity

1

1610023011
ref: 1
16100-23020

PUMP ASSEMBLY,OIL

€ 220.00

2

1629203110
ref: 2
16292-03112

TERMINAL,CABLE

€ 3.50

3

0916806002
ref: 3
09168-06004

GASKET (NAS)

€ 1.50

4

0936006003
ref: 4

UNION BOLT

€ 5.00

5

1639123031
ref: 5

PIECE,OIL PUMP DRIVE

€ 4.50

6

1673103100
ref: 6
16731-03101

GASKET,OIL PUMP (MCA)

€ 2.50

7

0211205168
ref: 7
02112-05167

SCREW

€ 2.50

8

0211205308
ref: 8
02112-0530A

SCREW

€ 1.50

9

0832121058
ref: 9
08321-0105A

LOCK WASHER

€ 2.00

10

1138027100
ref: 10

CAP,OIL PUMP INSPECTION

€ 16.00

11

0211206106
ref: 11
02112-0610B

SCREW

€ 1.50

11

0211206108
ref: 11
02112-06107

SCREW

€ 1.50

12

1681027130
ref: 12
16810-07520

HOSE,OIL NO.1

€ 17.50

13

0930908002
ref: 13

GROMMET

€ 3.00

14

0940010301
ref: 14
09400-10302

CLAMP

€ 9.50

15

1682025030
ref: 15

HOSE,OIL NO.2

€ 32.50

16

1681619000
ref: 16

CLAMP

€ 0.00

17

0911908014
ref: 17

BOLT

€ 3.50

18

0831211088
ref: 18
08310-00087

NUT

€ 2.00

all assemblies
