FRONT FORK
SB200 1979 (N) (E02)

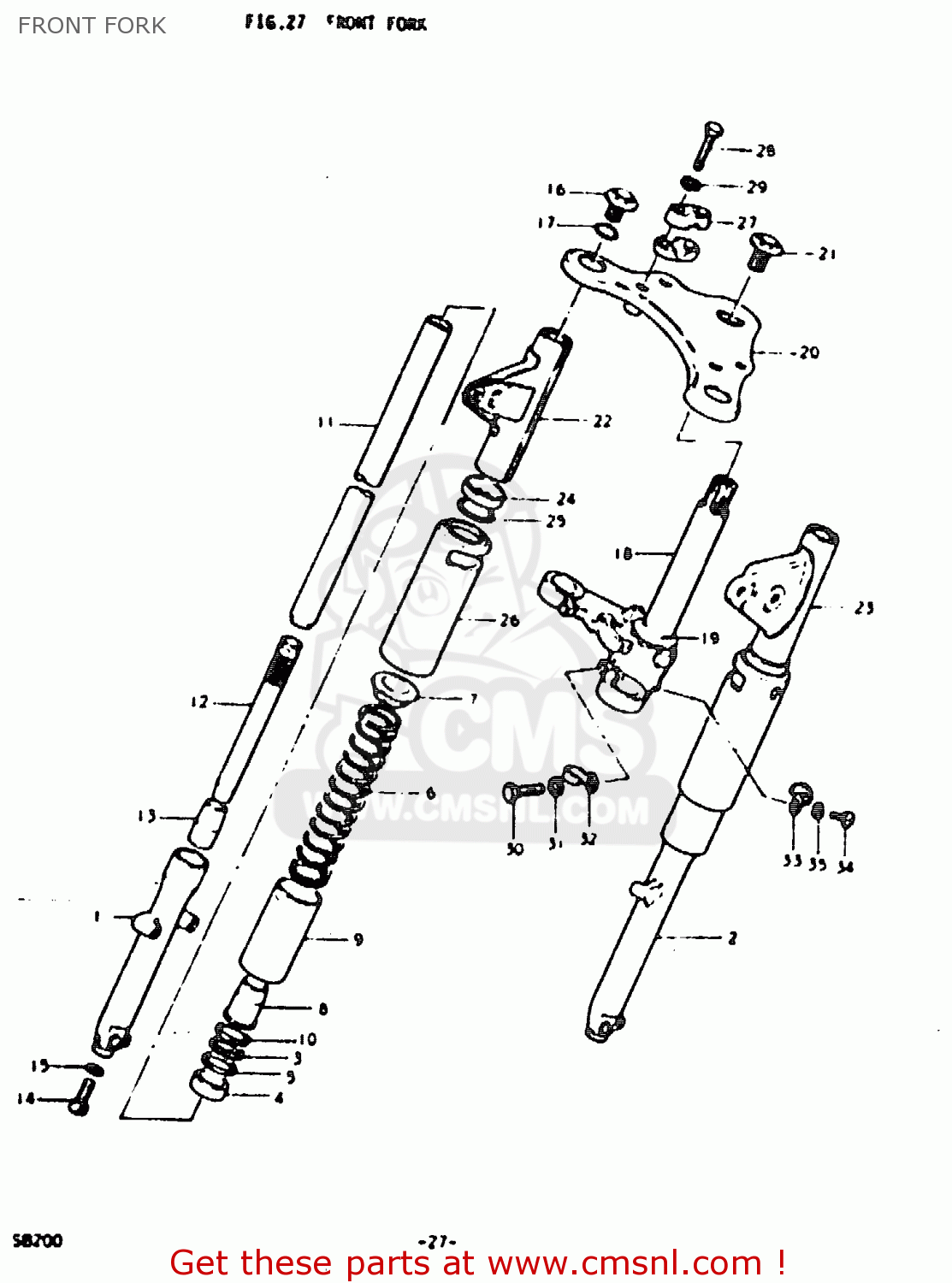

Front fork diagram SB200 1979 (N) (E02)
FRONT FORK SB200 1979 (N) (E02)
×
prices are in EUR
ref
part #
description
quantity
0
5110010210019
ref: 0
FRONT FORK ASSY
€ 24.00
0
511001021005H
ref: 0
FRONT FORK ASSY
€ 24.00
0
5111021007P
ref: 0
FRONT FORK ASSY
€ 0.00
1
5113010200
ref: 1
OUTER TUBE, RH
€ 0.00
2
5114010200
ref: 2
OUTER TUBE, LH
€ 137.00
3
5115636010
ref: 3
RING,SNAP
€ 5.50
4
5115329400
ref: 4
OIL SEAL,FRONT FORK
€ 11.00
5
5115836010
ref: 5
WASHER,FRONT FORK
€ 4.00
6
5117110210
ref: 6
SPRING
€ 0.00
7
5117210200
ref: 7
GUIDE, SPRING UPPER
€ 0.00
8
5117310210
ref: 8
DUST SEAL
€ 10.00
9
5150210201
ref: 9
COVER, OUTER TUBE
€ 0.00
10
5115836010
ref: 10
WASHER,FRONT FORK
€ 4.00
11
5111048120
ref: 11
INNER TUBE
€ 193.00
12
5114610200
ref: 12
CYLINDER
€ 0.00
13
5119536220
ref: 13
PIECE,OIL LOCK
€ 11.50
14
5114716510
ref: 14
BOLT,FORK CYLINDER(10X25)
€ 3.50
15
5114841310
ref: 15
GASKET (NAS)
€ 2.50
16
5135110200
ref: 16
CAP, INNER TUBE
€ 12.00
17
5111736220
ref: 17
O RING
€ 2.00
18
5141036220
ref: 18
STEM
€ 135.50
19
5162133001
ref: 19
RACE,STEERING OUTER LWR
€ 10.00
20
5131036220291
ref: 20
STEM HEAD
€ 47.00
21
5135239140
ref: 21
BOLT
€ 4.00
22-1
5153010200019
ref: 22-1
BRACKET, HEADLAMP RH
€ 0.00
22-2
515301020005H
ref: 22-2
BRACKET, HEADLAMP RH
€ 0.00
22-3
515301020007P
ref: 22-3
BRACKET, HEADLAMP RH
€ 0.00
23-1
5154010200019
ref: 23-1
BRACKET, HEADLAMP LH
€ 0.00
23-2
515401020005H
ref: 23-2
BRACKET, HEADLAMP LH
€ 32.00
23-3
515401020007P
ref: 23-3
BRACKET, HEADLAMP LH
€ 32.00
24
5155110200
ref: 24
GUIDE,BRACKET
€ 5.50
25
5155325210
ref: 25
CUSHION,HEAD LAMP BRACKET
€ 6.50
26-1
5151110201019
ref: 26-1
COVER, OUTER
€ 24.00
26-2
515111020105H
ref: 26-2
COVER, OUTER
€ 24.00
26-3
515111020107P
ref: 26-3
COVER, OUTER
€ 24.00
27
5621129320291
ref: 27
HOLDER,HANDLE(BLACK)
€ 12.00
28
0120408557
ref: 28
BOLT
€ 2.50
29
0832121088
ref: 29
LOCK WASHER
€ 2.00
30
5145128012
ref: 30
BOLT,FR FORK LWR(12X33)
€ 11.50
31
0832121128
ref: 31
WASHER,LOCK 12
€ 2.50
32
5145536010
ref: 32
CLIP
€ 6.50
33
5145305110
ref: 33
CLIP,BRAKE CABLE
€ 4.50
34
0211206108
ref: 34
SCREW
€ 1.50
35
0832121068
ref: 35
LOCK WASHER
€ 2.50
