STARTING MOTOR

SB200 1979 (N) (E02)

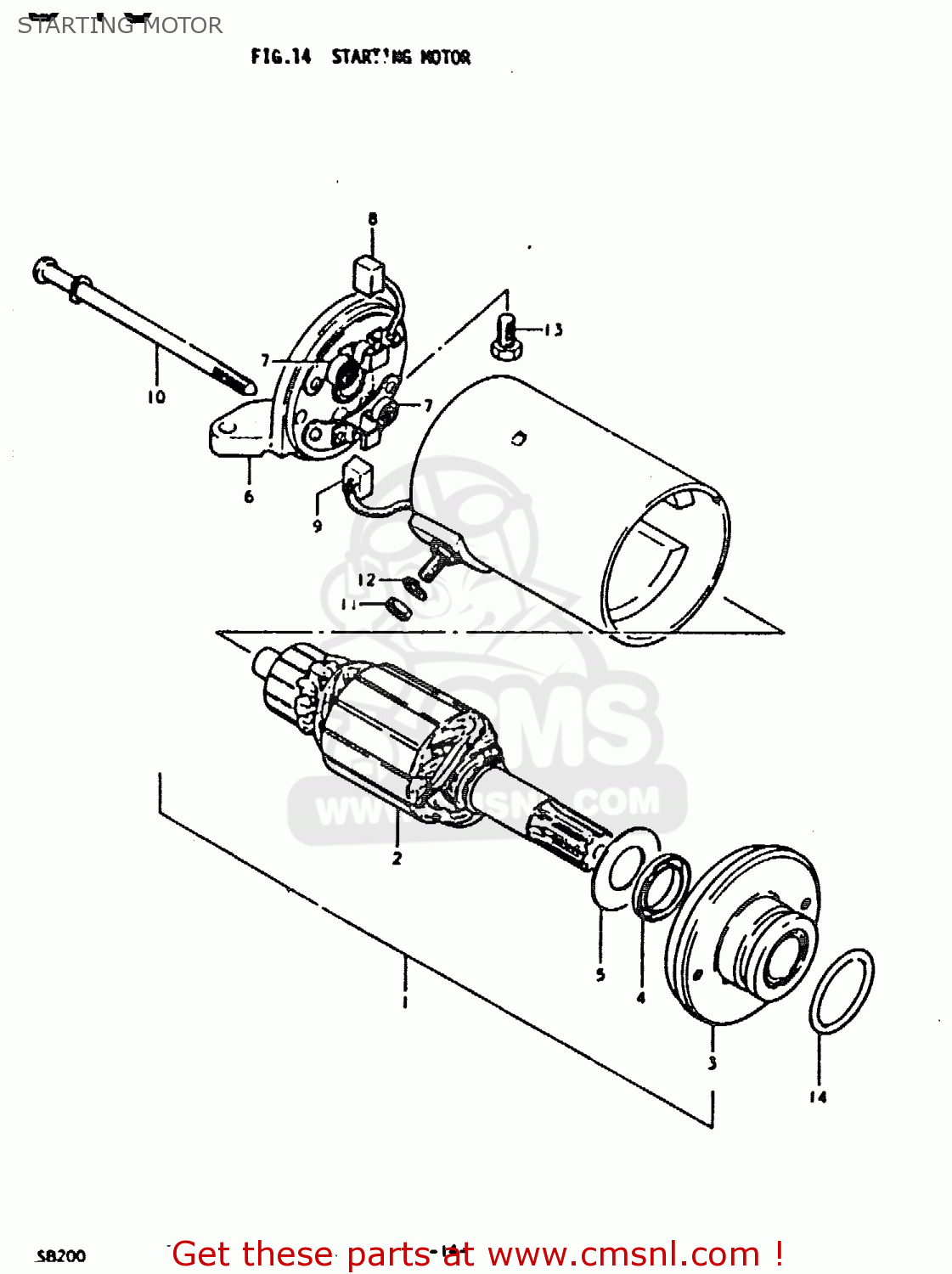

Starting motor diagram SB200 1979 (N) (E02)

prices are in EUR

ref

part #

description

quantity

3110010200
ref: 1

MOTOR ASSY, STARTING

€ 590.00

3131110200
ref: 2

ARMATURE

€ 167.00

3115110200
ref: 3

HOUSING, DRIVE

€ 0.00

3115345010
ref: 4

SEAL,OIL

€ 19.50

3136110200
ref: 5

RING,SNAP

€ 2.50

3117010200
ref: 6

HOUSING, COMMUTATOR END

€ 0.00

3113565010
ref: 7

SPRING

€ 3.00

3113110200
ref: 8

BRUSH(-)

€ 8.50

3113010200
ref: 9

BRUSH TERMINAL SET

€ 13.00

3128110200
ref: 10

BOLT,STARTING MOTOR HOUSING

€ 4.00

0831032068
ref: 11

NUT

€ 2.50

0832121068
ref: 12

LOCK WASHER

€ 2.50

0912806011
ref: 13

SCREW(6X12)

€ 3.00

0928024001
ref: 14

O RING(D:2,ID:24.5)

€ 2.00
