CAM SHAFT - VALVE
SP125 1983 (D) USA (E03)

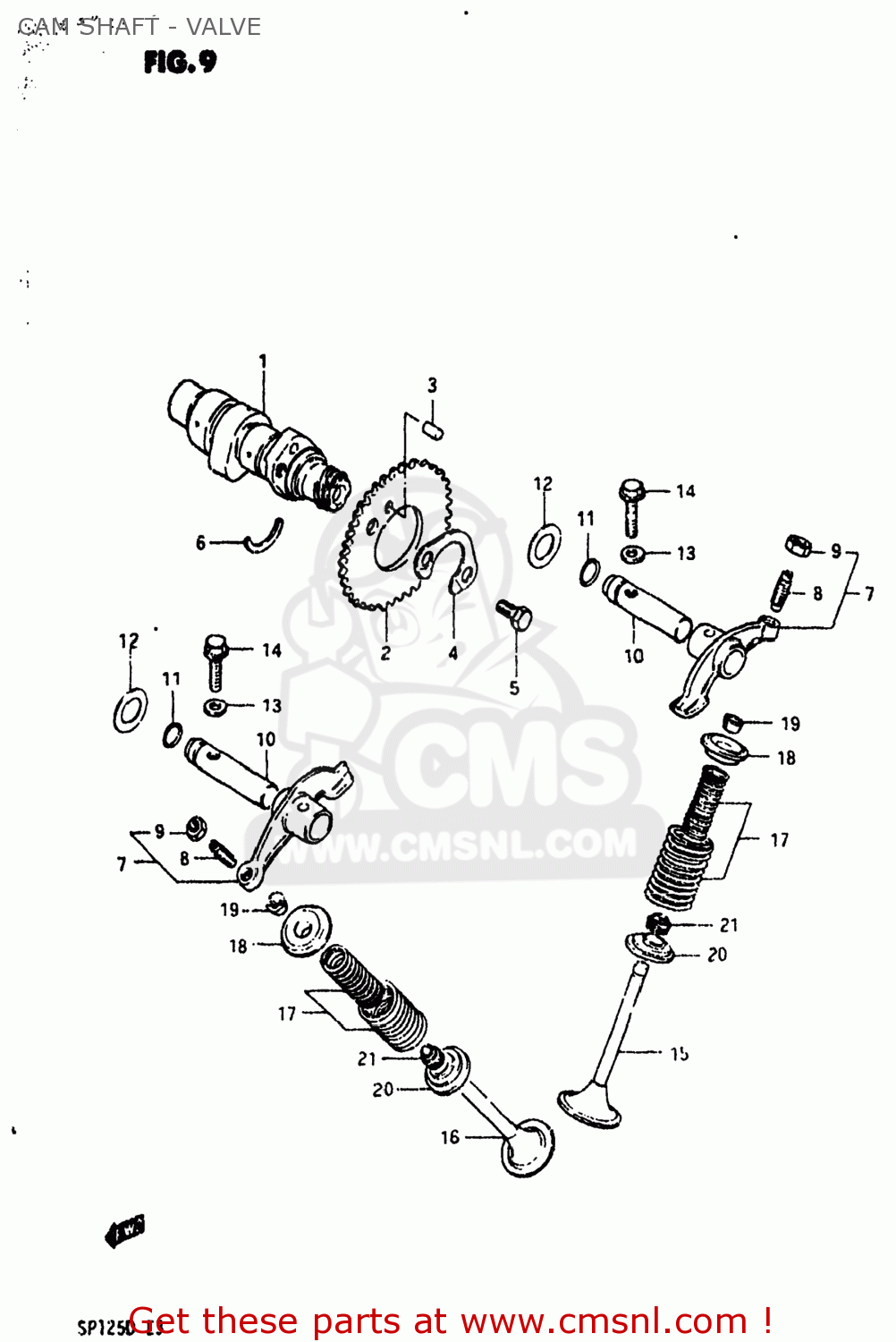

Cam shaft - valve diagram SP125 1983 (D) USA (E03)
CAM SHAFT - VALVE SP125 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1271105200
ref: 1-1
12711-05230
CAMSHAFT
€ 172.50
1-2
1271105201
ref: 1-2
12711-05230
CAMSHAFT
€ 172.50
1-3
1271105990
ref: 1-3
CAMSHAFT
€ 108.50
2-1
1274105200
ref: 2-1
12741-05201
SPROCKET,CAMSHAFT
€ 14.00
2-2
1274105201
ref: 2-2
SPROCKET,CAMSHAFT
€ 14.00
3
0926105005
ref: 3
PIN(5X8)
€ 1.50
4
1274705200
ref: 4
12747-05202
WASHER,SPROCKET
€ 2.00
5
0911106032
ref: 5
BOLT(6X10.5)
€ 2.00
6
0939022002
ref: 6
C RING
€ 2.00
7
1284005200
ref: 7
12850-25C00
ARM,VALVE ROCKER
€ 28.00
8
1284232410
ref: 8
12842-32411
SCREW,TAPPET ADJUSTING
€ 5.00
9
1284332400
ref: 9
NUT,ADJUSTING SCREW
€ 2.50
10-1
1286105200
ref: 10-1
12861-05201
SHAFT,VALVE ROCKER
€ 9.50
10-2
1286105201
ref: 10-2
SHAFT,VALVE ROCKET
€ 9.50
11
0928009004
ref: 11
09280-09005
O-RING
€ 4.00
12
0916412021
ref: 12
WASHER
€ 2.00
13
0916806004
ref: 13
GASKET(6.2X11X1).2 (NAS)
€ 1.50
14-1
0151706258
ref: 14-1
01550-06257
BOLT
€ 2.50
14-2
0151706255
ref: 14-2
01550-0625A
BOLT
€ 2.50
15-1
1291105210
ref: 15-1
12911-05211
VALVE,INTAKE
€ 32.00
15-2
1291105211
ref: 15-2
VALVE,INTAKE
€ 32.00
16-1
1291205210
ref: 16-1
12912-05211
VALVE,EXHAUST
€ 48.00
16-2
1291205211
ref: 16-2
VALVE,EXHAUST
€ 48.00
17
1292005210
ref: 17
SPRING SET,VALVE
€ 10.50
18
1293149200
ref: 18
12931-49201
RETAINER,VALVE SPRING
€ 5.50
19
1293249200
ref: 19
COTTER VALVE
€ 2.50
20
1293349200
ref: 20
12933-49201
SEAT,VALVE SPRING
€ 4.50
21
0928905003
ref: 21
09289-05015
OIL SEAL
€ 6.50
