CRANKCASE COVER (MODEL D)
SP125 1983 (D) USA (E03)

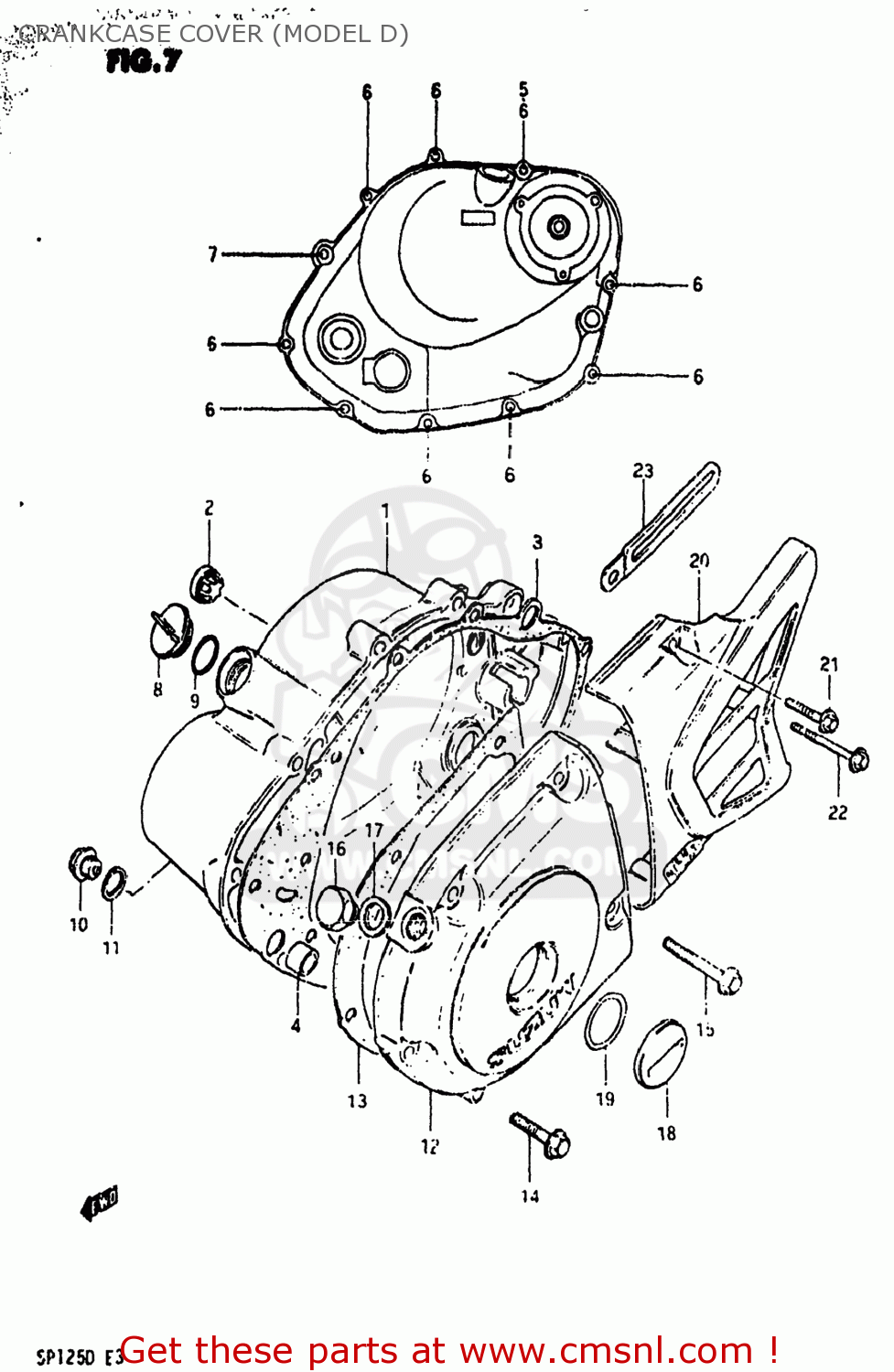

Crankcase cover (model d) diagram SP125 1983 (D) USA (E03)
CRANKCASE COVER (MODEL D) SP125 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134005211
ref: 1
11340-05260
COVER,CLUTCH
€ 135.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
€ 13.00
3
1148205200
ref: 3
11482-05211
GASKET,CLUTCH COVER (MCA)
€ 13.00
4
0920613001
ref: 4
04211-13189
PIN
€ 2.50
5
0916806009
ref: 5
09168-06023
GASKET (NAS)
€ 2.00
6
0154706305
ref: 6
01547-06307
BOLT (6*30)
€ 2.50
7
0154706455
ref: 7
01547-0645B
BOLT (6X45)
€ 3.00
8
0925920008
ref: 8
09259-20008-XC0
PLUG
€ 6.50
9
0928017003
ref: 9
O RING(D:3.1,ID:16.8)
€ 2.00
10
0924714012
ref: 10
09247-14026
PLUG (14X12)
€ 3.50
11
0916814004
ref: 11
GASKET(14X19.2X2) (NAS)
€ 2.50
12
1135105210
ref: 12
11351-05260
COVER,MAGNETO
€ 93.50
13
1148305200
ref: 13
11483-05210
GASKET,MAGNETO COVER (MCA)
€ 7.50
14
0154706305
ref: 14
01547-06307
BOLT (6*30)
€ 2.50
15
0154706405
ref: 15
01547-0640B
BOLT (6X40)
€ 3.00
16
0924712103
ref: 16
PLUG(12X9)
€ 3.50
17
0916812002
ref: 17
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
18
0925926002
ref: 18
09259-26002-XC0
PLUG
€ 17.00
19
0928022008
ref: 19
O RING(D:3.1,ID:22.7)
€ 2.50
20
1136105210
ref: 20
11361-05260
COVER,SPROCKET
€ 26.50
21
0154705255
ref: 21
01547-0525B
BOLT
€ 2.00
22
0154705455
ref: 22
01547-05453
BOLT
€ 2.00
23
0940406415
ref: 23
09404-06433
CLAMP
€ 3.00
