REAR COMBINATION LAMP
SP125 1983 (D) USA (E03)

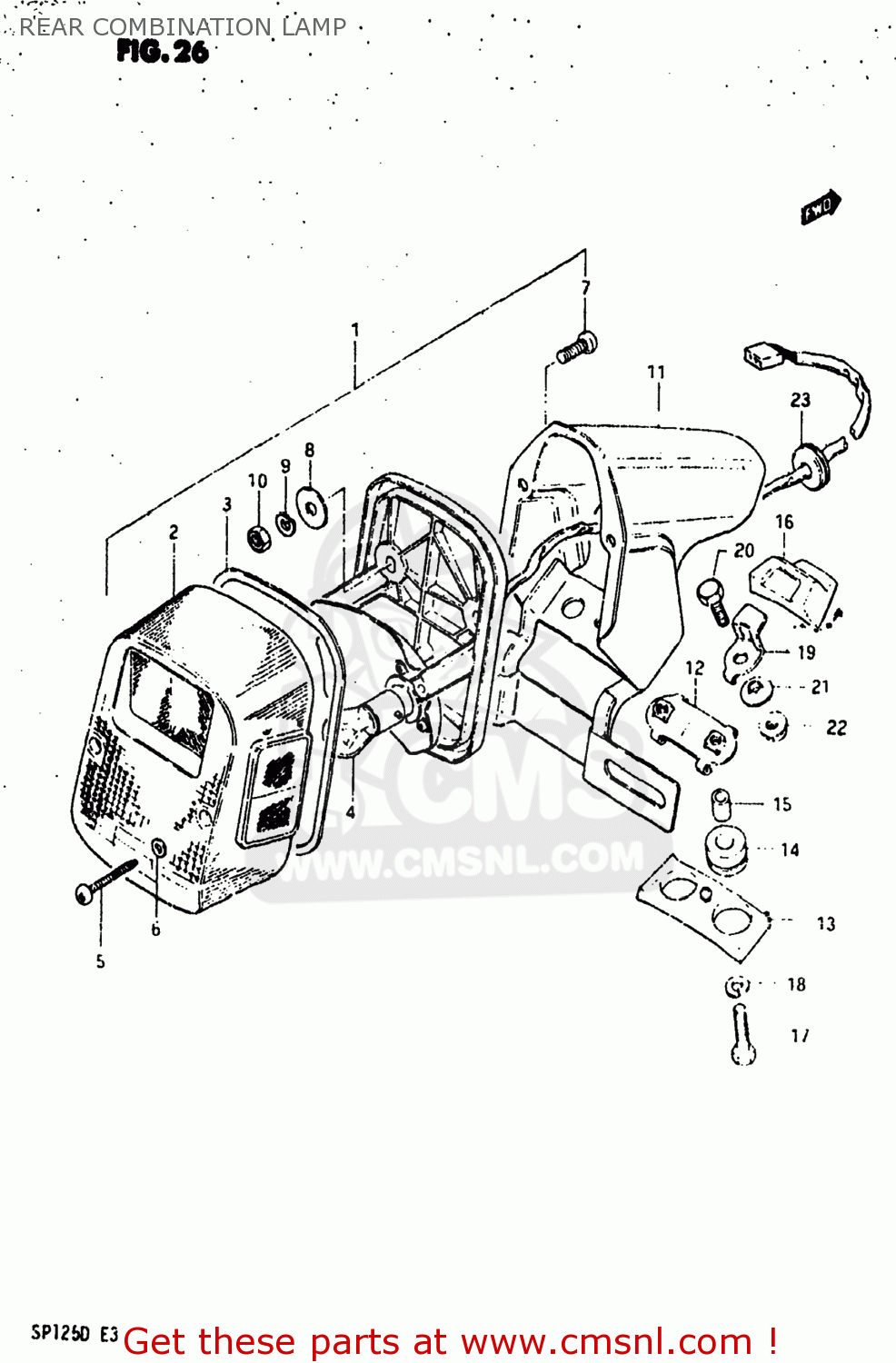

Rear combination lamp diagram SP125 1983 (D) USA (E03)
REAR COMBINATION LAMP SP125 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3572038230
ref: 1
LAMP UNIT,REAR COMBINATION
€ 0.00
2
3571238230
ref: 2
LENS
€ 46.50
3
3571338210
ref: 3
GASKET (NAS)
€ 4.50
4
0947106030
ref: 4
BULB(6V32/3CP,STANLEY)
€ 12.50
5
0321104258
ref: 5
03211-0425B
SCREW TAPP.
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0211205168
ref: 7
02112-05167
SCREW
€ 2.50
8
3572736510
ref: 8
35727-37410
WASHER,REAR COMBINATION LAMP
€ 2.00
9
0832121058
ref: 9
08321-0105A
LOCK WASHER
€ 2.00
10
0831011058
ref: 10
08310-00057
NUT
€ 2.50
11
3573038230
ref: 11
BRACKET UNIT,TAIL LAMP
€ 45.50
12
3571638210
ref: 12
PLATE
€ 11.50
13
3576538210
ref: 13
CUSHION
€ 3.50
14
3576530950
ref: 14
CUSHION
€ 18.00
15
3576638210
ref: 15
SPACER
€ 3.00
16
3571738210
ref: 16
CUSHION,REAR COMBINATION LAMP
€ 6.50
17
0110706258
ref: 17
01500-06257
BOLT
€ 2.00
18
0832121068
ref: 18
08321-01067
LOCK WASHER
€ 2.50
19
3579337201
ref: 19
PLATE,RR COMBINATION LAMP
€ 2.00
20
0110706168
ref: 20
01500-06167
BOLT, UPPER
€ 3.00
21
0916906025
ref: 21
09169-06010
WASHER,LOCK
€ 3.00
22
0831626066
ref: 22
08316-1006B
NUT
€ 2.00
23
0930809004
ref: 23
GROMMET
€ 0.00
