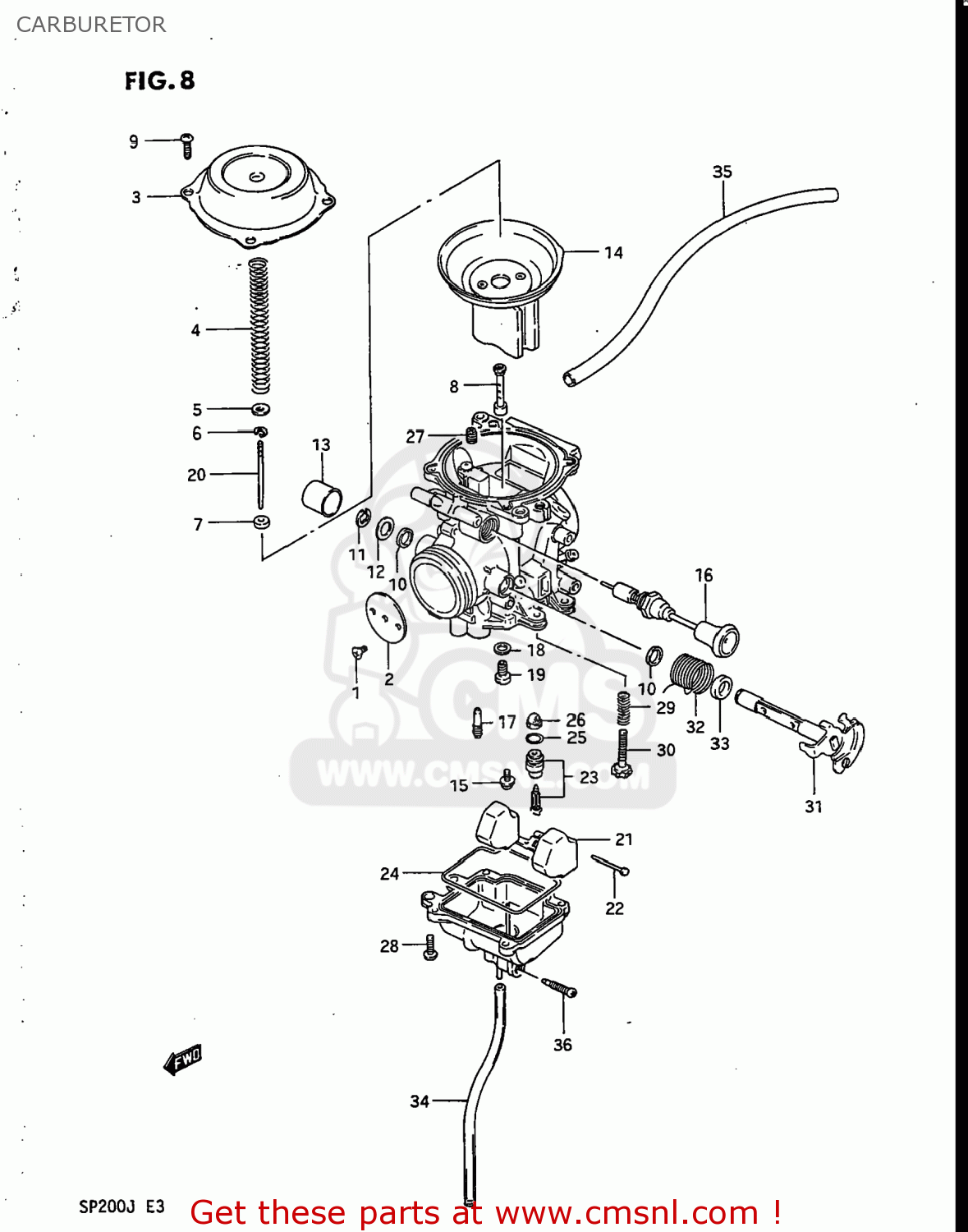

CARBURETOR

ref

part #

description

quantity

1320042A10
ref:

CARBURETOR ASSEMBLY (BS31)

€ 191.00

1

1360442A00
ref: 1
13604-44080

SCREW

€ 3.50

2

1355142A10
ref: 2

VALVE,THROTTLE

€ 0.00

3

1350242A00
ref: 3

COVER,DIAPHRAGM

€ 25.00

4

1341742A00
ref: 4

SPRING

€ 6.00

5

1338242A00
ref: 5

RING

€ 3.50

6

1341547070
ref: 6
13394-10010

CAP,LEVER

€ 4.50

7

1338747010
ref: 7

RING

€ 7.50

8

0949400512
ref: 8

JET,NEEDLE(P-4)

€ 15.00

9

0211204085
ref: 9
02112-0408A

SCREW

€ 2.00

10

1355644010
ref: 10
13556-05A10

SEAL

€ 3.50

11

1361744080
ref: 11

E RING

€ 3.50

12

1355747070
ref: 12

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

13

1357847070
ref: 13

CAP

€ 5.50

14

1350042A00
ref: 14

DIAPHRAGM ASSY

€ 123.00

15

1360243410
ref: 15

SCREW

€ 2.50

16

1341142A00
ref: 16
13411-42A20

PLUNGER ASSEMBLY

€ 26.50

17

0949240014
ref: 17

JET(40)

€ 8.50

18

1333244080
ref: 18
13382-03110

WASHER,NEEDLE NOZZLE

€ 2.50

19

0949124013
ref: 19

JET,MAIN(122.5)

€ 7.00

20

1338342A10
ref: 20

NEEDLE JET

€ 0.00

21

1325042A00
ref: 21

FLOAT

€ 27.00

22

1325492311
ref: 22

PIN,FLOAT

€ 2.00

23

1337042A10
ref: 23
13370-44500

VALVE ASSEMBLY,NEEDLE

€ 40.50

24

1325142A00
ref: 24

O RING,FLOAT CHAMBER

€ 7.50

25

6626399050
ref: 25
13374-35C00

O RING

€ 6.00

26

1337665010
ref: 26
13376-19F00

FILTER

€ 6.50

27

0949330003
ref: 27

JET,AIR(150)

€ 13.00

28

1360205A40
ref: 28
02112-0412A

SCREW

€ 1.50

29

1327144220
ref: 29
13268-37420

SPRING,THROTTLE ADJUST

€ 3.50

30

1326737100
ref: 30
13267-25D00

SCREW,THROTTLE STOP

€ 9.00

31

1355042A00
ref: 31

SHAFT ASSEMBLY,THROTTLE

€ 28.00

32

1357342A00
ref: 32

SPRING

€ 5.50

33

1357445120
ref: 33

RING

€ 2.50

34

1368444A00
ref: 34
09351-30503-600

HOSE

€ 6.50

35

1368422A00
ref: 35
44420-44AR0

HOSE

€ 13.00

36

1324713A00
ref: 36
13247-02340

SCREW,DRAIN

€ 5.50

all assemblies
