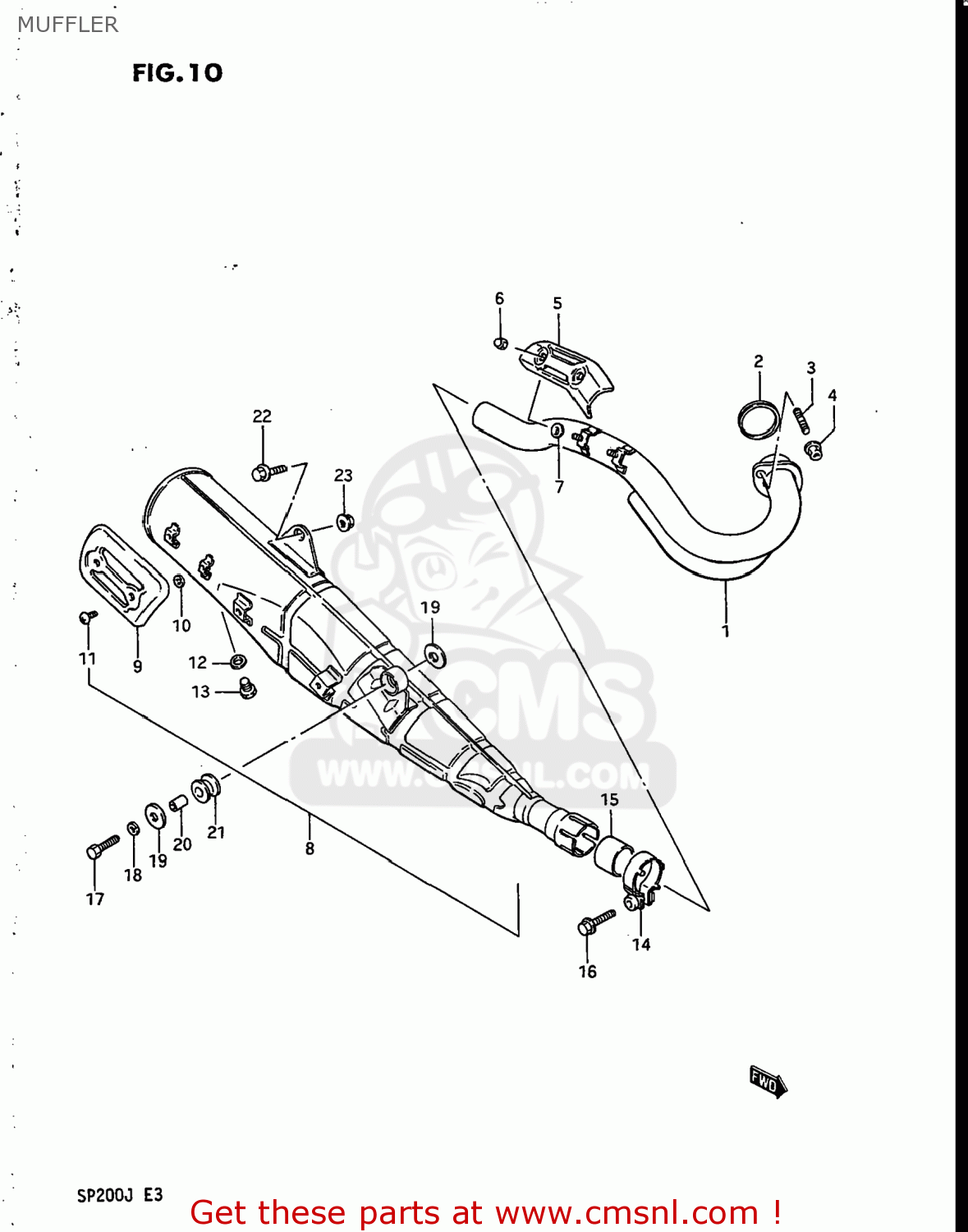

MUFFLER

ref

part #

description

quantity

1

1415042A01
ref: 1

PIPE COMP,EXHAUST

€ 79.00

2

1418112010
ref: 2
14181-42A00

GASKET,EXHAUST PIPE (NAS)

€ 8.50

3

0910808207
ref: 3

BOLT,STUD

€ 2.00

4

0831931085
ref: 4
08319-3108A

NUT

€ 2.50

5

1418642A01
ref: 5

COVER,EXHAUST PIPE

€ 12.50

6

0915906037
ref: 6
09159-06037-XC0

NUT (6MM)

€ 2.50

7

0916806022
ref: 7
09168-06122

GASKET (NAS)

€ 2.50

8

1430142A11H01
ref: 8

MUFFLER ASSEMBLY

€ 310.00

9

1478142A10
ref: 9

COVER,MUFFLER

€ 9.00

10

0916806020
ref: 10
09168-06120

GASKET (NAS)

€ 2.00

11

0214206104
ref: 11
02142-0610A

SCREW

€ 2.00

12

0916812002
ref: 12

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

13

0924712103
ref: 13

PLUG(12X9)

€ 3.50

14

1445905200
ref: 14
14459-44A00

CLAMP,MUFFLER CONNECTOR

€ 14.50

15

1477314201
ref: 15
14773-14202

GASKET,SECOND MUFFLER (NA) (NAS)

€ 12.00

16

0151708304
ref: 16
01550-0830A

BOLT

€ 3.00

17

0110708355
ref: 17
01500-0835B

BOLT

€ 3.50

18

0832121084
ref: 18
08321-0108A

WASHER,LOCK,8.

€ 2.50

19

0916008057
ref: 19
09160-08135

WASHER (8.5X20X1.6)

€ 2.00

20

0918008102
ref: 20
09180-08194

SPACER (8.6X12X17.5)

€ 3.00

21

0932012026
ref: 21
09320-12043

CUSHION

€ 8.00

22

0910308065
ref: 22

BOLT(8X25)

€ 3.50

23

0831616088
ref: 23
08316-10087

NUT

€ 2.50
