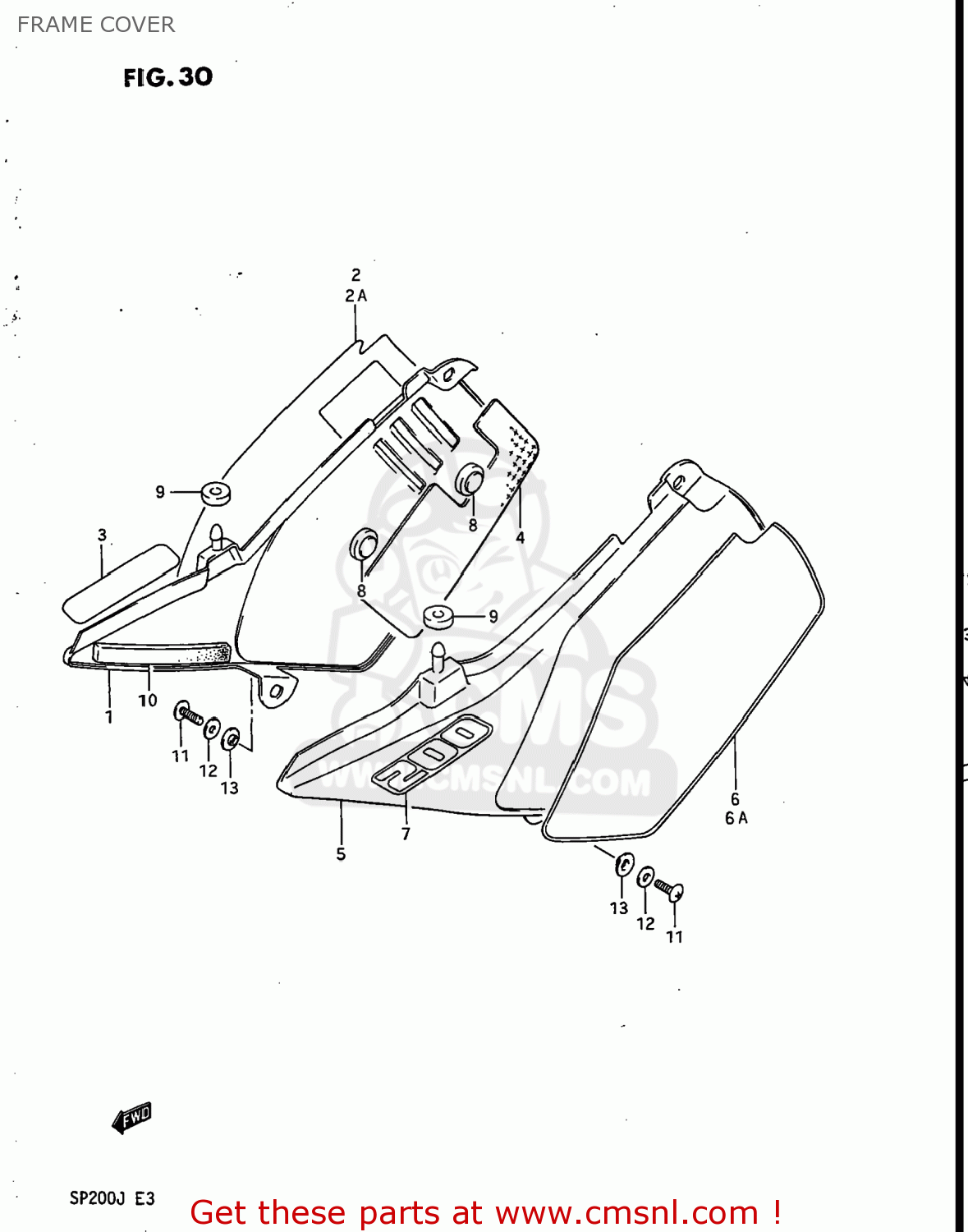

FRAME COVER

ref

part #

description

quantity

1-1

4711044A4014C
ref: 1-1

COVER,FRAME,RIGHT

€ 57.00

1-2

4711042A5014C
ref: 1-2
47110-42A00-13L

COVER,FRAME,RIGHT

€ 90.00

1-3

4711042A8014C
ref: 1-3

COVER,FRAME,RIGHT (RED)

€ 0.00

2A

6813544A10064
ref: 2A

TAPE,FRAME COVER,RIGHT (WHITE)

€ 23.00

2-1

6813044A2073K
ref: 2-1

TAPE SET,FRAME COVER,RIGHT

€ 0.00

2-2

6813044A2071Z
ref: 2-2

TAPE SET,FRAME COVER

€ 23.00

3

6813142A007AG
ref: 3

EMBLEM

€ 3.50

4

4716642A00
ref: 4
47166-42A01

SHIELD,FRAME COVER,RIGHT

€ 0.00

5-1

4721044A4014C
ref: 5-1
47211-42A00-13L

COVER,FRAME,LEFT

€ 75.50

5-2

4721042A5014C
ref: 5-2

COVER COMP,FRAME,LEFT

€ 61.00

5-3

4721042A8014C
ref: 5-3

COVER,FRAME,LEFT (RED)

€ 0.00

6A

6814544A10064
ref: 6A

TAPE,FRAME COVER,LEFT (WHITE)

€ 25.50

6-1

6814044A2073K
ref: 6-1

TAPE SET,FRAME COVER,LEFT

€ 24.50

6-2

6814044A2071Z
ref: 6-2

TAPE SET,FRAME COVER

€ 22.50

7

6813142A007AG
ref: 7

EMBLEM

€ 3.50

8

0932110018
ref: 8

CUSHION

€ 5.00

9

4716114A00
ref: 9

CUSHION,SIDE COVER BOSS

€ 2.50

10

4716142A00
ref: 10

CUSHION,FRAME COVER

€ 5.00

11

0214206164
ref: 11
02142-0616A

SCREW

€ 2.50

12

0916006039
ref: 12
09160-06109

WASHER (6.5X18X1.6)

€ 2.00

13

0916906028
ref: 13
09169-06041

WASHER

€ 2.00
