FOOTREST (SV1000K3/SK4/SK5)

SV1000S 2003 (K3) USA (E03)

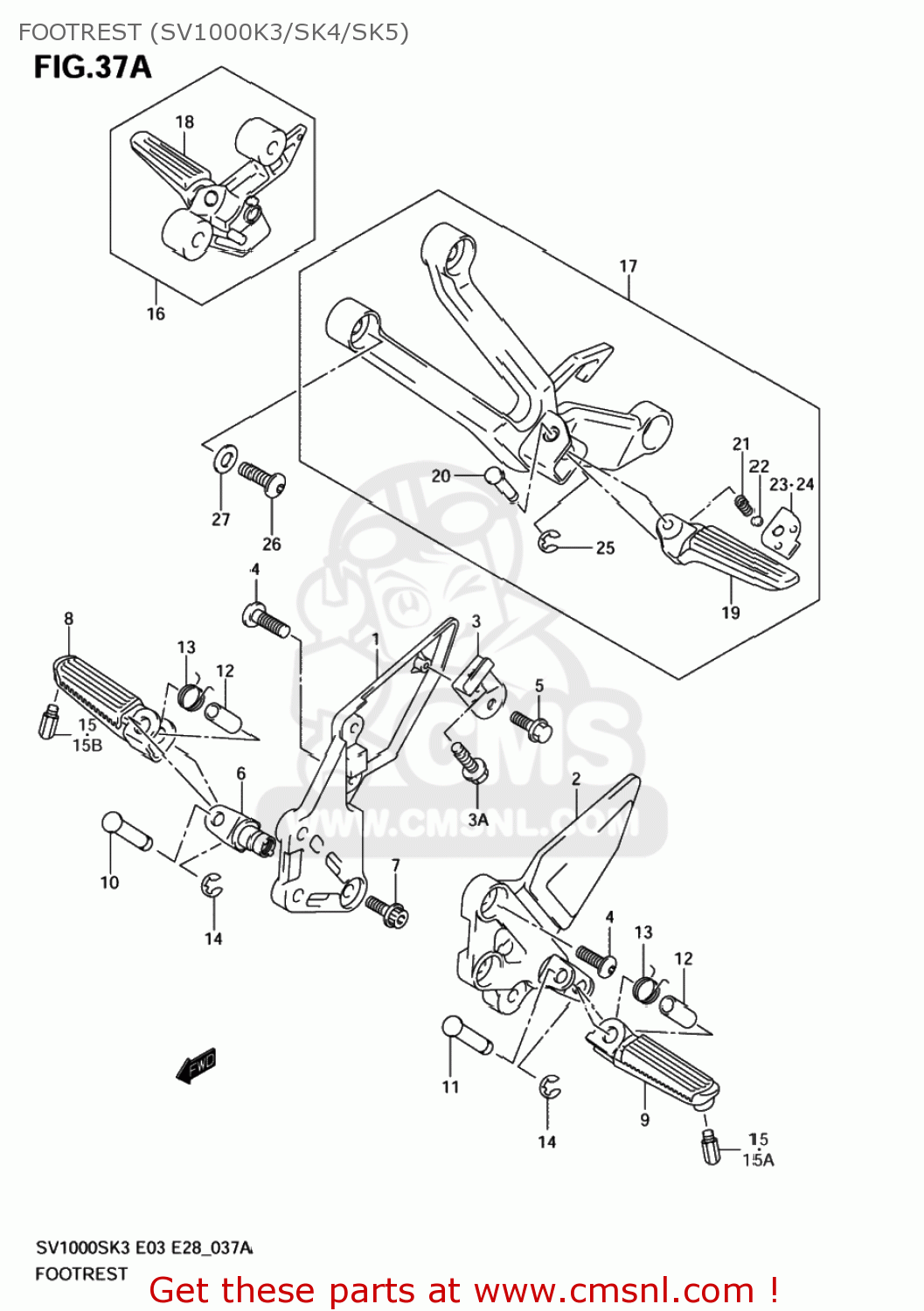

Footrest (sv1000k3/sk4/sk5) diagram SV1000S 2003 (K3) USA (E03)

FOOTREST (SV1000K3/SK4/SK5) SV1000S 2003 (K3) USA (E03)

FOOTREST (SV1000K3/SK4/SK5) SV1000S 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4351116G10
ref: 1-1

BRACKET,FR FOOTREST,R

€ 155.00

1-2

4351116G21
ref: 1-2

BRACKET,FR FOOTREST,R

€ 85.00

2-1

4352116G10
ref: 2-1

BRACKET,FR FOOTREST,L

€ 113.50

2-2

4352116G21
ref: 2-2

BRACKET,FR FOOTREST,L

€ 76.50

3

4357116G00
ref: 3

REINF,FOOTREST BRACKET

€ 14.50

3A

0155008203
ref: 3A
01550-0820A

BOLT

€ 3.00

4-1

0910608118
ref: 4-1
09106-08161

BOLT 8X20

€ 4.00

4-2

0910608167
ref: 4-2

BOLT(8X20)

€ 3.50

5

0155006103
ref: 5
01550-0610A

BOLT

€ 2.50

6

4353016G00
ref: 6

HOLDER,FOOTREST,R

€ 24.00

7

0910610064
ref: 7

BOLT(10X28)

€ 4.50

8

4351002F11
ref: 8

BAR,FR FOOTREST,R

€ 37.00

9

4352002F11
ref: 9

BAR,FR FOOTREST,L

€ 37.00

10

0920808014
ref: 10

PIN

€ 4.00

11

0920808016
ref: 11

PIN

€ 4.00

12

0918008149
ref: 12

SPACER(8.1X12X22)

€ 7.00

13

0944818022
ref: 13

SPRING

€ 3.50

14

0833211063
ref: 14
08332-1106A

E.RING

€ 2.00

15

4357648B02
ref: 15

BOLT,BANK SENSOR

€ 4.00

15A

4357648B20
ref: 15A

BOLT,BANK SENSOR

€ 8.00

15B

4357648B02
ref: 15B

BOLT,BANK SENSOR

€ 4.00

16-1

4360016G20
ref: 16-1

FOOTREST ASSY,PILLION,R

€ 145.50

16-2

4360016G30
ref: 16-2

FOOTREST ASSY,PILLION,R

€ 211.00

17-1

4370016G20
ref: 17-1

FOOTREST ASSY,PILLION,L

€ 145.50

17-2

4370016G30
ref: 17-2

FOOTREST ASSY,PILLION,L

€ 136.00

18

4361035F00
ref: 18

BAR,PILLION FOOTREST,R

€ 44.00

19

4362035F00
ref: 19

BAR,PILLION FOOTREST,L

€ 44.00

20

8725985510
ref: 20

PIN

€ 4.50

21

0944005005
ref: 21

SPRING

€ 1.50

22

0611107004
ref: 22

BALL

€ 1.50

23

4381633E21
ref: 23

PLATE,PILLION FOOT,R

€ 15.00

24

4382633E22
ref: 24

PLATE,PILLION FOOT,L

€ 15.00

25

0833211043
ref: 25
08332-1104A

E-RING

€ 2.00

26

0910608150
ref: 26

BOLT(8X23)

€ 3.50

27

0916408020
ref: 27

WASHER

€ 2.50
