SPEEDOMETER (SV1000K5) NOT FOR U.S. MARKET

SV1000S 2003 (K3) USA (E03)

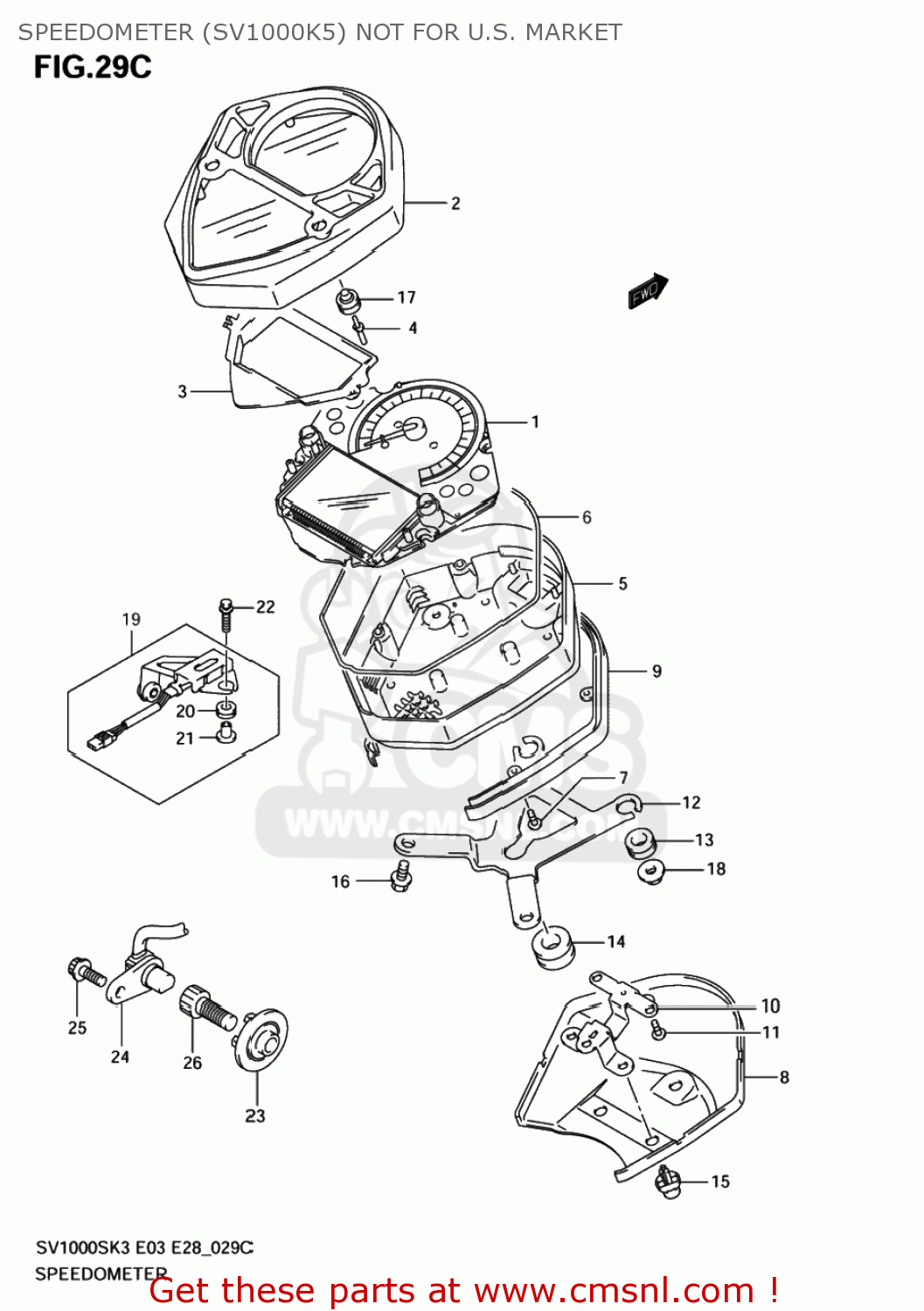

Speedometer (sv1000k5) not for u.s. market diagram SV1000S 2003 (K3) USA (E03)

SPEEDOMETER (SV1000K5) NOT FOR U.S. MARKET SV1000S 2003 (K3) USA (E03)

SPEEDOMETER (SV1000K5) NOT FOR U.S. MARKET SV1000S 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3412016G80
ref: 1

SPEEDOMETER

€ 0.00

2

3415016G30
ref: 2

CASE,SPEEDOMETER UPR

€ 174.50

3

3412516G00
ref: 3

PLATE,SPEEDOMETER

€ 10.50

4

3412416G00
ref: 4

KNOB,SPEEDOMETER

€ 6.00

5

3415216G00
ref: 5

CASE,SPEEDOMETER LWR

€ 49.00

6

3415316G00
ref: 6

GASKET,METER CASE (NAS)

€ 13.00

7

3418316G30
ref: 7

SCREW,SPEEDOMETER

€ 3.50

8

3415616G30
ref: 8

COVER,SPEEDOMETER LWR

€ 65.00

9

3415716G30
ref: 9

DECORATION PLATE,METER CASE

€ 75.50

10

3419516G30
ref: 10

HOLDER,SPEEDOMETER

€ 22.00

11

3414916B00
ref: 11

SCREW(4X14)

€ 2.00

12

3416216G40
ref: 12

BRACKET,SPEEDOMETER

€ 49.50

13

3499643410
ref: 13

CUSHION,METER

€ 3.00

14

3495513E00
ref: 14

CUSHION

€ 3.00

15

0940907332
ref: 15

CLIP

€ 3.00

16

0712006163
ref: 16
07120-0616B

BOLT MAGNETO S

€ 2.50

17

3412616G00
ref: 17

COVER,SPEEDOMETER KNOB

€ 7.50

18

0915905044
ref: 18
09159-05049

NUT

€ 1.50

19

3651016G00
ref: 19

RESISTOR ASSY

€ 94.50

20

0932010015
ref: 20

CUSHION

€ 2.50

21

0918006319
ref: 21

SPACER(6.5X10X11.6)

€ 3.50

22

0911606131
ref: 22

BOLT(6X25)

€ 2.00

23

3498135F00
ref: 23
34981-38G01

ROTOR,SPEED

€ 15.00

24

3499035F00
ref: 24

SENSOR,SPEED

€ 112.50

25

0712005123
ref: 25
07120-0512B

BOLT

€ 2.00

26

0713008253
ref: 26
07130-0825B

BOLT

€ 3.50
