FRAME

SV1000S 2003 (K3) USA (E03)

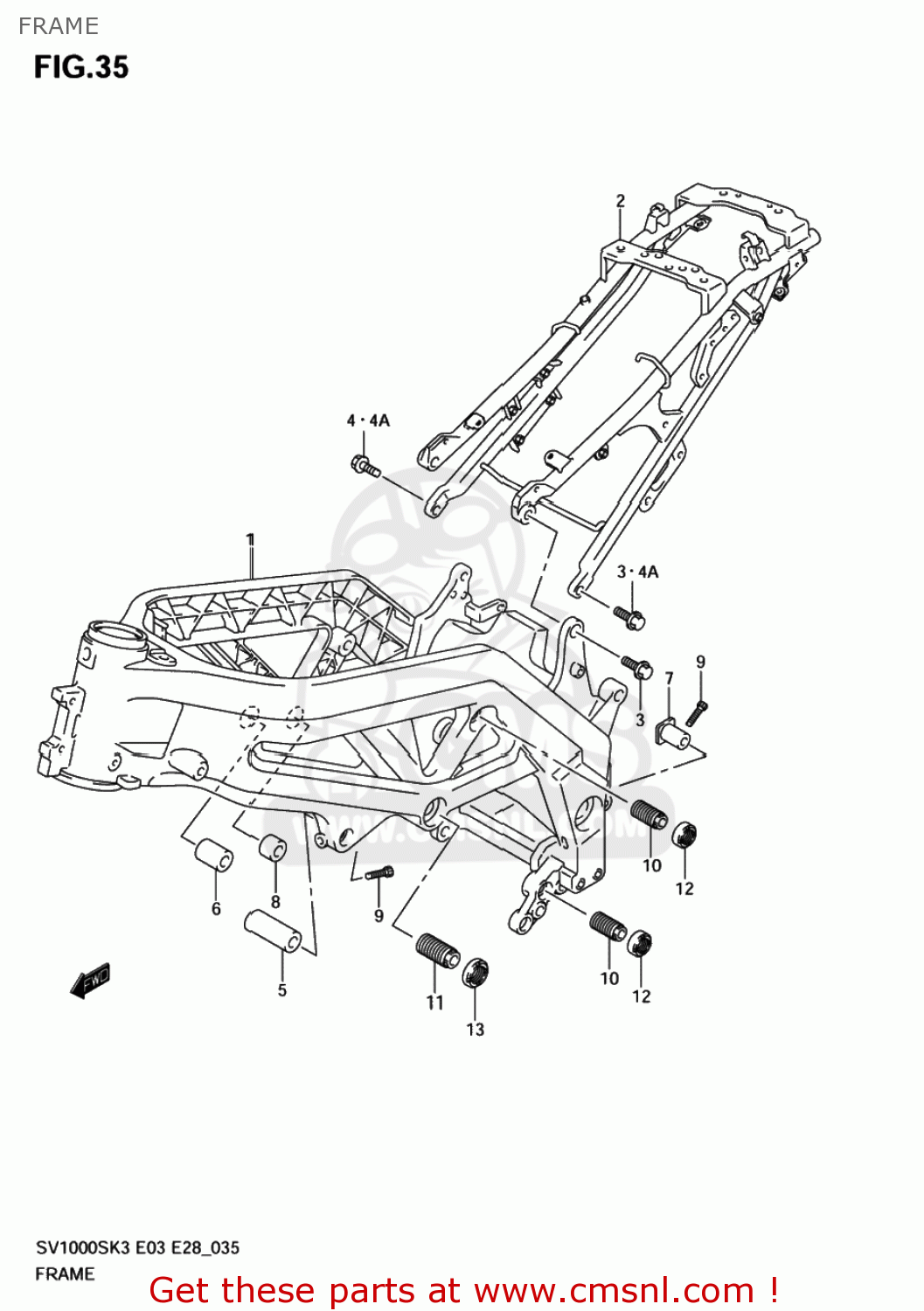

Frame diagram SV1000S 2003 (K3) USA (E03)

FRAME SV1000S 2003 (K3) USA (E03)

FRAME SV1000S 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4110016G00YBM
ref: 1-1

FRAME(SILVER)

€ 1,636.50

1-2

4110016G10YBM
ref: 1-2

FRAME (SILVER)

€ 2,312.00

1-4

4110016G20YBM
ref: 1-4

FRAME(SILVER)

€ 1,636.50

1-5

4110016G20YAP
ref: 1-5

FRAME(BLACK)

€ 1,636.50

2-1

4120016G00
ref: 2-1

RAIL,SEAT

€ 733.50

2-2

4120016G10
ref: 2-2

RAIL,SEAT

€ 736.00

2-3

4120016G30YAP
ref: 2-3
41200-16G31-YAP

SEAT RAIL

€ 694.00

3

0910310296
ref: 3

BOLT(10X30)

€ 6.00

4

4123316G00
ref: 4
41233-16G0V

BOLT, SEAT LOWER RH

€ 10.00

4A-1

4123335F00
ref: 4A-1
41233-35F0V

BOLT,SEAT RAIL

€ 9.50

4A-2

4123318G00
ref: 4A-2

BOLT,SEAT RAIL

€ 7.50

5

4119802F00
ref: 5

SPACER,ENG HEAD MTG FR,L

€ 31.50

6

4194102F00
ref: 6

SPACER,ENG HEAD MTG RR,R

€ 20.00

7

4194119F01
ref: 7

SPACER,MOUNTING RR UPR,R

€ 25.00

8

4194216G00
ref: 8

SPACER,ENG HEAD MTG CTR,R

€ 11.50

9

0910608149
ref: 9
09106-08170

BOLT

€ 3.00

10

4192116G00
ref: 10

BOLT,CASE LWR & RR HEAD ADJ

€ 10.50

11

4192316G00
ref: 11

BOLT,CRANK CASE ADJUST CTR

€ 19.00

12

4192233E00
ref: 12

NUT,CRANK CASE ADJUST BOLT

€ 18.50

13

4192219F00
ref: 13
41922-19F20

NUT,CRANKCASE ADJUST

€ 12.00
