RADIATOR

SV650 2000 (Y) USA (E03)

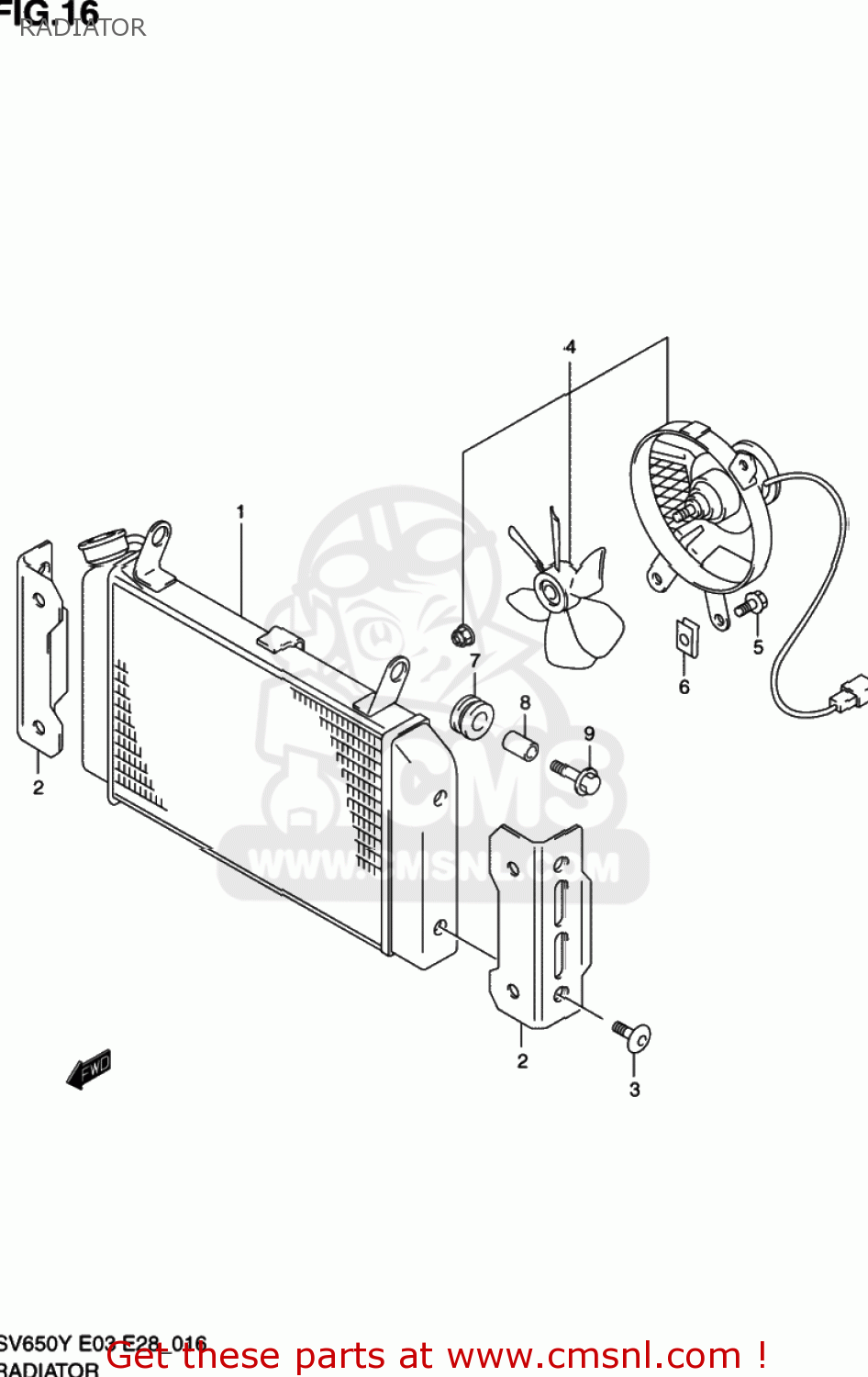

Radiator diagram SV650 2000 (Y) USA (E03)

RADIATOR SV650 2000 (Y) USA (E03)
RADIATOR SV650 2000 (Y) USA (E03)
RADIATOR SV650 2000 (Y) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1771019F10
ref: 1-1
RADIATOR ASSY,WATER
€ 819.00
1-2
1771019F00
ref: 1-2
RADIATOR ASSY,WATER
€ 789.00
2
1776119F00
ref: 2
COVER,RADIATOR
1776119F00
€ 37.50
3
0913906027
ref: 3
SCREW(6X12)
0913906027
€ 3.00
4
1780019F10
ref: 4
FAN ASSY,RADIATOR
€ 471.50
5
0155006103
ref: 5
01550-0610A
BOLT
0155006103
€ 2.50
6
0914806015
ref: 6
NUT
0914806015
€ 3.50
7
0932010042
ref: 7
CUSHION
0932010042
€ 4.00
8
0918006290
ref: 8
SPACER(6.5X10X12)
0918006290
€ 2.50
9
0911806097
ref: 9
BOLT(6X25)
0911806097
€ 2.50
