REAR FENDER
SV650 2000 (Y) USA (E03)

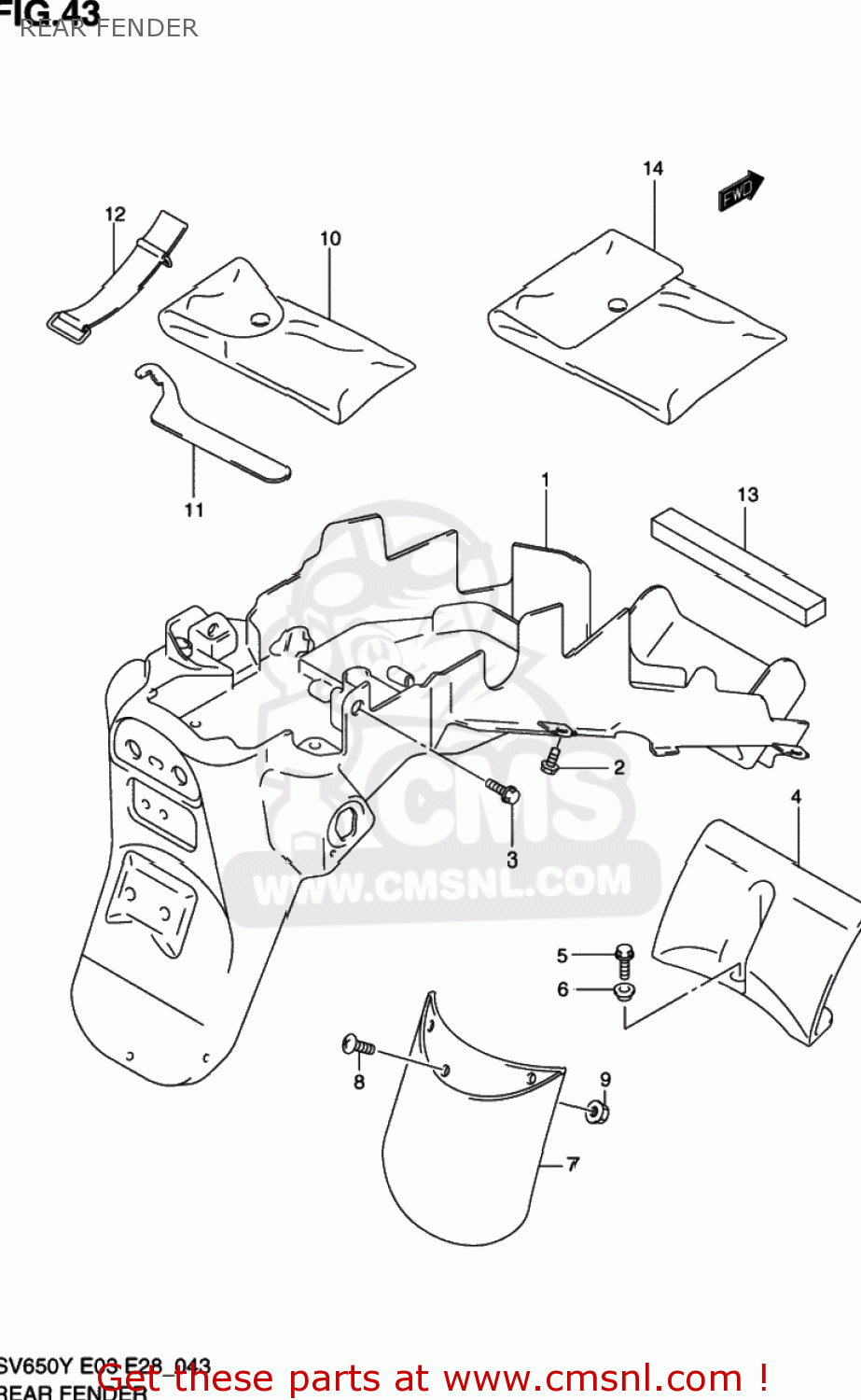

Rear fender diagram SV650 2000 (Y) USA (E03)
REAR FENDER SV650 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6311119F30
ref: 1-1
63111-19F31
FENDER,REAR
€ 110.00
1-2
6311119F31
ref: 1-2
FENDER,RR
€ 110.00
1-3
6311119F20
ref: 1-3
FENDER,REAR
€ 110.00
1-4
6311119F21
ref: 1-4
FENDER,RR
€ 110.00
2
0911606168
ref: 2
BOLT(6X16)
€ 2.50
3-1
0911106066
ref: 3-1
BOLT(6X16)
€ 2.50
3-2
0911306001
ref: 3-2
BOLT(6X16)
€ 3.00
4
6342119F00
ref: 4
MUDGUARD,RR FENDER FR LWR
€ 15.00
5-1
0155006163
ref: 5-1
01550-0616A
BOLT
€ 2.50
5-2
0216206163
ref: 5-2
02162-0616B
SCREW
€ 2.50
6
0916906071
ref: 6
WASHER
€ 2.50
7
6331119F10
ref: 7
EXTENSION,RR FENDER
€ 15.50
8
0214206103
ref: 8
02142-0610A
SCREW 6X10
€ 2.00
9
0914606003
ref: 9
NUT
€ 2.00
10
0980021008
ref: 10
TOOL ASSY
€ 74.50
11
0982200005
ref: 11
CLAMP
€ 22.00
12-1
4743502F00
ref: 12-1
47435-02F01
BAND,TOOL
€ 7.00
12-2
4743502F01
ref: 12-2
BAND,TOOL
€ 7.00
13
4716108F00
ref: 13
CUSHION,FRAME COVER
€ 6.00
14
9498042A00
ref: 14
BAG COMP,OWNERS MANUAL
€ 6.00
