STEERING STEM (SV650X/Y)
SV650 2000 (Y) USA (E03)

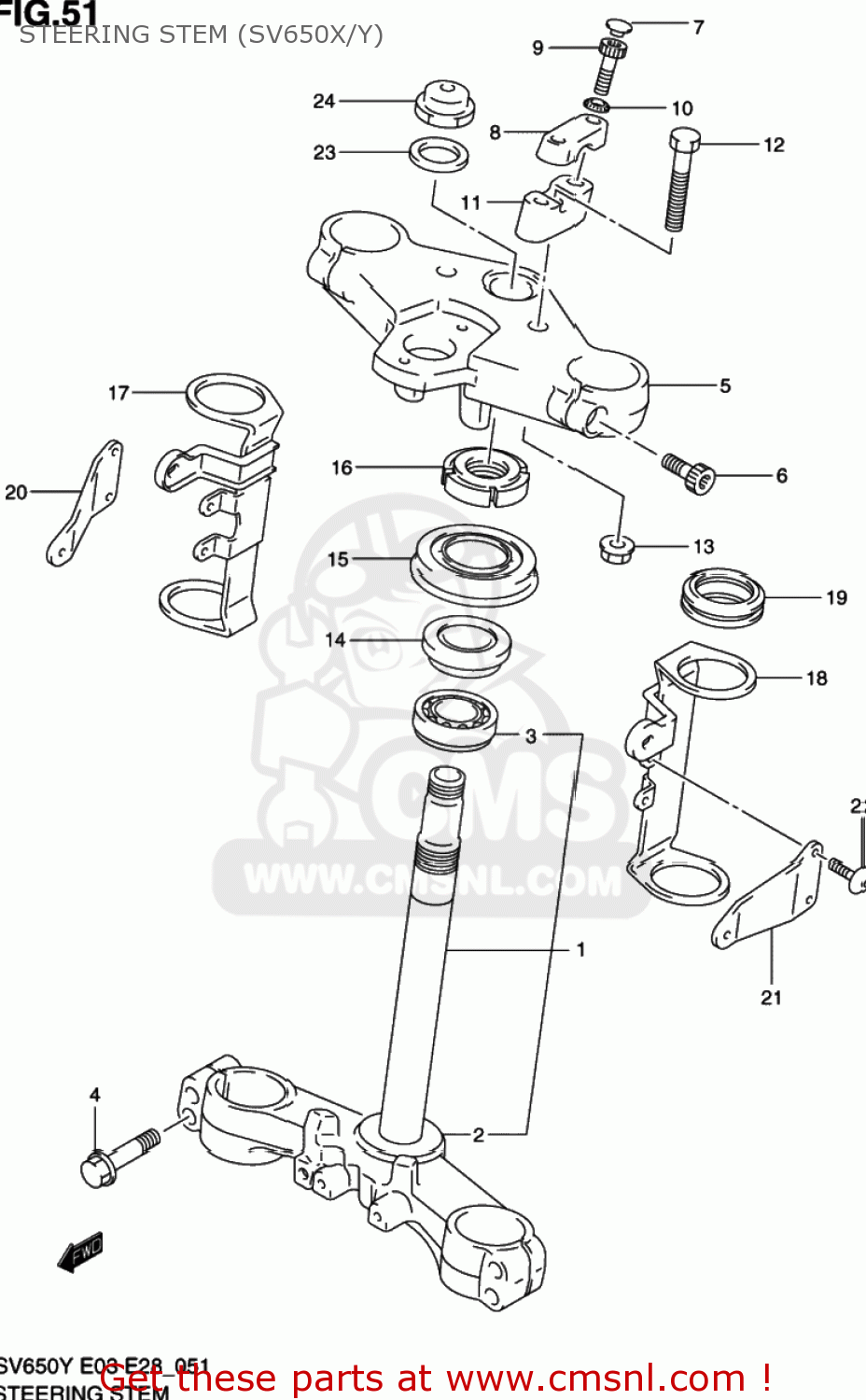

Steering stem (sv650x/y) diagram SV650 2000 (Y) USA (E03)
STEERING STEM (SV650X/Y) SV650 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141019F10
ref: 1
STEM,STEERING
€ 391.00
2
5164412C00
ref: 2
SEAL,STEERING LWR
€ 5.50
3
0926730010
ref: 3
BEARING(30X55X17)
€ 46.50
4
0155008407
ref: 4
BOLT
€ 3.50
5
5131119F10
ref: 5
HEAD,STEERING STEM
€ 408.50
6
5132803FA0
ref: 6
BOLT(8X32)
€ 3.00
7
0925006011
ref: 7
CAP(OD:11)
€ 2.50
8
5621145C50
ref: 8
HOLDER,HANDLE UPR
€ 34.50
9
0713008307
ref: 9
BOLT
€ 4.50
10
0916408015
ref: 10
WASHER
€ 3.00
11
5622103FA0
ref: 11
HOLDER,HANDLE LWR
€ 77.50
12
5132103FA0
ref: 12
BOLT,LWR HOLDER(10X45)
€ 6.00
13
0831931107
ref: 13
NUT
€ 3.00
14
0926725009
ref: 14
BEARING(25X47X15)
€ 40.00
15
0928534009
ref: 15
SEAL,OIL(34X69X11.9)
€ 16.50
16
5163128000
ref: 16
NUT,STEERING STEM(25X44X10)
€ 12.50
17
5153019F00
ref: 17
51530-19F10
BRACKET COMP,HEADLAMP
€ 47.00
18
5154019F00
ref: 18
51540-19F10
BRACKET COMP,HEADLAMP
€ 45.50
19
5155338C00
ref: 19
DAMPER,HEADLAMP HSG BRACKET
€ 8.50
20
5185119F00
ref: 20
STAY,HEADLAMP HOUSING,R
€ 58.50
21
5186119F00
ref: 21
STAY,HEADLAMP HOUSING,L
€ 56.00
22
0913906027
ref: 22
SCREW(6X12)
€ 3.00
23
5135610D03
ref: 23
WASHER(22.5X35.9X1.6)
€ 3.00
24
5135328A10
ref: 24
NUT
€ 30.00
