Buy Suzuki SV Parts Online


FRONT BRAKE HOSE

SV650 2002 (K2) USA (E03)

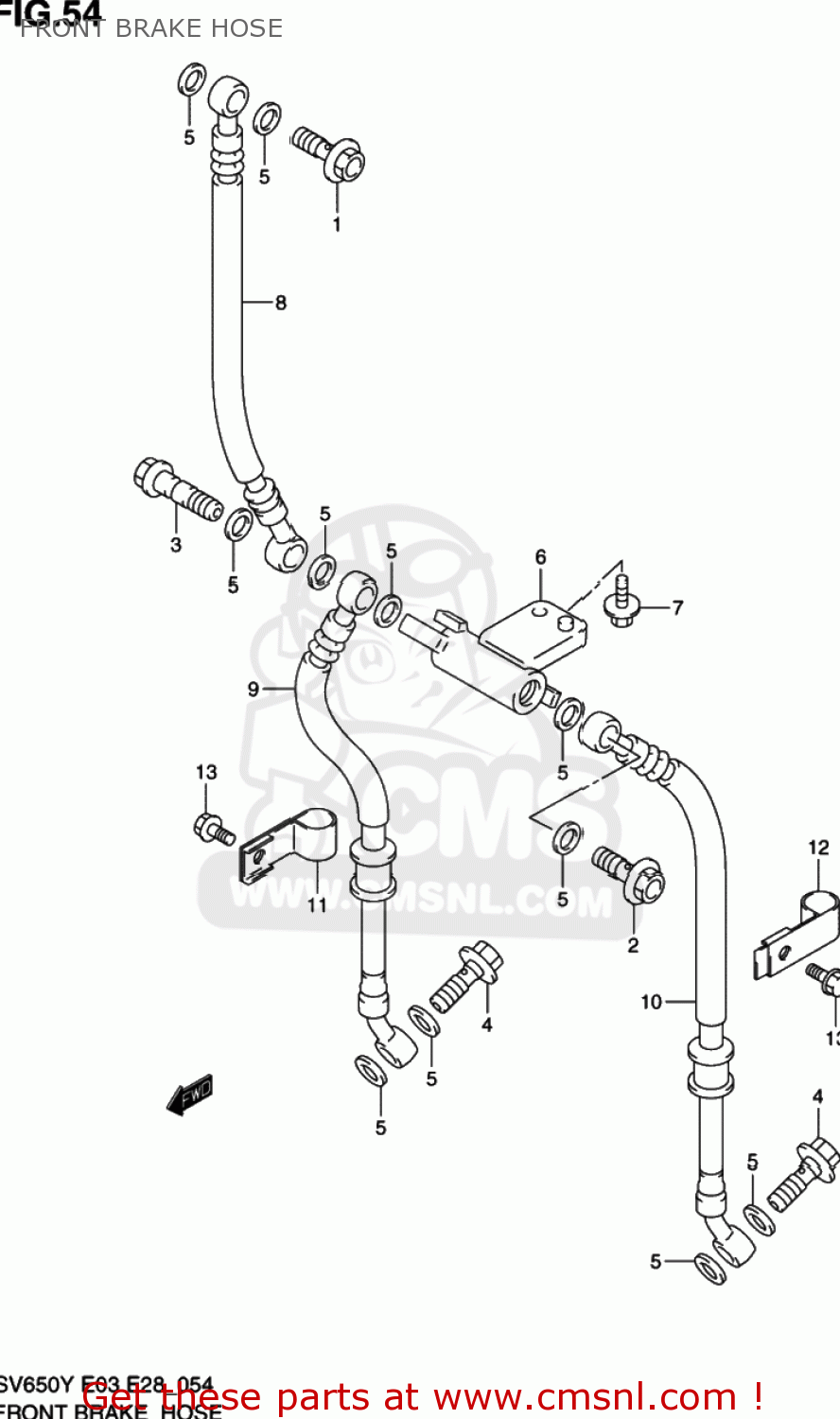

Front brake hose diagram SV650 2002 (K2) USA (E03)

FRONT BRAKE HOSE SV650 2002 (K2) USA (E03)
FRONT BRAKE HOSE SV650 2002 (K2) USA (E03)
FRONT BRAKE HOSE SV650 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
0936010041
ref: 1
09360-10061
BOLT UNION
€ 6.50
2
0936010041
ref: 2
09360-10061
BOLT UNION
€ 6.50
3
0936010043
ref: 3
09360-10063
BOLT UNION
€ 6.50
4
0936010042
ref: 4
09360-10062
BOLT UNION
0936010042
€ 5.00
5
0916110009
ref: 5
WASHER(10X15X1.5)
0916110009
€ 2.00
6
5949117E00
ref: 6
JOINT,BRAKE HOSE
5949117E00
€ 68.50
7
0155006163
ref: 7
01550-0616A
BOLT
0155006163
€ 2.50
8-1
5948020F10
ref: 8-1
59480-20F11
HOSE COMP,FRONT BRAKE
€ 55.00
8-2
5948020F00
ref: 8-2
59480-20F01
HOSE, FRONT BRAKE NO.1
€ 54.50
9
5924020F00
ref: 9
59240-20F01
HOSE COMP,FRONT BRAKE
€ 34.50
10
5944020F00
ref: 10
59440-20F01
HOSE COMP,FRONT BRAKE
5944020F00
€ 52.50
11
5926845D00
ref: 11
CLAMP,FR BRAKE HOSE NO.2
5926845D00
€ 9.00
12
5926920F00
ref: 12
CLAMP,FR BRAKE HOSE NO.2,L
5926920F00
€ 9.00
13
0155006123
ref: 13
01550-0612A
BOLT
0155006123
€ 2.50
