HEADLAMP (SV650SX/SY/SK1/SK2)
SV650 2002 (K2) USA (E03)

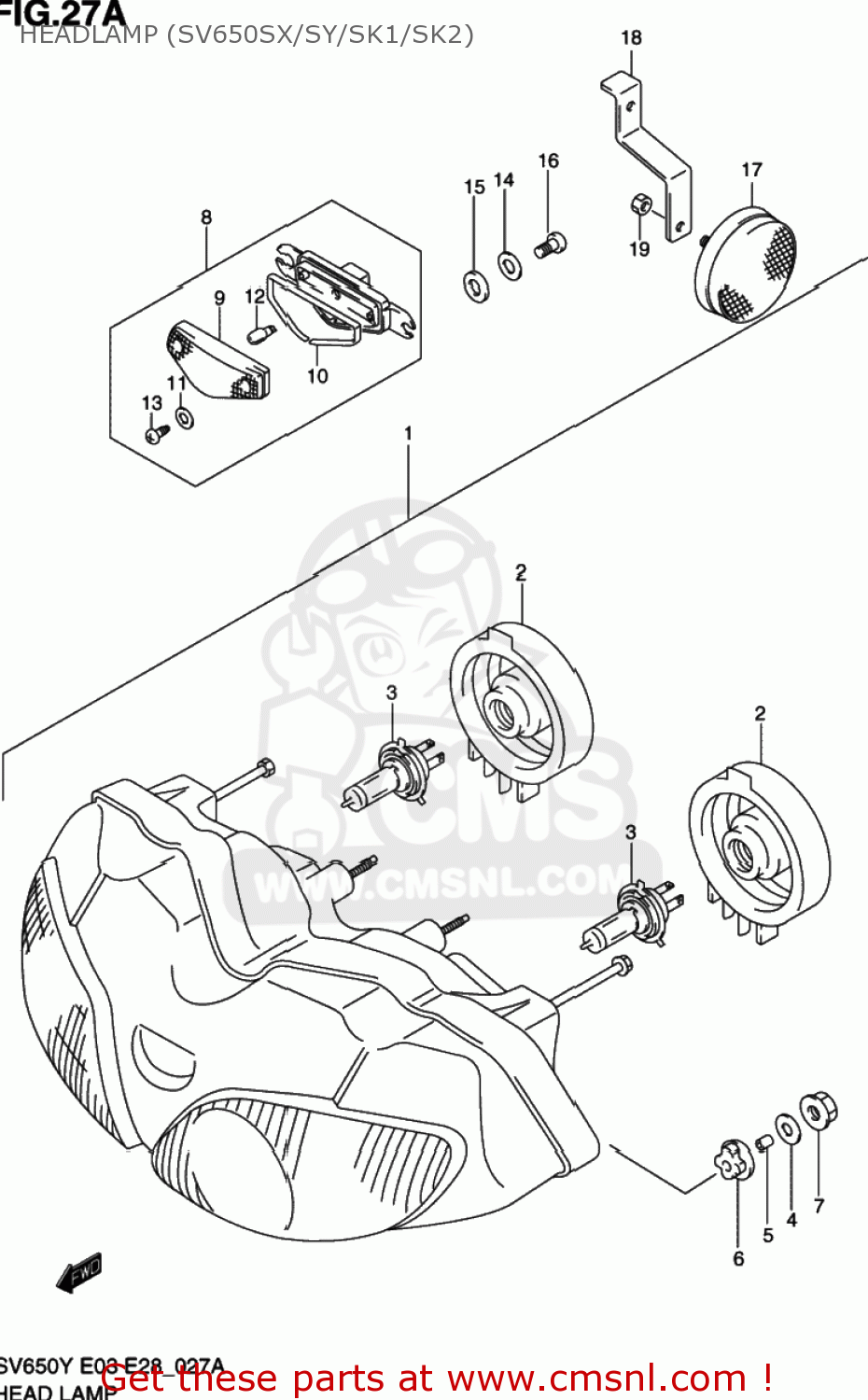

Headlamp (sv650sx/sy/sk1/sk2) diagram SV650 2002 (K2) USA (E03)
HEADLAMP (SV650SX/SY/SK1/SK2) SV650 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510020F30999
ref: 1
HEADLAMP ASSY
€ 316.00
2
3512502F00
ref: 2
COVER,SOCKET
€ 14.00
3
0947112102
ref: 3
BULB 12V 45/45W BF130-0
€ 52.50
4-1
0916006088
ref: 4-1
WASHER(6.5X20X1.6)
€ 2.00
4-2
0916006109
ref: 4-2
WASHER(6.5X18X1.6)
€ 2.00
5
0918006267
ref: 5
SPACER(6.5X9X12.5)
€ 3.00
6
0932009010
ref: 6
CUSHION
€ 2.50
7
0831610063
ref: 7
08316-1006B
NUT
€ 2.50
8
3611020F00
ref: 8
LAMP ASSY,FR POSITION
€ 54.00
9
3611208F00
ref: 9
LENS
€ 9.50
10
3611320F00
ref: 10
GASKET (NAS)
€ 4.50
11-1
3611708F00
ref: 11-1
35128-37B00
WASHER
€ 3.50
11-2
3512837B00
ref: 11-2
WASHER
€ 3.50
12
0947112081
ref: 12
BULB(12V5W)
€ 1.50
13
0321104123
ref: 13
03211-0412A
SCREW
€ 1.50
14
0916005045
ref: 14
WASHER(5.5X18X1)
€ 2.00
15
0932008001
ref: 15
CUSHION
€ 3.50
16
0351105103
ref: 16
03511-0510A
SCREW
€ 2.00
17
3595014A00
ref: 17
REFLECTOR,REFLEX FR
€ 15.00
18
3595619F00
ref: 18
BRACKET,FR SIDE RR
€ 0.00
19
0831000053
ref: 19
08310-0005A
NUT
€ 2.50
